| Prod Model: |
G200 +JT606X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Generator Monitoring Solution |
| Size: |
121*82*29mm |
| Weight: |
820g |
| Battery: |
400mAh |
| Input Voltage: |
9~32V |
| Backup Battery: |
400mA |
| Housing: |
Aluminum Case |
| Operational Temperature: |
-25~70 Centigrade |
Product Description

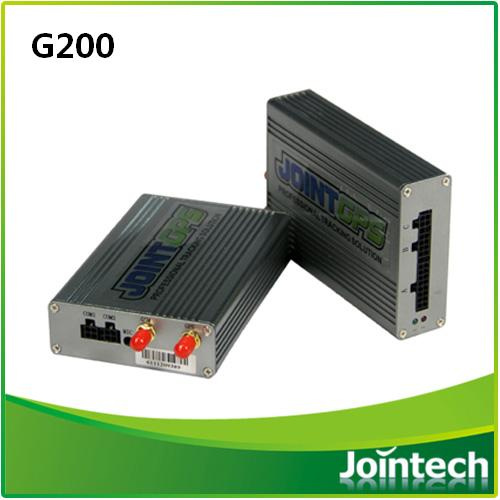

Generator monitoring system with fuel consumption sensor
Generator controller: G200
Introduction:
G200 can be used to remotely monitor the generator or genset. It has 2 RS232 port which can connect fuel level sensor to support generator fuel consumption and anti fuel theft.
Features
1. Low power consumption, wide voltage input design, automatic-restoration and protections against short circuit and high voltage ;
2. Real time upload working status data of generator sets ;
3. Remotely turn on /off generator sets;
4. Fuel consumption remote monitoring
5. Alarm when the fuel level and pressure is abnormal
6. Support multi-language SMS alarm;
7. OTA
Specifications:
| Type | Description |
| Basic Function | TCP/SMS Transmission Mode |
| Data automatic upload | Time interval |
| Alarm kinds | GPRS/SMS/Email |
| Blind area data supplementary uploading |
| Build-in backup battery |
| Support External | 1 x UART TTL/Upgrade/Configuration 2 x RS-232 (can be converted to RS-485), support connect to generator |
| Device | Note: Terminal provide 5V/500mA to external equipment |
| I/O port | Can be customized |
Data transmission mode | It supports SMS,GPRS,UART/TTL |
| VIP Numbers | Support 5 x VIP Numbers, it can set the parametersremotely and receive alarms. |
Require Current Information | Obligate |
| Language | Support multi-language |
| Cold-Start | Support starting remotly |
| Built-in Watchdog | Program re-start abnormally |
| Mechanical & Environmental | Dimensions(LxWxH) | 121X82X29cm |
| Weight | 820g(Including standard acessories) |
| Housing | Aluminum case |
| Operational Temperature | -25~70 centigrade |
| Storage Temperature | -40~80 centigrade |
| Power Consumption | 60mA-100mA |
| Backup Power | 8.4V 400mAh Ni-MH battery |
| Input Voltage | 9~32V |
|
|
|
|
|
