| Prod Model: |
CDY30KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator: |

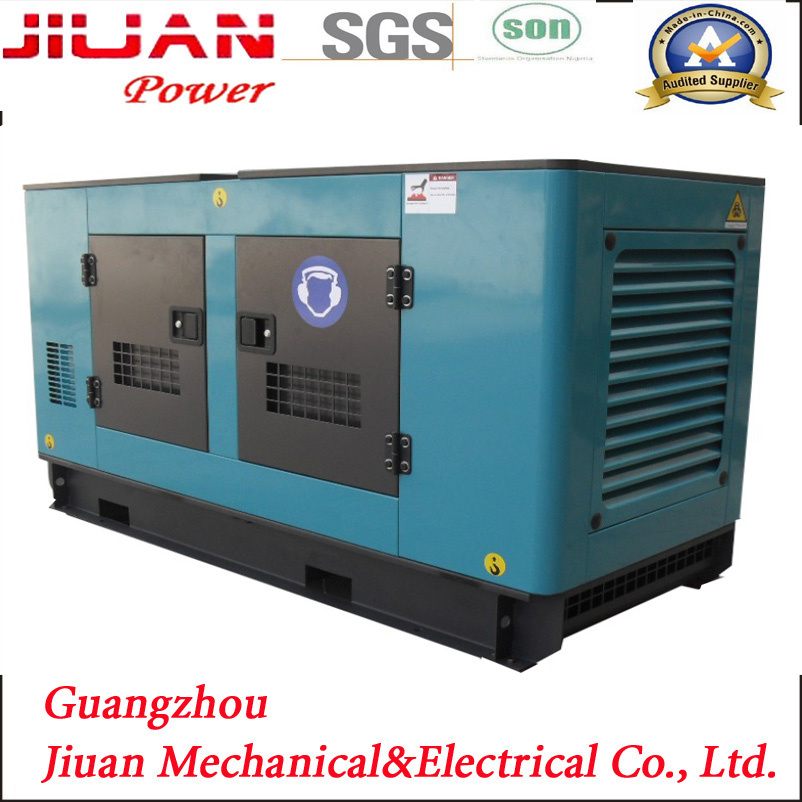

30kVA Silent Generator |
| Generator Engine: |
Y4100g |
| Alternator Model: |
Stamford |
| Generator Cylinders: |
4 |
| Generator Fuel Consumption: |
<2.62g/Kw.Hr |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Professional generator OEM in Guanghzou
Stock available
CUMMINS, PERKINS, YANGDONG
SGS Soncap
· 50Hz@1500rpm or 60Hz@1800rpm all are available
· AVR delivers non fluctuating power
· Panel type digital control panel
· 12 Volt / 24 Volt electric starter ensures easy starting
· Low oil pressure shut down system
· Low fuel cut out protection
· Low water cut out engine protection
· Enclosed structure ensures quieter operation
· Alternator (Dynamo) excitation mode brushless self excitation
· Three-phase output meets differing requirements
· Four Cylinder, four stroke, water cooled diesel engine
· 8 hours running @ full load on a single tank of fuel
· Dual access doors for easy maintenance
· Optional automatic or manual transfer switches available
· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers
· Noise Level (65-70dBA @ 7m)
· All ratings are at sea level
10kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA available
| 10kva Silent generator |
Generator
Specifications | Generator Model | CDY-30KVA |
| Generator Prime Power | 30KVA |
| Generator Engine Model | Y4100G |
| Generator Alternator | Stamford;Marathon; |
| Canopy for Choice | silent |
| Controller | Smartgen |
| Dimensions (L*W*H) | 1800*960*1100 |
| 20FT/40HQFT Container | 2PCS/4PCS |
| Generator Warranty | 1800 hours or 1 year subject to the earlier one. |
| Generator MOQ | 1PCS |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
| Payment | T/T or Cash |
| Please give detail needs in your inquiry, so that we can make power solutions for you. |
Diesel Generating Set –Model: CDY-30KVA
| Generator Set Model | CDY-30kva |
| Generator Set Power | 24kw/30kva |
| Generator Powered by YANGDONG Engine |
| Diesel Engine Model | Y4100G |
| Engine Characters | Water-cooled, in line, 4-cycle, direct injection, 1500rpm |
| Bore x Stroke (mm) | 90x100 |
| Rated Output | 30kw/38kva |
| Fuel Consumption (g/kw.hr) | 262 |
| Lube Consumption (g/kw.hr) | 2.72 |
| Compression Ratio | 18 |
| Starting | Electric (12V) |
| ALTERNATOR MODEL | LEADTECH 184G |
| Rated Power | 25kw/31kva brushless with AVR |
| Voltage (V) | 220/380V 230/400V 240/415V 127/220V |
| Current (A) | 28 |
| Frequency (Hz) | 50 |
| Power Factor (cos) | 0.8 |
| Brush/Brushless | Brushless |
| Dimensions (LxWxH) mm | S: 1800x960x1100 |
| Gross Weight (KGS) | 600 |
| 20FT | 12 PCS |
| Controller | Smartgen 6110 or Deepsea 7320 |
| Standard | Muffler |
| Battery 80A*1 |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
