| Prod Model: |
GF2-80KW |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
Product Description

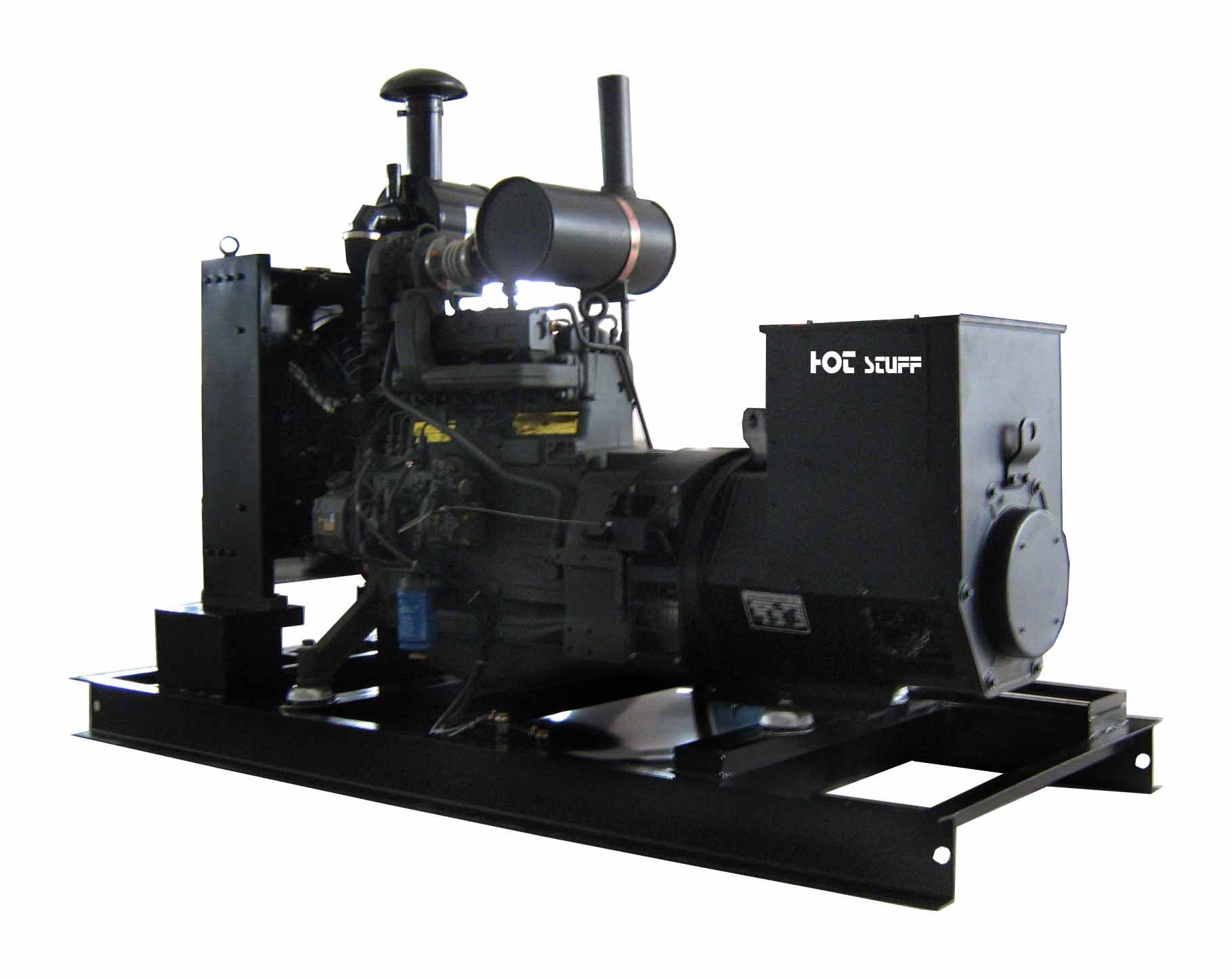

Big generator, optional engine: Weifang engine, cummins, deutz engine and so on brand engine. Optional functions: ATS, remote control and so on functions
|
MODEL |
GF2-80KW/100kva |
|
Powered by Deutz Engine |
|
Continuous Power (50HZ/60HZ) |
80KW/100KVA |
|
Standby Power (50HZ/60HZ) |
85KW/106KVA |
|
Engine Model |
TD226B – 6D |
|
Engine Power (50HZ) |
90KW |
|
Engine Manufacturer |
Sino-Germany joint venture Weichai – Deutz Co., Ltd |
|
Speed |
1500rpm/1800rpm |
|
Fuel Consumption |
≤ 205 g/kw. h |
|
Lubricating Oil Consumption |
≤ 1.36 g/kw. h |
|
100% Load Fuel Consumption |
20.8 Lwhen continuous power |
|
22.7 Lwhen standby power |
|
Cooling Method |
Water - cooled |
|
Starting Method |
24V DC electrical start |
|
Engine Total Dispalecment |
6.23 L |
|
Compress Ratio |
16: 1 |
|
Bore X Stroke |
105 x 120 mm |
|
Alternator Model |
Stamford copy 274C |
|
Alternator Power |
80KW/100KVA |
|
Voltage |
380/220V |
|
Electric Current |
140A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
Insulation Class/Protection Grade |
H Class/IP23 |
|
G. W |
1900 KGS |
|
Overall Size |
2820x1230x1660 MM |
|
20FT |
4 PCS |
|
OPTIONAL |
ATS(AUTO TRANFORE SWITCH) |
|
|
Auto Battery Charger |
|
|
Base fuel tank (for open type) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
