Product Description
Product Description

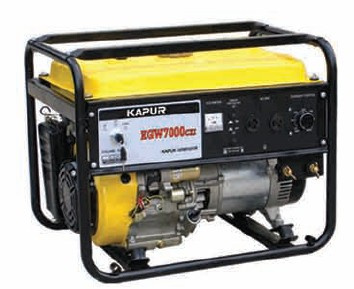

Gasoline welding Generators 180A
*Welding voltage: 25-30v
*Rated current: 160A
*Electrode φ Mm: 1.6-4.0
*Automatic air bleeding mechanism
*AC Voltmeter
*DC Output*
AC Circuit Breakers
*DC Fuse Protection
*Full-power Switch on Dual Voltage
*Extra Large Fuel Tank with FuelGauge
*Large Capacity Silent Muffler
Optional Equipped
*Low Oil Shut Down
*4-wheel Kit
*Electric Starter*Battery
*Remote start function
CL: Large Fuel Tank/Control Panel
* CX: Large fuel tank / Control Panel / Low Oil Shut Down
* E: Electric Start
* W: Welding Generator
|
ated frequency (Hz) |
50 60 |
|
Rated power(kW) |
5.0 5.5 |
|
Rated voltage (V) |
230 240/120 |
|
Rated current (A) |
21.7 23/45.8 |
|
No.of phase |
Single |
|
Power factor (cosφ) |
1.0 |
|
Weldling voltage at zero load (DC)(V) |
60-70 |
|
Rated weldling current DC(A) |
160 |
|
weldling voltage(DC)(V) |
25-30 |
|
Weldling load continous ratio |
60% |
|
Weldlig current adjustment range(A) |
50-190 |
|
Electrode φ(mm) |
1.6-4.0 |
|
Rated speed (r/min) |
3000 3600 |
|
Excitation mode |
Self-excitation and constant voltage (AVR) |
|
Recifying mode |
IGBT+three-phase rectifying bridge (PWM) |
|
Insulation grade |
F |
|
Pole number |
2 |
|
Engine Model |
BG390 |
|
Engine type |
Single-cyinder,four-stroke,OHV,air-cooled |
|
Cylinder NO,-bore×stroke(mm) |
1-88×64 |
|
Displacement |
389 |
|
Rated power[kW(Hp)/(r/min)] |
7.0/3000 7.7/3600 |
|
Compression ratio |
8.5:1 |
|
Rated rotation speed |
3000 3600 |
|
lgnition system |
T.C.I |
|
Cooling system |
Air cooled |
|
Lubrication system |
Splash |
|
Starting system |
X:Recoil starter E:Electric starter |
|
Fuel type |
Automotive unleaded gasoline |
|
Lube oil Brand |
CDgrade or SAE10W-30,15W-40 |
|
Capacity of cooling Water(L) |
Without |
|
Lube capacity (L) |
1.1 |
|
Starting motor capacity (V-kW) |
12V 0.4kW |
Fuzhou Kapur Power Equipment Co., Ltd. is a professional manufacturer of diesel/gasoline engines, generators, water pumps, fire pumps, seawater pumps, portable light towers with diesel gensets, air compressors and other power products. We have a 8000m2 workshop and 180 staffs and can produce over 300000 sets of equipments every year. Except ISO9000, KAPUR also obtained CE, EPA, SONCAP certificates for the main products. Our 90% products are exported to America, Europe and other area in the world.
