Product Description
KGY series
Model
KGY5500CX(E)

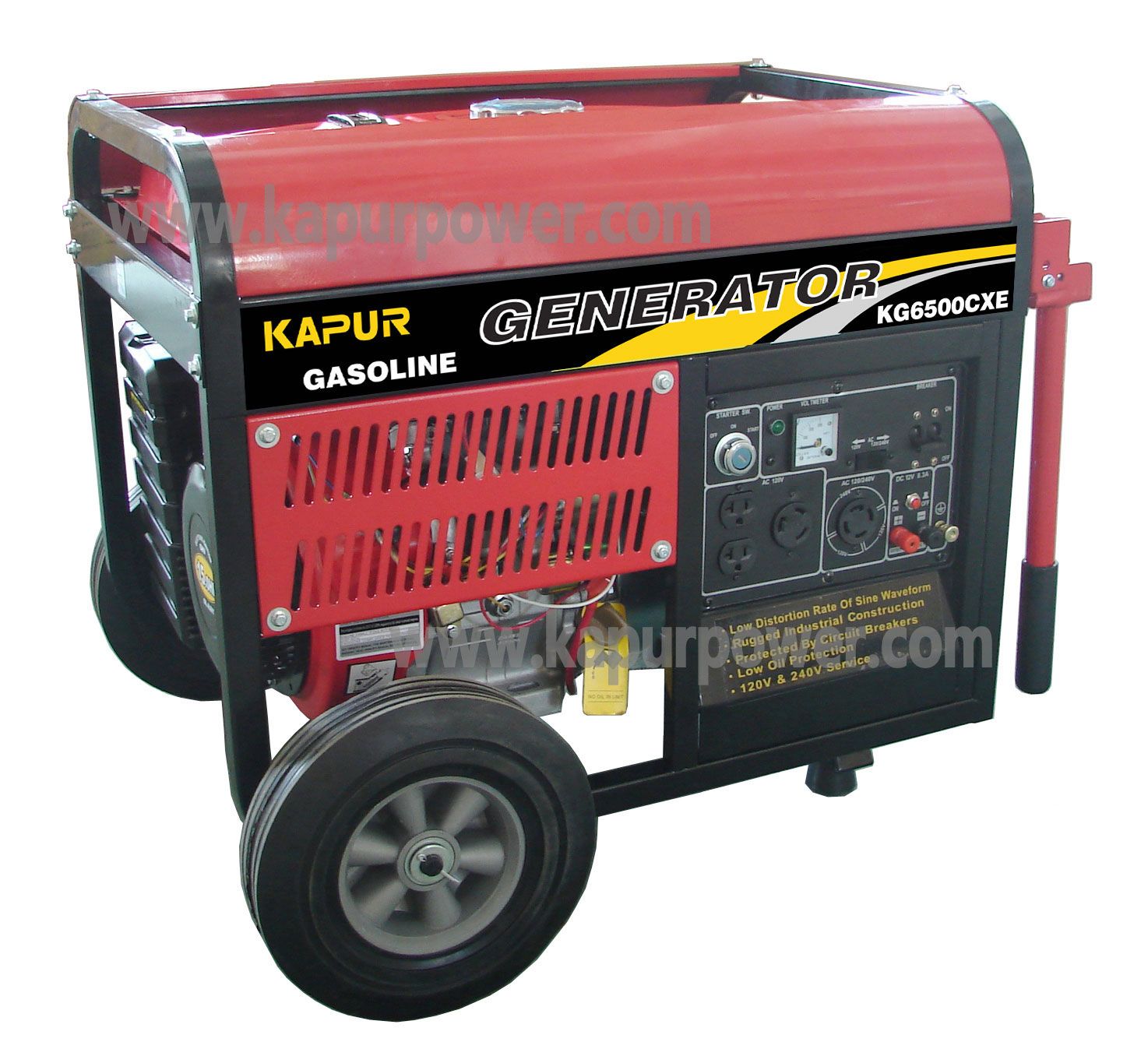

KGY6500CX(E)
KGY7500CX(E)
KGY7500CX(E)-3
AC Frequency(Hz)
50/60
50/60
50/60
50/60
Type:
Brushless,self-Excited,2-Pole,Single-Phase
Brushless,self-Excited,2-Pole,Single-Phase
Brushless,self-Excited,2-Pole,Single-Phase
Brushless,self-Excited,2-Pole,Single-Phase
Cont.AC Output(kw)
3.0/3.3
4.0/4.5
5.0/5.5
5.0/5.5
Max.AC Output(kw)
3.3/3.7
4.5/5.0
5.5/6.0
5.5/6.0
DC Output(V-A)
12/8.3
12/8.3
12/8.3
12/8.3
Insulation
F
F
F
F
Power Facot(cos)
1.0
1.0
1.0
0.8
Engine Model
KG182FG
KG188FG
KG190FG
KG190FG
Engine Type
OHV 4-STROKE AIR-COOLED SINGLE-CYLINDER
OHV 4-STROKE AIR-COOLED SINGLE-CYLINDER
OHV 4-STROKE AIR-COOLED SINGLE-CYLINDER
OHV 4-STROKE AIR-COOLED SINGLE-CYLINDER
Displacement(cm 3 )
377
389
407
407
Engine Speed(rpm)
3000/3600
3000/3600
3000/3600
3000/3600
Start System
Recoil/ Electric
Recoil/ Electric
Recoil/ Electric
Recoil/ Electric
Maximum Power Output(Hp)
13
13
13
13
Fuel Tank Capacity(L)
25
25
25
25
Continuous work(h)
9.5/8.5
8.5/8.0
8.0/7.5
8.0/7.5
Operating Noise Level(at 7m)
70
80
90
92
Dimension (LxMxH)(mm)
685x510x550
685x510x550
685x510x550
685x510x550
Net weight(kg)
84
86
87
89
Fuzhou Kapur Power Equipment Co., Ltd. is a professional manufacturer of diesel/gasoline engines, generators, water pumps, fire pumps, seawater pumps, portable light towers with diesel gensets, air compressors and other power products. We have a 8000m2 workshop and 180 staffs and can produce over 300000 sets of equipments every year. Except ISO9000, KAPUR also obtained CE, EPA, SONCAP certificates for the main products. Our 90% products are exported to America, Europe and other area in the world.
