| Prod Model: |
HF178F_HF178FA |
Product Description

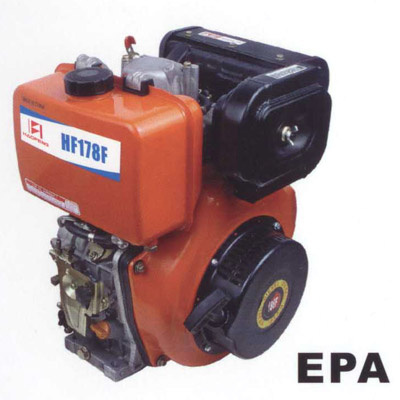

Model: HF178F / HF178FA
Type: Forced air-cooled, 4-stroke, Single cylinder Diesel Engine
Bore*Stroke: 78*62 / 78*64
Displacement (cc): 296 / 305
Compression Ration: 20: 1 / 20: 1
Engine Speed: 3000 3600 / 3000 3600
Max. Output( Hp/rpm): 5. 4 6. 0 / 5. 6 6. 2
Max. Torque(N. M/rpm): 5. 0 5. 5 / 5. 2 5. 7
Ignition System: Direct Injection
Starting System: Recoil(Recoil+Electric start)
Fuel: Direct Light Fuel
Fuel Tank capacity(L): 3. 5
Fuel Consumption(g/Hp. H): 276
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 1. 1
Net Dimension L*W*H(mm): 421*383*450
Overall Dimension L*W*H(mm): 480*415*520
N. W/G. W(kg): 33/38
20GP\40GP\40HQ: 252/516/645
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
