| Prod Model: |
HF173F_HF177F |
Product Description

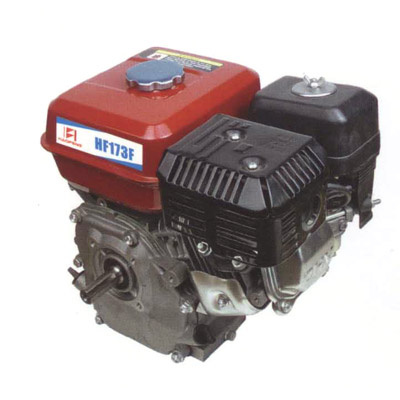

Model: HF173F / HF177F
Type: Forced air-cooled, 4-stroke, OHV single cylinder
Bore*Stroke: 73*58 / 77*58
Displacement (cc): 242 / 270
Compression Ration: 8. 2: 1 / 8. 2: 1
Max. Output( Hp/rpm): 8. 0/3600 / 9. 0/3600
Max. Torque(N. M/rpm): 1. 7/2500 / 1. 95/2500
Ignition System: T. C. I.
Starting System: Recoil(Recoil+Electric start)
Fuel: Unleaded Gasoline
Fuel Tank capacity(L): 6. 0
Fuel Consumption(g/Hp. H): 230
Oil: SAE 10W30(Above CC grade)
Oil capacity(L): 1. 1
Net Dimension L*W*H(mm): 410*380*410
Overall Dimension L*W*H(mm): 520*465*490 (555*465*490)
N. W/G. W(kg): 25/27 / 26/28
20GP\40GP\40HQ: 220/440/550(200/420/525)
Branch manfachurer: Taizhou Haofeng Industrial &Commercial Co., Ltd.
A manufacturer specializing gasoline generator, diesel generator, gasoline water pump, gasoline chain saw, gasoline cut-off saw, gasoline brush cutter, gasoline hedge timmer.
With ISO9000, CE, EPA, ROSH.
