| Prod Model: |
DSO8060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Hantek |
| Unit Type: |
Piece |
| Package Weight: |
3.5kg (7.72lb. ) |
| Five-in-One Handheld: |
2 Channels |
| Price: |
Cheap |
| Add: |
CH1+CH2 Algebraic Addition |
| Weight: |
2.3 Kg |
| Vwaveform Caputure Rate: |
2000 Wfms/S |
| Product Category: |
Desktop Digital Oscilloscpe |
| Optional Interface: |
USB-Gpib Adaptor |

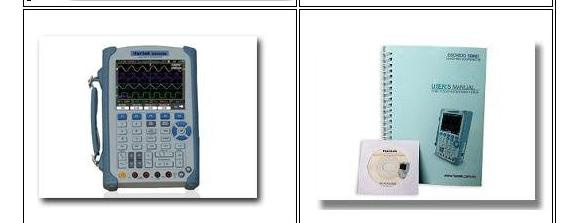

Product Description
Type: DSO8060
Channel: 2
Bandwidth: 60MHz
Rise time; 5.8ns
Input impedance: Resistance: 1M; Capacitance: 15 pF
Input Sensitivity: 10mV/div to 5V/div
Input Coupling: AC, DC and GND
Vertical resolution: 8 bits
Input range: 400V (DC + AC Peak)
Level
Real-time sampling rate: 150MSa / s
Equivalent sampling rate: 50MSa / s
Memory Depth: 32k single, 16k dual-channel
Time base range: 5ns/div ~ 1000s/div
Time base accuracy: ± 50ppm
|
Specification |
|
Frequency Stability |
< 30ppm |
|
Wave amplitude |
± 3.5V Max |
|
Output Impedance |
50 Ω |
|
Output current |
50mA Ipeak = 50mA |
|
System BW |
25M |
|
Harmonic distortion |
: -50dBc (1KHz), -40dBc (10KHz) |
|
FrequencyRange |
DC ~ 60MHz |
We are a specialized electronic product provider in China, with independent development and productivity. We can offer product development and manufacture services quickly. We have rich stock of products.
Our company is engaged in the manufacture and trade of a wide range of various products, such as baby product, earphone electronic products and so on.
We have an efficient management system, a spacious workshop, advanced manufacturing equipment and a first-class R&D team that assist us in achieving our targets. Our major export markets include Europe, Southeast Asia, South America and the Middle East. As a result of our quality products and thoughtful services, our customers trust us and are willing to offer us their orders.
"Producing high quality products" is our strong belief. We persist in providing first-class services and products to completely satisfy our clients' needs. Our principle of "Survive on quality and develop our technology" has enabled us to continually develop and expand our business in both domestic and overseas markets.
We sincerely welcome all questions or inquiries and look forward to hearing from you soon.
