Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gas Source: |
Natural Gas |
Product Description

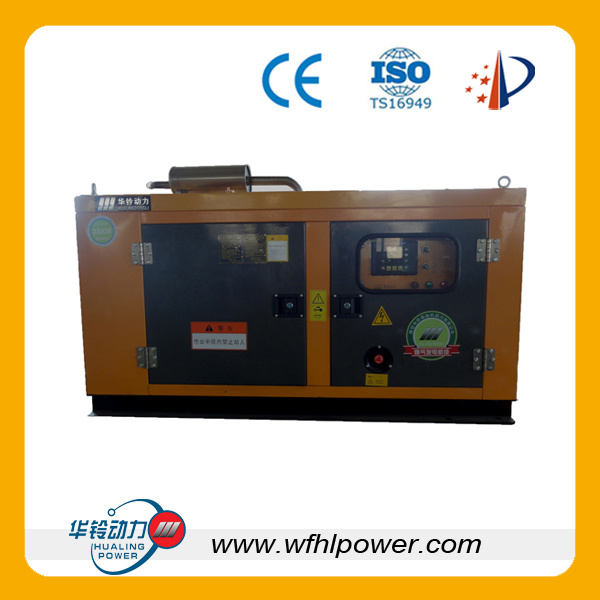

Product name Fuel Gas Electric Generator System 25kw-125kw
Model HL25GF-493M-09
Type Four stroke, inline four-cylinder, Water cooling, air after-cooled, Electronic control timing air intake
Fuel Natural gas or Biogas
Product name |
Fuel Gas Electric Generator System 25kw-125kw |
Model |
HL25GF-493M-09 |
Type |
Four stroke, inline four-cylinder, Water cooling, dry-type thin-wall cylinder liner |
Fuel |
Natural gas or Biogas |
Number and layout of cylinders |
4-cylinder, In line |
Bore and Stoke |
93X102mm |
Compression ratio |
12: 1 |
Rated power |
25KW-125KW |
Rated speed |
1500r/min |
Idling speed |
800± 50 r/min |
Lowest Gas consumption |
≤ 0.22m 3 /kW· h |
Cylinder firing order |
1-3-4-2 |
Noise |
≤ 90Db(A) |
Ignition model |
EUC electronically controlled ignition |
Generator Type |
Marathon, Stamford |
Phase and connection |
3-phase 4-wire system |
Way of the generator excitation |
brushless |
Rated Voltage |
400V |
Rated Frequency |
50HZ |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
