GAC Electronic Speed Governor ESD 5111 ESD5111A

Prod Model:	ESD 5111
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
G.W:	0.7kg/PC

Product Description

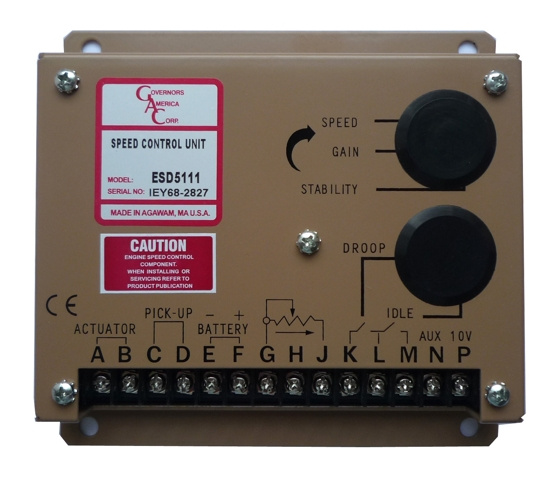

Speed Control Unit ESD5111
Same function as GAC ESD 5111
Speed Control Unit ESD5111

ESD5111 series speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines.

It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference.
In the design, installation and a simple pre-adjustment, including the transfer rate and adjustable idle for assistance or for multiple special-purpose machine input, as well as to prevent reverse battery voltage, the transient voltage pulse, the actuator short-circuit fault And the loss of power or speed sensor signal of the security protection

PERFORMANCE

Isochronous Operation/Steady State Stability
± 0.25% or better

Speed Range/Governor
1K-7.5K Hz continuous

Speed Drift with Temperature
± 1% Maximun

Idle Adjust CW
Min. 1200Hz. Below set speed

Idle Adjust CCW
Min. 4100Hz. Below set speed

Droop Range
1-5% regulation

Droop Adj. Max. (K-L Jumpered)
875Hz., ± 75Hz. Per 1.0 A change

Droop Adj. Min. (K-L Jumpered)
15Hz., ± 6Hz. Per 1.0 A change

Speed Trim Range
± 200Hz.

Remote Variable Speed Range
500 -7.5Hz. Or any part thereof

Terminal Sensitivity
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance

L: 735Hz., ± 60Hz/Volt @ 65 K Impedance

N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance

P: 10V DC Supply @ 20mA Max.

Speed Switch Adjustment Range
1000-10000Hz.

ENVIRONMENTAL

Ambient Operating Temperature Range
-40° C to +85° C

Relative Humidity
Up to 95%

Storage Temperature
-55° C ~ 90° C

Shock
20-100Hz 500mm/Sec.

INPUT POWER

Supply
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)

Polarity
Negative Ground(Case Isolated)

Power Consumption
50mA continuous plus actuator current

Maximum Actuator Current at 25
10AMPS continuous

Speed Sensor Signal
0.5-120 Volts RMS

PHYSICAL

Weight
630g

Note: The performance parameters in the frequency when measuring 4000Hzv

We provide speed controllers as follows:

1) ESD5111, ESD5220, ESD5221A

2) ESD5500E, ESD5520E, ESD5521, ESD5522E

3) ESD5550E, ESD5570E, ESD5330

Cummins:
3037359; 3044196; 3062322; 4914090;
4914091; 3032733; 3044195; 3098693.

OEM is available.
