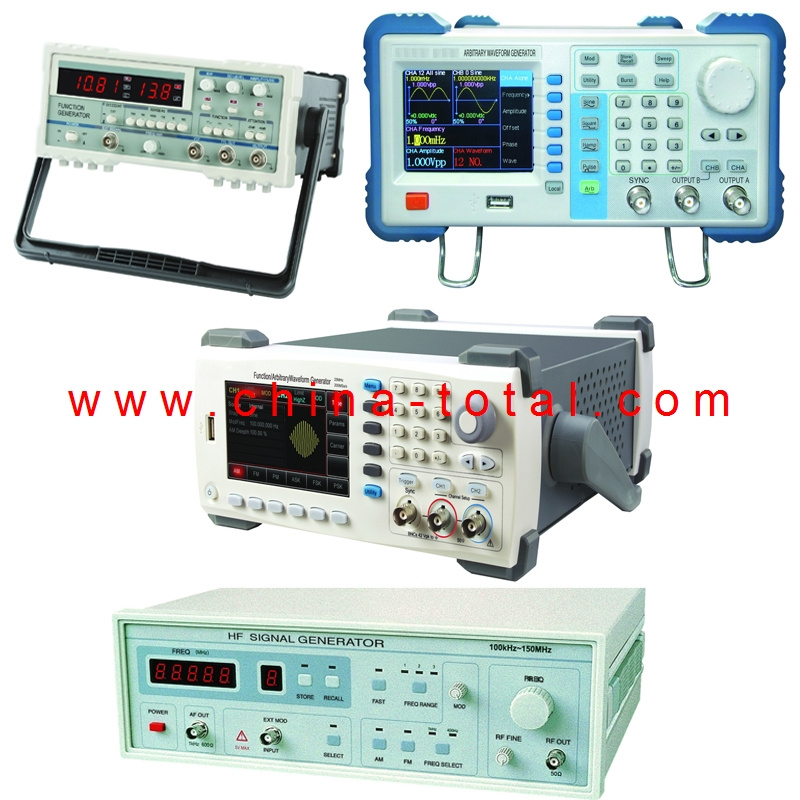

Product Description
Model SRF9002C Function Generator
FeaturesRange
ModelSRF9002C
WaveformsSine, Square, Triangle, Ramp, Pulse, TTL etc.
Amplitude
Range (no load)from 1mVpp to 20Vpp
Accuracy±5%
Resolultion0.1mV
Frequency
Rangefrom 0.2Hz to 2MHz
Accuracy±1%
Resolultion1mHz
Output Power2Wp-p
Output Impedance50Ω
Attenuator20dB + 40dB
DC Offsetfrom -10V to +10V
DisplayFrequency:4-digits-LED,
Amplitude:3-digits-LED
Duty Cyclefrom 10% to 90%
Distortion of Sine≤2% (at 1kHz)
Rise time of Square≤50ns
VCF≥100:1
Frequency Counter
Frequency Rangefrom 0.2Hz to 10MHz
Amplitude Rangefrom 0.5Vp-p to 5Vp-p
Input Impedance10kΩ
General Characteristic
PowerAC 220V,50Hz
Product ColorWhite and Gray
Product Net Weight2.5 Kg
Product Size320mm×240mm×100mm
Standard AccessoriesBNC to Alligator Clips,Power Cord
Standard Individual PackingGift Box,English Manual
Standard Quantity Per Carton6 Pcs
Standard Carton Measurement660mm×410mm×600mm
Standard Carton Cross Weight18 Kg
Model SRF9005C Function Generator
FeaturesRange
ModelSRF9005C
WaveformsSine, Square, Triangle, Ramp, Pulse, TTL etc.
Amplitude
Range (no load)from 1mVpp to 20Vpp
Accuracy±5%
Resolultion0.1mV
Frequency
Rangefrom 0.5Hz to 5MHz
Accuracy±1%
Resolultion1mHz
Output Power2Wp-p
Output Impedance50Ω
Attenuator20dB + 40dB
DC Offsetfrom -10V to +10V
DisplayFrequency:4-digits-LED,
Amplitude:3-digits-LED
Duty Cyclefrom 10% to 90%
Distortion of Sine≤2% (at 1kHz)
Rise time of Square≤35ns
VCF≥100:1
Frequency Counter
Frequency Rangefrom 0.2Hz to 10MHz
Amplitude Rangefrom 0.5Vp-p to 5Vp-p
Input Impedance10kΩ
General Characteristic
PowerAC 220V,50Hz
Product ColorWhite and Gray
Product Net Weight2.5 Kg
Product Size320mm×240mm×100mm
Standard AccessoriesBNC to Alligator Clips,Power Cord
Standard Individual PackingGift Box,English Manual
Standard Quantity Per Carton6 Pcs
Standard Carton Measurement660mm×410mm×600mm
Standard Carton Cross Weight18 Kg
Model SRF9010C Function Generator
FeaturesRange
ModelSRF9010C
WaveformsSine, Square, Triangle, Ramp, Pulse, TTL etc.
Amplitude
Range (no load)from 1mVpp to 20Vpp
Accuracy±5%
Resolultion0.1mV
Frequency
Rangefrom 1Hz to 10MHz
Accuracy±1%
Resolultion1mHz
Output Power2Wp-p
Output Impedance50Ω
Attenuator20dB + 40dB
DC Offsetfrom -10V to +10V
DisplayFrequency:4-digits-LED,
Amplitude:3-digits-LED
Duty Cyclefrom 10% to 90%
Distortion of Sine≤2% (at 1kHz)
Rise time of Square≤35ns
VCF≥100:1
Frequency Counter
Frequency Rangefrom 0.2Hz to 10MHz
Amplitude Rangefrom 0.5Vp-p to 5Vp-p
Input Impedance10kΩ
General Characteristic
PowerAC 220V,50Hz
Product ColorWhite and Gray
Product Net Weight2.5 Kg
Product Size320mm×240mm×100mm
Standard AccessoriesBNC to Alligator Clips,Power Cord
Standard Individual PackingGift Box,English Manual
Standard Quantity Per Carton6 Pcs
Standard Carton Measurement660mm×410mm×600mm
Standard Carton Cross Weight18 Kg
Model SRF2025A / SRF2062A Function/Arbitrary Waveform Generators
Product Features:
1.Intuitive Interface Design;
2.Dual Channels with Standard Performance;
3.250MS/s, 200MS/s Sample Rate, 14bits Vertical Resolution;
4.Integrated Analog and Digital Design;
5.4.3'' HD Display Panel.
Model SRF2002 - Function Generator
8 digit LED display (including 3 digits for voltage)
Frequency and width displayed simultaneously
Output waveforms:Sine, square, triangle
Frequency of output signal:0.2Hz - 2MHz
Duty cycle adjustable:20% - 80%
Width of output signal adjustable continuously
Amplitude without attenuation:0.9V - 10V
Amplitude with -20dB attenuation:100mV - 1V
Amplitude with -40dB attenuation:10mV - 100mV
Power:AC
Model SRF1620 Digital Frequency counter·Linear/Log Sweep Frequency Function
Specification
SRF1052 / SRF1052A
Frequency range
0.1MHz-150MHz
Output range
1.5Vp-p
Output impedance
50Ω
Amplitude stability character
±2dB (As frequency is over 30 MHz, add ±0.5dB additionally)
Output amplitude adjust
>10dB
Attenuation output
-10dB, -20dB, -20dB, -20dB, assembled optionally (only for SRF1052A)
AM range
0-60%, series adjustable
Internal modulation signal
1kHz, 400Hz
External FM range
20Hz~30kHz
External FM input voltage
<5V
FM offset
0-100kHz, continuous to be adjustable
Audio frequency
1kHz
Audio output range
4Vrms
Audio distortion
<1%
Audio output impedance
600Ω
Dimension
115H×270W×335D (mm)
Weight
5.5KGS
Model Item
SRF32010
SRF32020
A FREQ FEATURE
Waveform length
4-16000 dots
Waveform amplitude resolution
12bits
sampling rate
100MSa/s or 200Msa/s
Sine wave
1μH-10MHz
1μHz-20MHz
square wave
1μH-5MHz
1μHz-5MHz
pulse wave
1μH-3MHz
1μHz-3MHz
arbitrary wave
1mHz-1MHz
1mHz-1MHz
WAVEFORM FEATURE
Sine wave General Harmonic Wave
DC-100KHz : -60dBc; 100KHz- 1MHz: -50dBc;
Distortion (1Vpp)
1MHz- 20MHz: -35dBc
Square wave overshoot
<10%
Rise time of square wave
25 ns
≤18ns
Duty Cycle
0%-100%
Linearity of toothwave
≤0.1% of peak value; (Typical value 1KHz, 1VPP, Symmetry 100%)
Symmetry of toothwave
0%-100%
AMPLITUTE FEATURE
50Ω
2mVpp-10Vpp
open circuit
4mVpp-20Vpp
Accuracy
±1%+2mVrms; (High impedance, valid value, frequency 1kHz)
OFFSET FEATURE
deviation range
±10V (High impedance)
Offset accuracy
± (1%+20mV)
MODULATION FEATURE
carrier
Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave
modulating frequency
5Hz-50KHz
AM Modulation depth
0%-120%
FM frequency modulation deviation
DC-10MHz
DC-20 MHz
KEY CONTRON FEATURE
ASK
Set the carrier amplitude and the tabular amplitude arbitrarily
FSK
Set the carrier frequency and the tabular frequency arbitrarily
PSK
Jumping phase: 0-360°; resolution: 11.25°
SWEEP FEATURE
type
Linearity or logarithm
sweep range
Set the initial point and ending point arbitrarily
time interval
50ns - 60S
PULSE STRING FEATURE
carrier wave
Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave
cycle number
1 - 50000CYC
Initial phase synchronization
0 - 360°
SYNC OUTPUT
output amplitude
5V
frequency
1μHz-2MHz
B FREQ FEATURE
Waveform length
4-16000 dots
Waveform amplitude resolution
12bits
sampling rate
100MSa/s or 200Msa/s
Sine wave
1μH-10MHz
1μHz-20MHz
square wave
1μH-5MHz
1μHz-5MHz
pulse wave
1μH-3MHz
1μHz-3MHz
arbitrary wave
1mHz-1MHz
1mHz-1MHz
WAVEFORM FEATURE
Sine wave general harmonic wave
DC-100KHz: -60dBc; 100KHz-1MHz: -50dBc;
Distortion (1Vpp)
1MHz- 20MHz: -35dBc
Square wave overshoot
<10%
Rise time of square wave
25ns
≤18ns
Duty Cycle
0%-100%
Linearity of toothwave
≤0.1% of peak value;
(Typical value 1KHz, 1VPP, Symmetry 100%)
Symmetry of toothwave
0%-100%
AMPLITUTE FEATURE
output amplitude
4mVpp-5Vpp
Accuracy
±1%+2mVrms; (High resistance, valid value, frequency 1kHz)
