North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Modle:
Aae-Ms130
Capacity:
3.0t
Lifitng Height:
2030mm
Min Height:
330mm
Lifting Time:
55-60s
Overall Length For Platform:
1500-1800mm
Overall Width For Platform:
550mm
Motor Power:
2.2 Kw
Power Supply:
220/380/415
Packing Size:
1550*560*440+560*450*1150mm
Type:
Double Cylinder Hydraulic Lift
Lifting Capacity:
3T
Certification:
CE
Design:
Scissor
Brand:
Arch Auto Equipment
Product Description
Product Description:

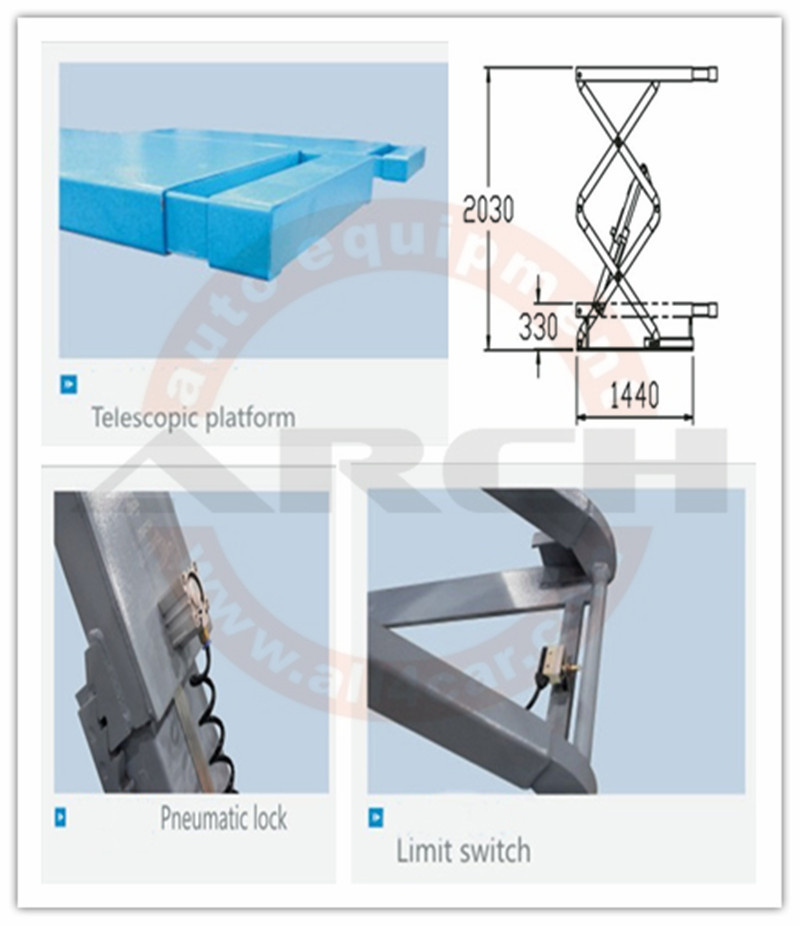

1. In-ground mounting. 2.2-cylinders structure,330mm under trench installation. 3. Aluminum motor prevents overheat. 4. Safety signal when lowering from 500mm above ground. 5.24V safety control system. 6. 24V height limit switch included. 7. Pneumatic control lock device. 8. Platforms can extension for different long vehicles. 9. 115%dynamic and 150%static loading test passed. 10. CE approved.

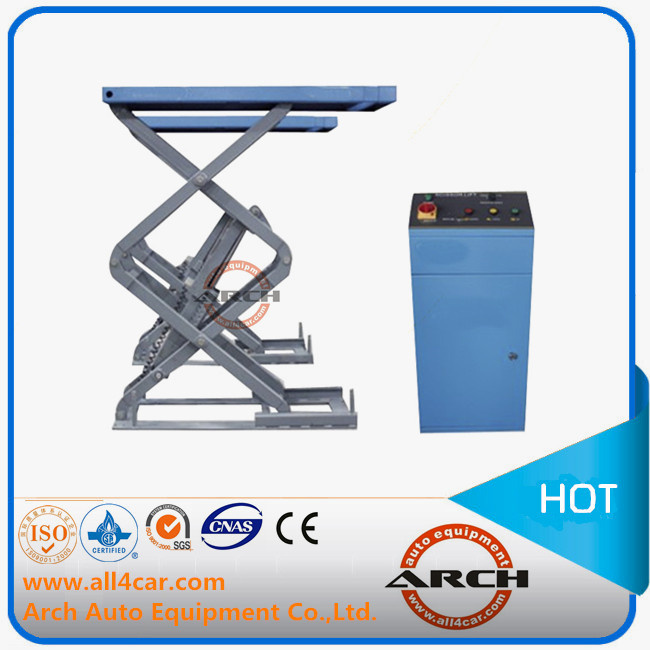

Full Rise Scissor Lift (AAE-MS130)
Technical parameter :
Modle
AAE-MS130
Lifting Capacity
3000kg
Lifting Height
2030mm
Min Height
330mm
Lifting Time
55-60s

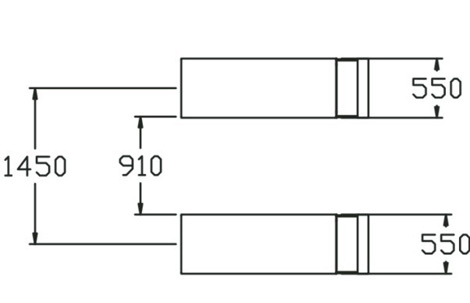

Overall Length For Platform
1500-1800mm
Overall Width For Platform
550mm
Motor Power
2.2kw
Power Supply
220/380/415V
Weight
868kg
Company information:
ARCH AUTO EQUIPMENT CO.,LTD.
Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.
FAQ Why chose us:
1. Famous brand name in china 2. Super high quality, competitive price 3. Customer-oriented service 4. Big production ability 5. Fast delivery, excellent after-sale service 6. Certificate CE, ASME, SGS, BV,ISO9001,ISO14001,
How can I get quote/price
1. Just send email to us ,and it will be responded with 24 hrs
what about the lead time for mass product
1. Leading time:20days
