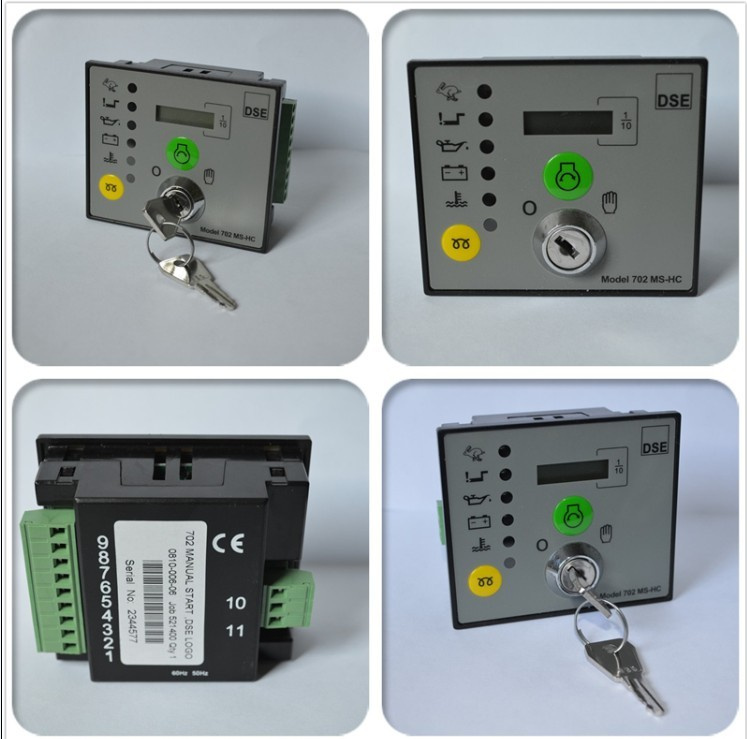

He model 701/702 is an Engine control module designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions, automatically shutting down the engine and indicating the cause of failure by LED, giving true, first up fault annunciation.
Model#DSE702AS (Auto)
Power Supply8 to 35 Vdc Continuous
Cranking Dropouts: Able to survive voltage dips during cranking. Without
The need for internal batteries.
Alternator Input Range15 - 305 V AC RMS (+20%)
Alternator Input Frequency: 50 - 60 Hz at rated engine speed. (Minimum 75V AC)
Overspeed: Nominal frequency +14% (+24% Overshoot)
Start Output: Solid State 1.2A negative grounding terminal
Run Output: Solid State 1.2A negative grounding terminal
Pre-heat Output: Solid State1.2A negative grounding terminal
Operating Temperature Range: -30 to +70° C
