Engine:
Cummins Kta19-G4 Brand, Perkins, Deutz Is Optional
Alternator:
Stamford, Marathon, Engga, Godlike
Controller:
Dse7020, 7320
Load Test:
25%, 50%, 75%, 100%, 110%
Rated Voltage:
110V~690V
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Famous Factory Supply 50Hz 400kw/500kVA Cummins Silent Electric Generator (GDC500*S)
Generator main technical data:
Technical parameters of diesel generator sets:
Generator Set
Generator Model
GDC500*S
Prime Power
400kw
Rated Voltage
400/230V
Frequency
50Hz
Power Factor
0.8(lagging)
Dimension (L×W×H) (mm)
3400*1360*2000 mm
Genset weight (kg)
4200 kg
Diesel Engine
Brand
Cummins
Type
KTA19-G4
Number of Cylinders
6
Rotating Speed
1500RPM
Cycle
Four stroke
Cooling Method
Water Cooling
Bore×Stroke(mm)
159*159 mm
Displacement(L)
18.9 L
Compression Ratio
13.9:1
Speed Governor
Electrical
Cooling System
Water-cooled
Total Lubrication System Capacity (L)
/
Fuel Consumption at 100% Load
105 L/H
Starting Method
24V Electrical starting
Alternator
Brand
Shanghai Stanford
Model
HJI400
Prime/Standby Power
400kw
Connecting Type
3 Phase and 4 Wires
Number of Bearing
single
Protection Grade
IP23
Altitude
≤1000M
Exciter Type
Brushless ,Self-exciting, AVR automatic voltage regulating
Insulation Class
H
Safety Design, production and testing of the generator sets comply with EU CE safety standard; Equipped with circuit breaker to avoid possible electric risk at re-startup when engine stops in emergency. The controller has a historical operation recording function for troubleshooting and inspection. Powerful Engines Adopts world-famous engines,with low noise and low emission. Rugged structure ensures lowest vibration. Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust. For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.

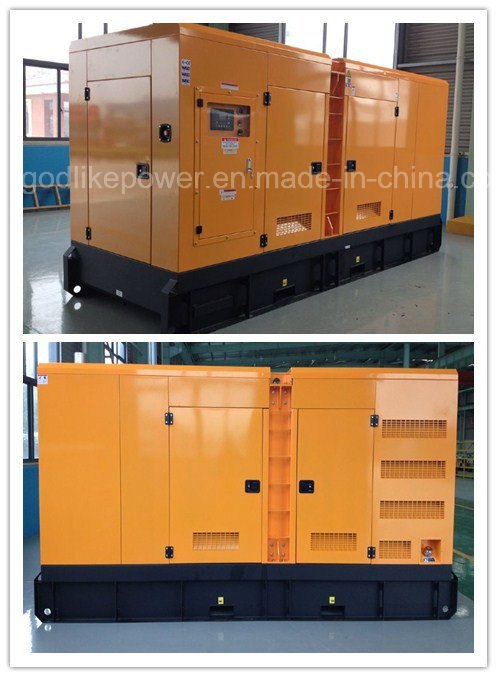

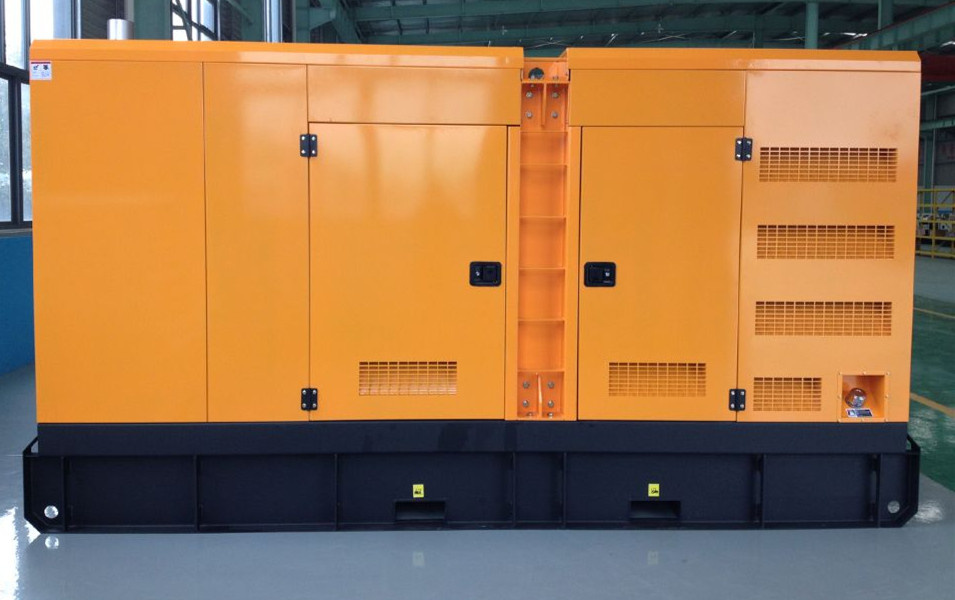

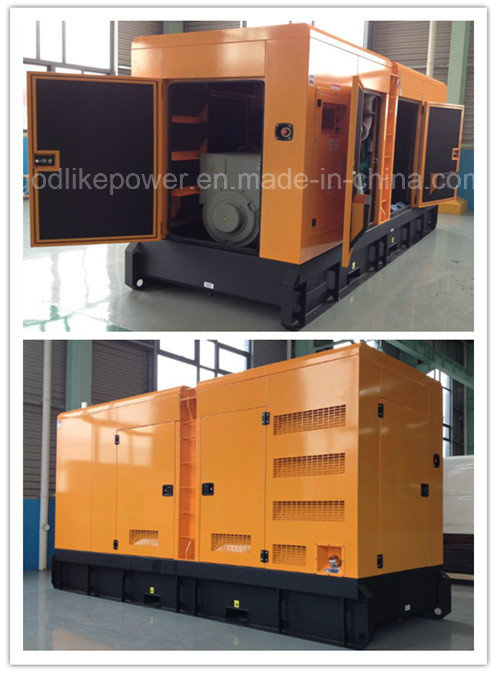

Control System Micro-processor cored digital system. Multiple languages, automatic control. Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs. 400KW /500KVA Generator photos Contact: Ms Vicki Yuan Mob:+86 159 5258 5329 Tel:+86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
