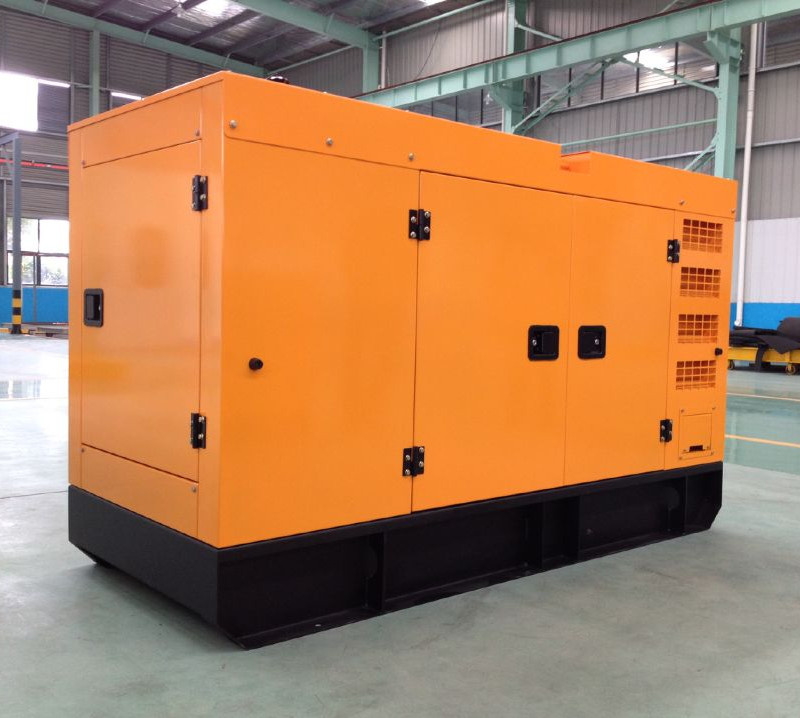

Famous Factory 48kw/60kVA Stamford Alternator Diesel Generator (4BTA3.9-G2) (GDC60*S)
Prime Power: 48kw60kva
Standby Power: 53kw/66kva
Engine Brand: Cummins
Engine Model: 4BTA3.9-G2
Alternator Brand: Copy stamford or Stamford
Alternator Model:JDG224E / UCI224E
Frequency: 50Hz
Rated Voltage: 380V/220V (adjustable)
Technical parameters:
Technical Data |
Genset Model | GDC60*S |
Prime power | 48kw/60kva |
Rated Voltage | 400/230V or as per requirement |
Frequency | 50HZ or 60HZ |
Power factor | 0.8(Lagging) |
Dimension(L*W*H)(mm) | 1900*800*1500 |
Genset Weight(kg) | 1050 |
Diesel engine |
Brand | Cummins |
Model | 4BTA3.9-G2 |
NO. of Cylinder | 6 |
Rotating speed | 1500rpm or 1800rpm |
Cylinder Arrangement | in line |
Cycle | 4 Strokes |
Aspiration | Turbocharged |
Bore*Stroke(mm) | 102*120 |
Displacement(L/h) | 3.9 |
Compression Ratio | 11.8:1 |
Speed Governor | Electronic |
Cooling system | Water cooled |
Speed Stability | ≤5% |
Total Lub Oil Capacity(L) | 11 |
Fuel Consumption at 100% Load | 10.5 |
Starting Method | DC 24V electric start |
Alternator |
Brand | Stamford, Marathon or other famous brand Alternator |
Model | UCI244E |
Number of Phase | Three phase |
Connecting type | 3 phase 4 wire |
Protection Grade | IP23 |
Altitude | <1000m |
Exciter Type | Brushless |
Insulation type | H |
Telephone Influence Factor (TIF) | ≤50 |
THF | ≤2% |
Voltage Regulation Steady, State | ≤15%-20% |
The components of genset |
(1) Cummins engine (2)Stamford Alternator (3)control panel |
The control panel |
The control panel is AMF control panel with the display of voltage, current, water temperature, oil pressure. The genset with low oil pressure , high water temperature, over speed over load protection function. |
Contact: Ms Vicki Yuan
Tel: 86 514 80915716
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
