Factory Price 50Hz 128kw/160kVA Cummins Electric Generator Set (GDC160)

Name: Factory Price 50Hz 128kw/160kVA Cummins Electric Generator Set (GDC160)
Brand: aboutgenerator.com
SKU: 681702542
Availability: InStock
Rating: 4.6 (101 reviews)

Price:	US $ 8200/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Jiangsu GodLike Power Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	GDC160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	100% Pure Copper Wire
Engine:	Cummins Brand, Perkins, Deutz Is Optional
Alternator:	Stamford, Ennga, Marathon, Leroy Somer
Controller:	Dse, Smartgen Is Optional
Load Test:	25%, 50%, 75%, 100%, 110%
Option:	ATS/Amf
Voltage Range:	110V-690V
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

Factory price 50Hz 128kW/160kVA Cummins Electric Generator Set (GDC160)

Main specifications:

DIESEL GENERATOR SET	Diesel GenSet Model	GDC160
	Prime power (KW/KVA)	128/160
	Standby power (KW/KVA)	140/176
	Rated voltage(V)	230/400
	Rated current (A)	230
	Frequency(Hz)	50
	Rated Rotary Speed (RPM)	1500
	Power factor	0.8
	Power supply mode	3 phase, 4wire
	Starting method	24V DC
ENGINE	Diesel Engine	Cummins
	Model	6CTA8.3-G2
	Engine prime power (KW/KVA)	163/203.75
	Engine standby power(KW/KVA)	180/225
	Cylinder Qty.	6
	Bore(mm) *Stroke (mm)	114*135
	Compression rate	17.3: 1
	Cooling liquid volume (L)	33.5
	Displacement(L)	8.3
	Lubricant capacity (L)	27.6
	Cooling method	Water cooled
	Intake method	Turbocharged& Inter-cooled
ALTERNATOR	Alternator Features: 1. Kaijie, ENGGA, Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤ ± 1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

100% Pure Copper Copy Stamford Alternator Model (Voltage is adjustable)

Model	50hz / 1500rpm/3 phase		60 hz/ 1800rpm/ 3 phase
	190 ~ 454V		110 ~ 240V/230 ~ 690V
	KVA	KW	KVA	KW
JDG 184E	22.5	18	30	24
JDG 184F	27.5	22	35	28
JDG 184G	31.3	25	37.5	30
JDG 184H	37.5	30	46.9	37.5
JDG 184J	42.5	34	50	40
JDG 224C	42.5	34	55	44
JDG 224D	50	40	65	52
JDG 224ES	56.25	45	70	56
JDG 224E	60	48	75	60
JDG 224F	72.5	58	93	74.4
JDG 224GS	80	64	100	80
JDG 224G	85	68	103	82.4
JDG 224H	94	75	115	92
JDG 274C	100	80	125	100
JDG 274DS	120	96	146	117
JDG 274D	125	100	150	120
JDG 274ES	140	112	178	142
JDG 274E	150	120	187.5	150
JDG 274F	160	128	206	165
JDG 274G	190	152	225	180
JDG 274H	200	160	255	204
JDG 274J	230	184	300	240
JDG 274K	250	200	312.5	250
JDG 314C	250	200	320	256
JDG 314DS	275	220	344	275
JDG 314D	300	240	375	300
JDG314ESS	312.5	250	387.5	310
JDG 314ES	325	260	419	335
JDG 314E	350	280	440	352
JDG 314FS	380	304	475	380
JDG 314F	400	320	500	400
JDG 354C	450	360	594	475
JDG 354D	500	400	644	515
JDG 354ES	562.5	450	703	562.5
JDG 354E	600	480	750	600
JDG 354FS	625	500	738	590
JDG 354F	670	536	825	660
JDG 354G	700	560	862.5	690
JDG 404B	750	600	938	750
JDG 404C	800	640	1000	800
JDG 404D	910	728	1138	910
JDG 404E	1000	800	1250	1000
JDG 404F	1125	900	1390	1112
JDG 404G	1250	1000	1513	1210

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model		Cyl.	Disp.	Bore *Stroke	Fuel Cons.
No.	GENSET Model	Prime KVA	Prime KW	Standby KVA	standby KW	CUMMINS	GODLIKE	STAMFORD	(nos)	(L)	(mm)	(g/kw.h)
1	GDC20*S	20	16	23	18	4B3.9-G1/G2	JDG164D	PI 144D	4	3.9	102*120	215
2	GDC25*S	25	20	28	22	4B3.9-G1/G2	JDG184F	PI 144E	4	3.9	102*120	215
3	GDC30*S	30	24	33	26	4BT3.9-G1/G2	JDG184G	PI 144G	4	3.9	102*120	215
4	GDC40*S	40	32	44	35	4BT3.9-G1/G2	JDG184H	PI 144J	4	3.9	102*120	215
5	GDC43*S	43	34	47	37	4BTA3.9-G2	JDG224C	UCI224C	4	3.9	102*120	215
6	GDC50*S	50	40	55	44	4BTA3.9-G2	JDG224D	UCI224D	4	3.9	102*120	215
7	GDC57*S	57	45	63	50	4BTA3.9-G2	JDG224ES	UCI224E	4	3.9	102*120	215
8	GDC60*S	60	48	66	53	4BTA3.9-G2	JDG224E	UCI224E	4	3.9	102*120	215
9	GDC63*S	63	50	69	55	6BT5.9-G2	JDG224E	UCI224E	6	5.9	102*120	215
10	GDC73*S	73	58	80	64	6BT5.9-G2	JDG224F	UCI224F	6	5.9	102*120	215
11	GDC88*S	88	70	96	77	6BT5.9-G2	JDG224G	UCI224G	6	5.9	102*120	215
12	GDC93*S	93	75	103	82	6BT5.9-G2	JDG224H	UCI274C	6	5.9	102*120	215
13	GDC100*S	100	80	110	88	6BT5.9-G1/G2	JDG274C	UCI274C	6	5.9	102*120	215
14	GDC120*S	120	96	132	106	6BTA5.9-G2	JDG274DS	UCI274D	6	5.9	102*120	215
15	GDC135*S	135	108	149	119	6BTAA5.9-G2	JDG274ES	UCI274E	6	5.9	102*120	215
16	GDC138*S	138	110	151	121	6CTA8.3-G2	JDG274ES	UCI274E	6	8.3	114*135	210
17	GDC150*S	150	120	165	132	6CTA8.3-G2	JDG274E	UCI274E	6	8.3	114*135	210
18	GDC160*S	160	128	176	141	6CTA8.3-G2	JDG274F	UCI274F	6	8.3	114*135	210
19	GDC180*S	180	144	198	158	6CTA8.3-G2	JDG274G	UCI274G	6	8.3	114*135	210
20	GDC200*S	200	160	220	176	6CTAA8.3-G2	JDG274H	UCI274H	6	8.3	114*135	210
21	GDC225*S	225	180	248	198	6LTAA8.9-G2	JDG274J	UCD274J	6	8.9	114*135	197
22	GDC250*S	250	200	275	220	6LTAA8.9-G2	JDG274K	UCD274K	6	8.9	114*135	197
23	GDC250*S	250	200	275	220	NTA855-GA	JDG274K	UCD274K	6	10.8	125*147	200
24	GDC250*S	250	200	275	220	MTA11-G2A	JDG274K	UCD274K	6	10.8	125*147	200
25	GDC275*S	275	220	303	242	NTA855-G1A	JDG314DS	HCI444D	6	10.8	125*147	188
26	GDC300*S	300	240	330	264	NTA855-G1B	JDG314D	HCI444D	6	10.8	125*147	188
27	GDC313*S	313	250	344	275	NTA855-G1B	JDG314ESS	HCI444ES	6	10.8	125*147	188
28	GDC325*S	325	260	358	286	NTA855-G1B	JDG314ES	HCI444ES	6	14.0	140*152	200.2
29	GDC350*S	350	280	385	308	NTA855-G2A	JDG314E	HCI444E	6	14.0	140*152	200.2
30	GDC350*S	350	280	385	308	NTA855-G4	JDG314E	HCI444E	6	14.0	140*152	200.2
31	GDC375*S	375	300	413	330	NTAA855-G7	JDG314FS	HCI444FS	6	14.0	140*152	205.4
32	GDC375*S	375	300	413	330	KTA19-G2	JDG314FS	HCI444FS	6	14.0	140*152	205.4
33	GDC400*S	400	320	440	352	NTAA855-G7A	JDG314F	HCI444F	6	14.0	159*159	205.4
34	GDC420*S	420	336	462	370	NTAA855-G7A	JDG354C	HCI544C	6	18.9	159*159	200.7
35	GDC450*S	450	360	495	396	KTA19-G3	JDG354C	HCI544C	6	18.9	159*159	200.7
36	GDC500*S	500	400	550	440	KTA19-G3A	JDG354D	HCI544D	6	18.9	159*159	200.5
37	GDC500*S	500	400	550	440	KTA19-G4	JDG354D	HCI544D	6	18.9	159*159	200.5
38	GDC550*S	550	440	605	484	KTAA19-G5	JDG354ES	HCI544D	6	18.9	159*159	200.5
39	GDC600*S	600	480	660	528	KTAA19-G6	JDG354E	HCI544E	6	18.9	159*159	208
40	GDC600*S	600	480	660	528	KTAA19-G8	JDG354E	HCI544E	6	18.9	159*159	208
41	GDC625*S	625	500	688	550	KTAA19-G6A	JDG354FS	HCI544F-S	6	18.9	159*159	202
42	GDC625*S	625	500	688	550	KT38-G	JDG354FS	HCI544F-S	6	18.9	159*159	202
43	GDC700*S	700	560	770	616	KTA38-GA	JDG354G	HCI544F-S	12	37.8	159*159	213
44	GDC750*S	750	600	825	660	KTA38-G2	JDG404B	LVI634B	12	37.8	159*159	209
45	GDC800*S	800	640	880	704	KTA38-G2B	JDG404C	LVI634C	12	37.8	159*159	196
46	GDC900*S	900	720	990	792	KTA38-G2A	JDG404D	LVI634D	12	37.8	159*159	196
47	GDC1000*S	1000	800	1100	880	KTA38-G4	JDG404E	HCI 634G	12	37.8	159*159	198
48	GDC1125*S	1125	900	1238	990	KTA38-G9	JDG404F	HCI 634G	12	37.8	159*159	198
49	GDC1250*S	1250	1000	1375	1100	KTA50-G3	JDG404G	HCI 634J	12	37.8	159*159	213
50	GDC1375*S	1375	1100	1513	1210	KTA50-G8	HCI 634J	HCI 634K	12	37.8	159*159	213
51	GDC1500*S	1500	1200	1650	1320	KTA50-GS8	LVI 634G	LVI 634G	12	37.8	159*159	213

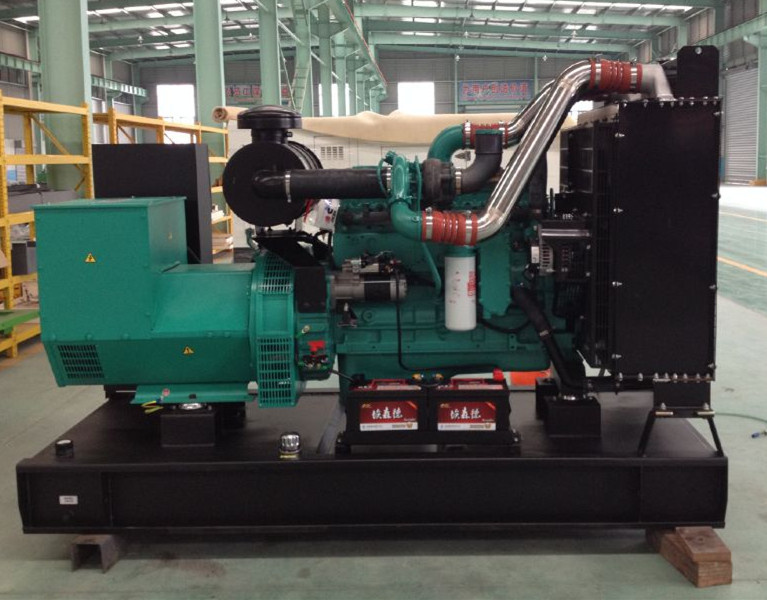

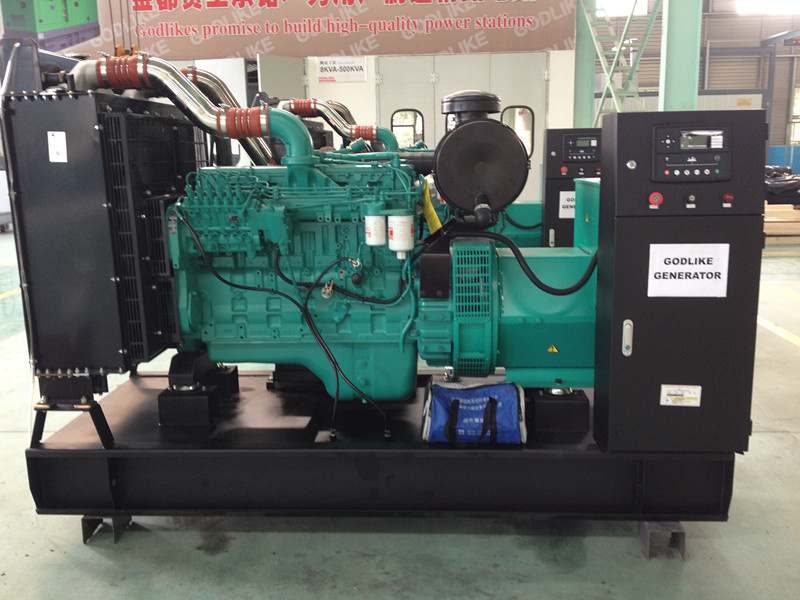

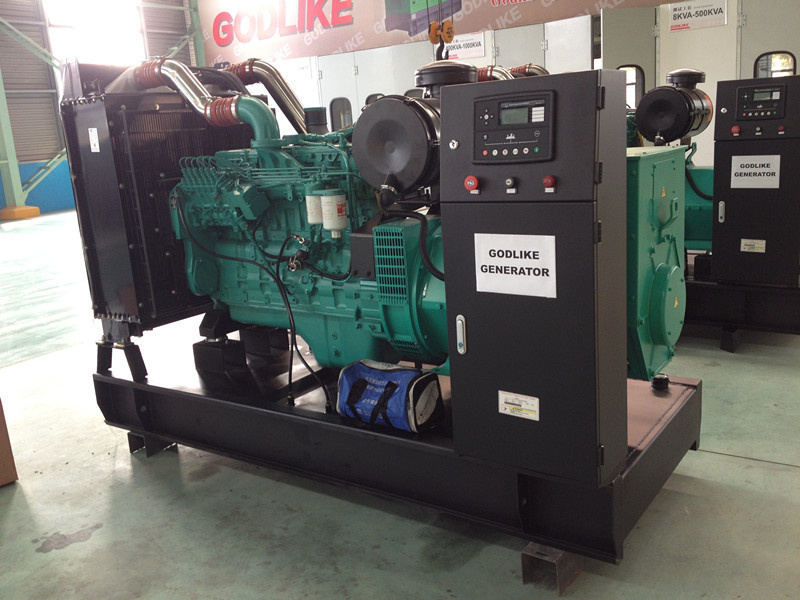

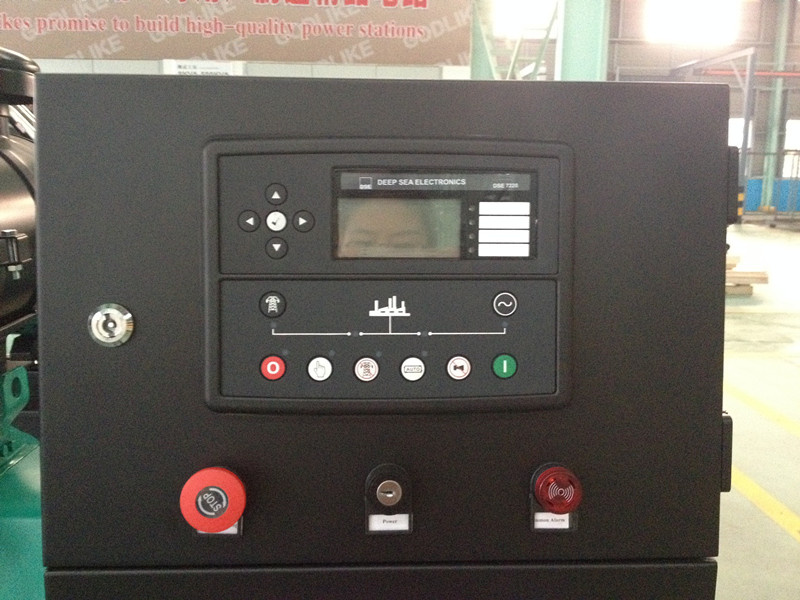

Generator photos:

Contact: Ms Vicki Yuan
Tel:86 514 80915716

Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.

Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.

GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.

GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.

Warmly welcome to GODLIKE.
