South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Dimension:
4980*2200*2480mm
Alternator:
Leateck/Stamford
Controller:
UK Deep Sea
Insulation Grade:
H
Protection Grade:
IP21-23
Start System:
Electric Start
Type:
Micro-Computer Control Automatic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description
Product Description-1600kva Diesel Generator Set With Cummins Engine(Container type)
1. Powered by Cummins Engine 2. With Stamford / Leateck Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with ISO9001/CE/SGS 8. After-sale Services
Model No.
STANDBY POWER
PRIME POWER
ENGINE
ALTERNATOR
CONTROLLER
KVA
KW
KVA
KW
OCL-1600
1540
1232
1400
1120
KTA50-GS8
LTG454B1
6110
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
Generator set specifications
Governor Class
ISO8528 G3
Potential Drop
1%
Steady Voltage Regulation
1%
Frequency Drop
Synchronous(0%)
Steady-state Frequency
0.25%
R.R.I.Suppression
BS EN 61000-6-4 / BS EN 61000-6-2
Fuel Consumption Rate ,g/kw.h(L/hr)
205 (293.67)
Starting Battery Capacity ,A/hrhhr
200*4
Total Coolant Capacity ,L
330
Fuel Capacity (base tank),L
N/A
Engine Data
Model
KTA50-GS8
Type
"V" Type 16 Cylinder,4 Cycle
Displacement ,L
50.3
Compression Ration
14.9:1
Aspiration
Turbo, Water / Air Cooling
Fuel System
PT type Fuel Pump,EFC Electronic Governor
Bore*Stroke(mm)
159*159
Rated Speed ,rpm
1500
Governor Type
Electronic
Starting Voltage
24V ,Negative ground
Battery Charging System
24V 35A
Lubricant Capacity ,L
204
Coolant Capacity, L
330
Alternator Data
Protection Class
IP21
Insulation Class
Class H
Temperature Rise in Standard
125ºC(When Ambient Temp.is 40 ºC)
Excitation Type
Brushless & Self-excited
Waveform Distortion
No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%

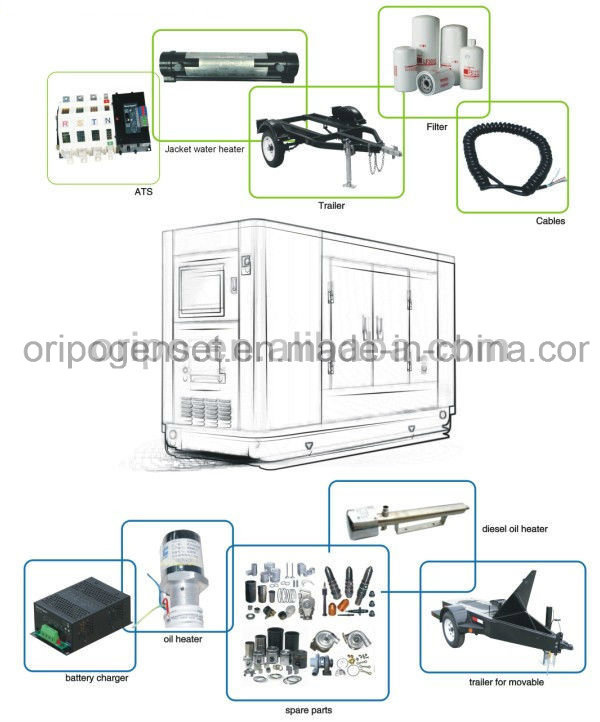

OPTIONAL ACCESSORIES/SPARE PARTS:
-Sound and water proof enclosure -Trailer/Movable power station -Battery charger -Jacket water heater -Oil heater -Diesel oil heater -Automatic transfer switches(ATS) & paralleling system -Extra fuel tank -Fuel water separator Warranty: 1-One year or 1000working hours whichever comes first! 2-Free spear parts offer in warranty period, if confirm manufacturing defect. 3-Free professional techical service support.

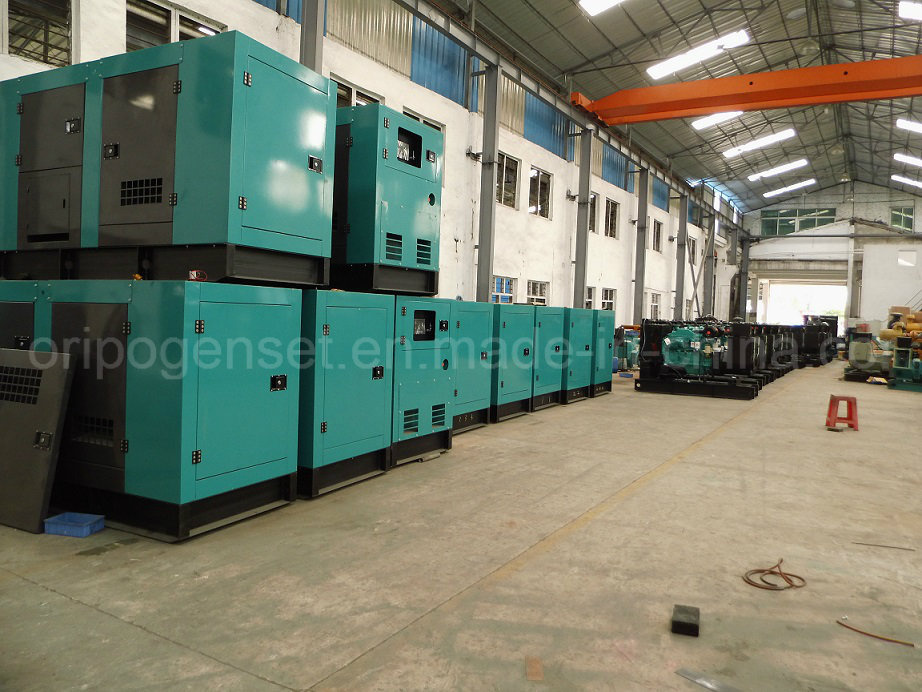

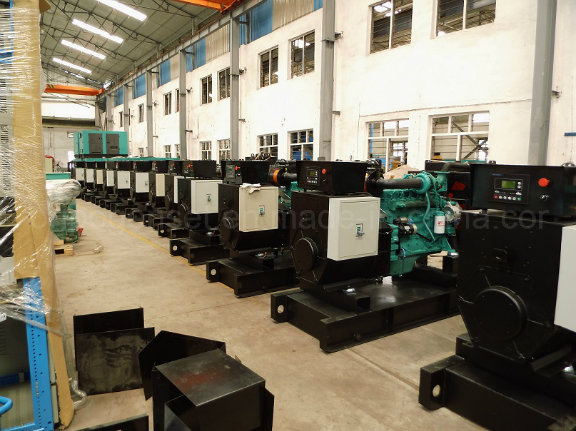

Location: Located in Foshan City , quite near guangzhou, welcome to our factory to check the products and the quality.
1.From Guangzhou Baiyun International airport to Oripo: a.It takes about 1 hour by car/taxi,it is about 58 kilometer; b.Or take the subway from JiChangNan station to HanXiChangLong Station(you need to transfer at the TiYuXiLu station to PanYu direction), then take a taxi to Oripo, it will take about 1.5 hour.
2.From Canton fair complex to Oripo: a. It takes about 30 minutes by car / taxi, it is about 32 kilometer; b. Take the subway from XinGangDong Station / PaZhou station to HanXiChangLong Station, then take a taxi to Oripo, It will take about 1 hour.
Service gurantee:
BEFORE SERVICE: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds ofinformation.including drawings,specifications and offical offer.
AFTER SERVICE: Guarantee for one year or 1000 running hours (accord to whichever reach first) from installed date. During the guaranteeperiod, such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide,you can contact yourcountry's after-sale or contact us for repairment;When replacing spare parts,please take some pics to describe the problems,we will solve it a.s.a.p.
maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Oripo Established in 1998, Oripo Power Engineering Co., Ltd is professional leading manufacturer, suppliers, exporter and authorized dealers of diesel gensets. With over 20, 000 square meters and a staff nearly 200, the headqauter is loacted in Foshan city, adjacent to Guangzhou which is the trade center of Guandong province. We offering power genset, industrial genset, silent genset, weather proof genset, Cummins genset, Perkins genset, Yuchai genset, Shanghai Dongfeng genset, Deutz genset, Weichai electric genset, China domestic genset, silent diesel generator, portable power generator, trailer diesel generator and electric power generator.
Currently, Oripo cooperated with multinational companies formed a strategic partnership. Import CUMMINS, PERKINS series generator sets, and purchase engine from with Cummins, SDEC, Yuchai, LOVOL, Deutz, alternater with STAMFORD, MARATHON, LEADTECH and other international or domestic famous brand. Establish a long-term friendly cooperation relations with the branded engine and alternator company, authorized to be the OEM partner, In 2009, Oripoe authorized by Cummins, Shanghai Dongfeng and Yuchai to provide OEM service. As professional qualified manufacturer provide OEM genset, spare parts, after sale service, in order to better serve customers and laid a solid foundation.
During the last ten odd years, Oripo has been dedicated to pursuing professional production, thus prevailing in the market with its superior quality, cutting-edge technology and tailor-made services. Moreover, with an endeavor to expand our business operations, we adhere to ethical business practices, transparent business dealings and work to attain the confidence and trust of our clients.
