| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Three Phase |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |
Product Description

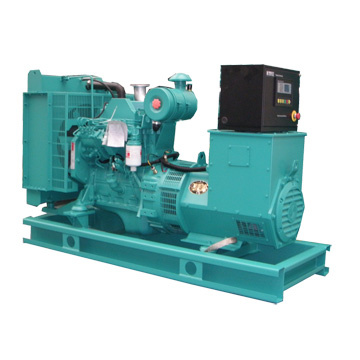

Cummins Electrical Generator:
Prime 104kw/130kVA standby 114kw/142.5kVA
Engine model 6BTAA5.9-G2
50Hz, 1500rpm, 400/230V (adjustable)
1. Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
2. Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
3. Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
4. Optional Accessory
Circuit breaker, Starting Battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.
|
Generator set |
Genset Model |
HCM143 |
|
Rating Power (KW/KVA) |
104/130 |
|
Standby Power(KW/KVA) |
114/142.5 |
|
Rating Ammeter(A) |
187 |
|
Diesel engine |
General data |
Engine model |
6BTAA5.9-G2 |
|
Prime Power(KW/HP) |
120/163 |
|
Standby Power(KW/HP) |
132/180 |
|
number of Cylinder & Configuration |
6 cylinders in line |
|
Bore X Stroke (mm) |
102X120 |
|
Displacement(l) |
5.9 |
|
Compression Ratio |
16.5:1 |
|
Governor type |
Electronic governor |
|
Rated RPM |
1500 |
|
Exhaust system |
Exhaust gas flow(m³/min) |
25 |
|
Max. Exhaust back Pressure(KPA) |
10 |
|
Air intake system |
Aspiration Type |
Turbo & Air-Air cooled |
|
Max. intake depression(mbar) |
6 |
|
Combustion air Volume(m³/min) |
8.2 |
|
Fuel system |
Rating Fuel Consumption(l/h) |
30 |
|
75% full Fuel Consumption(l/h) |
30.5 |
|
Lubrication system |
Total oil capacity(l) |
16.4 |
|
Oil pressure at rated rpm(KPA) |
345 |
|
Cooling system |
Total Coolant capacity(l) |
26 |
|
Fan cooling air flow(m³/min) |
210 |
|
Alternator |
Alternator model |
MGA270-104-4S |
|
Rating Voltage(V) |
400/230 |
|
Rating Capacity(KW/KVA) |
104/130 |
|
Eff.% |
91.6% |
|
Power Factor |
0.8 |
|
Exciting type |
Brushless self-exciter AVR |
|
Voltage regulation |
±1% |
|
No. of Phase |
3 phase 4 wire |
|
Enclosure Class |
IP121 |
|
Class of Insulation |
H |
|
Battery |
Rating Capacity(AH) |
2X100AH 12V |
|
Dimension |
Generator set dimension (LXWXH) |
2400x830x1430 |
|
Weight |
Generator set Net Weight (kg) |
1700 |
