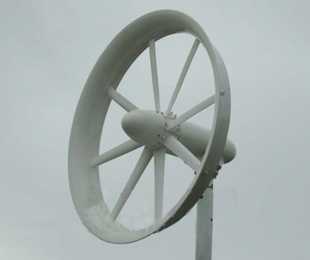

1. Easy Installed Wind Power Generator
2. Wind Power Generator Specification
1) Optimum aerodynamic shape design: High efficiency, low noise.
2) Centrifugal pitch controlled mechanism: 2m/s low wind speed startup; 3-12m/s wind speed, following wind rotor rotate speed to adjust blade angle at optimum TSR, run in high efficiency; Over rated wind speed, wind rotor never goes to over speed and has stable control; 3-25m/s wind speed, wind turbine can run smoothly.
3) Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
4) Safety control: Have aerodynamic brake, electric magnet brake, mechanical brake and manual stop mechanism. Adjust blade tip angle automatically at negative value when encountering strong typhoon and the blade at stalled condition and meanwhile wind rotor rotating speed was controlled and reduced.
5) Sealed slip ring, no cable twist; Carbon brush and slip ring clean; Good conductivity of electricity.
6) Streamline design, and good appearance
7) Long acting anticorrosive treats, no corrosion in 15 years.
|
Wind Power Generator Set |
|
Rated Power |
400W to 30kW |
|
Material and number of the blade |
Reinforced fibber glass*3 |
|
Application |
on-grid or off-grid |
|
Package |
plywoodcase |
|
Supply Scope |
Wind Turbine Body, Tower& Accessory, controller, battery, inverter |
|
Startup wind speed (m/s) |
2.5 |
|
Working wind speed (m/s) |
3~30 |
|
Survived wind speed (m/s) |
40~60 |
|
Battery Capacity (Ah) |
100~500 |
|
Speed regulation method |
Electrical magnet, Pitched controlled |
|
Stop method |
Brake manual |
|
Generator style |
Three phase, permanent magnet, AC |
|
Quality Control |
CE ISO9001: 2008 |
|
Warranty |
1 year |
|
Install |
very easy to install our wind turbine even without the heavy equipment |
|
AA Tower |
corrosion protection, steel tube mast with guy wires |
|
Noise Level |
≤ 65dB |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
