Purpose:
Brushless Generator
Power Supply:
9 to 33 VDC Continuous
Alternator Input Range:
15 - 305 V AC RM
Magnetic Input Range:
0.5 V to +/- 80 V
Control Modules:
Key Start Module,Auto Start Module,Amf Start Modul
Function:
Electrical Genset Generator Controller
Usage:
Distant Control,Multi-Protection, LED
Max Operate Current:
100mA at 12V 105mA at 24V
Frequency:
3.5Hz to 75Hz
Voltage Range:
15 V to 415 V AC (pH to N) 26 V to 719 V AC (pH to
Product Description
Generator Control Module DSE7220 for Deep Sea Controller dse electric plc 7220
Genset Controller Automatic Start Module DSE7220.
Generator Parts DSE7220 Made in China.
Description of dse electric plc 7220
Operating Voltage
DC8.0V to DC35.0V,Continuous Power Supply.
Power Consumption
<3W(standby:≤2W)
Alternator Input Range
15V - 360 V AC (ph-N)
3-Phase4-Wire
26V - 620 V AC (ph-ph)
3-Phase3-Wire
15V - 360 V AC (ph-N)
Single-phase2-wire
15V - 360 V AC (ph-N)
2-Phase3-Wire:
Alternator Frequency
50/60Hz
Speed Sensor voltage VPP
2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency
10000Hz (max)
Start Relay Output
16Amp Controller Power Voltage Output
Fuel Relay Output
16Amp Controller Power Voltage Output
Programmable Relay Output 1
7Amp 250VAC Voltage Free Output
Programmable Relay Output 2
7Amp 250VAC Voltage Free Output
Programmable Relay Output 3
16Amp 250VAC Voltage Free Output
Programmable Relay Output 4
16Amp 250VAC Voltage Free Output
Case Dimension
210mm x 152 mm x 48 mm
Panel Cutout
186mm x 141mm
C.T. Secondary
5A Rated
Working Conditions
Temperature: (-25~+70)ºC Humidity:(20~90)%
Storage Condition
Temperature::(-40~+85)ºC
Protection Level
IP55:When waterproof rubber seal installed between the controller and panel fascia.
IP42:When waterproof rubber seal is not installed between the controller and panel fascia.
Insulating Intensity
Object: input/output/power
Quote standard: IEC688-1992
Test way: AC1.5kV/1min leakage current:3mA
Weight
0.68kg

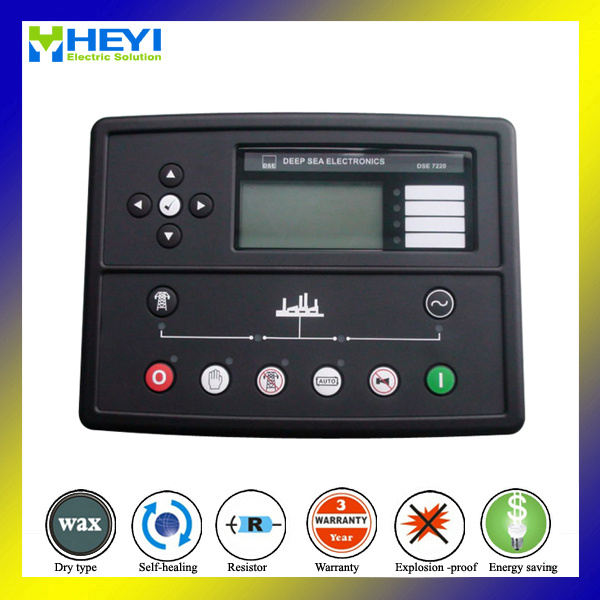

DSE7220 generator protection controller
Biogas Power Generation
* Natural Gas Power
* Field Engineering
* Electric Power
* Factory
* Fire-fighting
