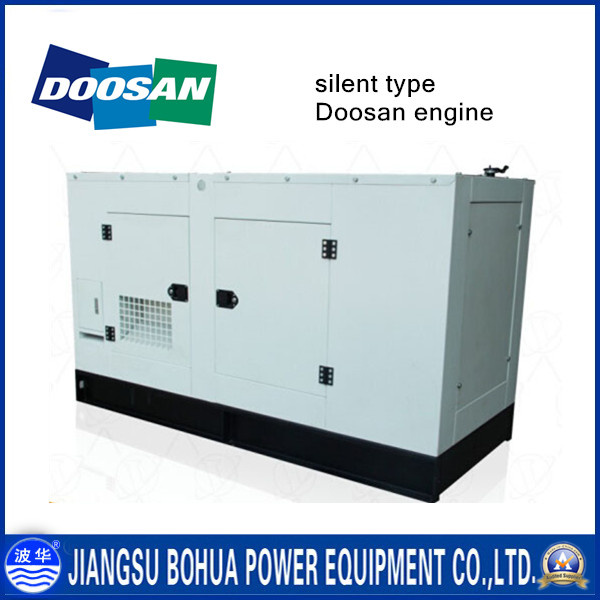

Doosan 160kVA/128kw Silent Diesel Generator with ISO&CE
Engine introduction:
The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of small volume, less noise, economic as well as reliable performance.
Now, Doosan introduces a new engine; The DP series; V-type engines for generator sets. An easy installation, high performance, fuel efficiency and durability are what engine users always need, which are in the new DP series V-type engine. With Doosan's engineering expertise, the new engine obtain the maximum power output and fuel efficiency while maintaining mechanical type that helps customers manage an engine more easily and conveniently.
Alternator: Stamford, LeroySomer, Marathon, Engga
Type: Brushless
Bearing: Single/ double bearing.
Damping windings: Full damping
Safety Guard Grade: IP21-23
Insulation grade: H grade
Short-circuit protection: Air switch
Control plane: Smartgen, Deepsea, ComAp
1) Automatic alarm system: The unit has the acousto-optics alarm system and arranged arrestor at any situation as the start defeat, the water is over temper temperature, the oil pulls down, over
Speed, over load and over current
2) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible Audible and visual alarm lamps and buzzers
Warranty and maintenance:
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
Product package:
Export Wooden Case (Standard) or Plywood Case
1 |
Power |
KVA/KW |
160/128 |
2 |
Voltage |
V |
400/230 |
3 |
Frequency |
HZ |
50/60 |
4 |
Speed |
RPM |
1500/1800 |
5 |
Power factor |
|
0.8 |
6 |
Ambient temp |
ºC |
40 |
7 |
Altitude |
M |
1000 |
8 |
Cooling method |
|
A/W |
9 |
100% load fuel consumption |
L/wh |
≤0.25 |
10 |
Phase |
|
3 Phase |
11 |
Protection grade |
|
lp23 |
12 |
Insulation class |
|
H |
13 |
Temperature rise |
|
H |
14 |
Engine Model |
Doosan |
P086TI-1 |
15 |
Generator Model |
BOHUA |
274F |
We are Jiangsu Bohua Power Equipment Co., Ltd. in China. We supply diesel generator set with good quality and low price.
We main produce and sell diesel generator sets from3kw-3000kw.
We also provide custom solutions for special products based on customers requirment.
