Payment & Shipping Terms | Supply Capacity |
---|
Payment Term: | L/C, WU, D/P, T/T, D/A | Production Capacity: | 10000SETS/MONTH |
MOQ: | 20 Set/Sets | Packing: | plywood case |
Means of Transport: | Land, Ocean, Air | Delivery Date: | 30days |

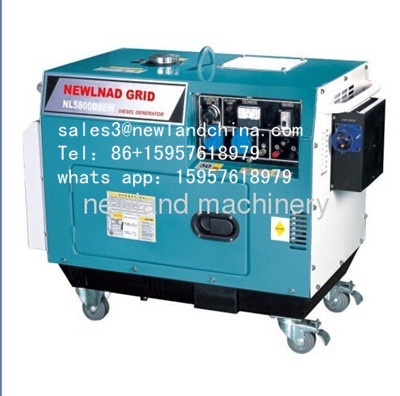

Model | NL5800DSEW |
Generator | Rated Frequency (Hz) | 50 | 60 |
Rated power (Kw) | 4.5 | 5 |
Max. Power(KW) | 5 | 5.5 |
Rated Voltage (V) | 120,220,230,240,110/220,120/240 |
DC Output | 12V/8.3A |
Phase Number | Single |
Excitation Mode | Self-excitation and constant voltage |
Power Factor (cos) | 1 |
Engine | Engine Model | 186FA |
Bore Stroke(mm) | 86*72 |
Displacement (cc) | 418 |
Rated Speed (R/Min) | 3000 | 3600 |
Fuel Consumption(G/KW.H) | 360 |
Fuel Tank Capacity (L/US.Gal) | 15/3.96 |
Continuous Running Time (HR) | 8 |
Unit | Starting system | Electric start |
Noise Level(dBA/7m) | 72 |
Net weight (kg/lbs) | 165/363.8 |
Dimension(L*W*H) (mm)/(inch) | 930*520*685 |
36.6*20.5*27.0 |
Packing (mm)/(inch) | 950*550*770 |
37.4*21.7*30.3 |
Container Qty (20FT/40FT/40HQ) | 48/96/144 |
Category: Air cooled silent diesel generator
Related Category: Air cooled open diesel generator Water cooled diesel generator
Taizhou Newland Machinery Co., Ltd, originated from factory, is a professional supplier on gasoline generator, diesel generator, water pump, air compressor and high pressure washer. We have more than 10 years experiences of these products designing, producing, and exporting.
At present we mainly have customers in European market, Africa market, South America market, South Asia and Middle East market etc. We have built our mature markets sales nets. We hope to enlarge and develop our distributing channels and system, to take our better products and services to our partners and customers, to take more profits to our sincere friends. We hope to develop with our partners and cooperators sinc...[Click for details]
Our Product/Service: Gasoline generator, gas generator, power generator
