| Prod Model: |
GF2-500kw |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
Product Description

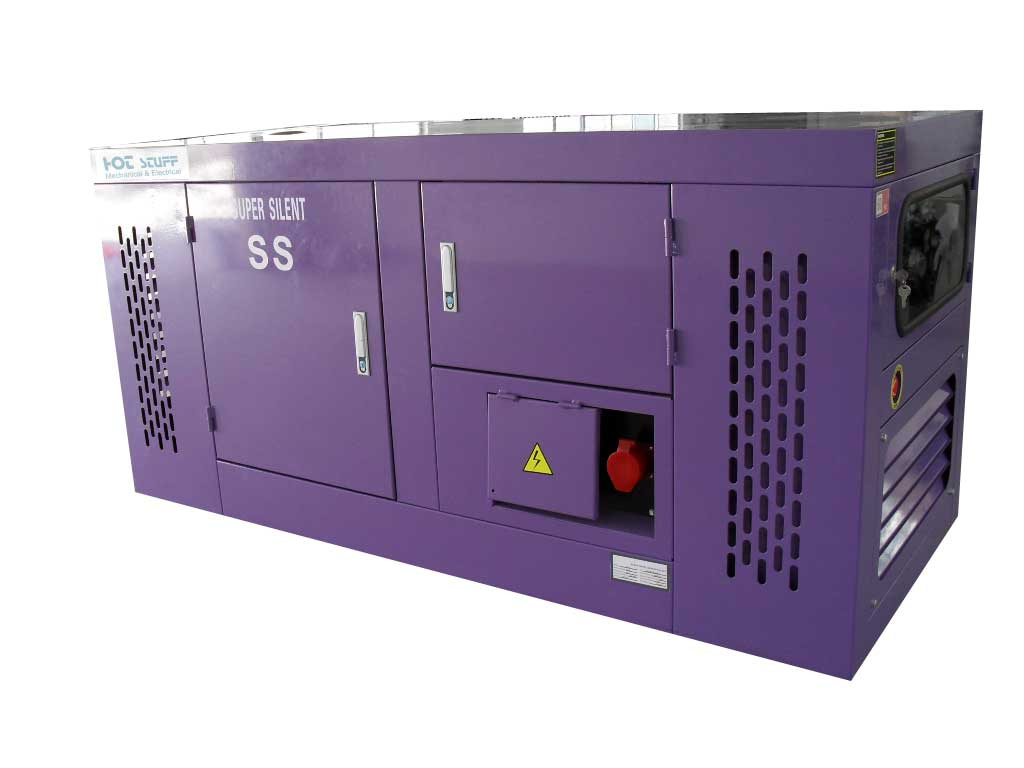

Big power diesel generators set: A compact structure and strong soundproof enclosure which has an elegant appearance is easy to be assembled or disassembled adn reduce noise level effectively. The sets are operated conveniently. Full control panel with power indicator light, oil light. Emergency shutdown for low oil pressure adn high water temperature, large bottom fuel tank ensure long working time.
Key star
Cummins engine
ATS to control with full AUTO and AVR Regulate voltage
| MODEL | GF2-667KVA |
| Powered by Cummins Engine |
| Prime Power (50HZ/60HZ) | 500KW/667KVA |
| Standby Power (50HZ/60HZ) | 500kw/667KVA |
| Power Factor | 0.8 Lagging |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature,
Over-speed, Over-current |
| Engine Model | KTAA19-G5 |
| Cylinders | 12 |
| Cylinder Arrangement | V |
| Bore x Stroke(mm) | 159X 159 |
| Compression Ratio | 15.5:1 |
| Speed | 1500rpm/1800rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 175 |
| Engine Displacement (L) | 38 |
| Inspiration (L) | Turbocharged Intercooler |
| Lube Volume (L) | 135 |
| Coolant Volume (L) | 180 |
| Noise (Db) | ≤ 105 |
| Governor Type | Electrical Governing |
| Alternator Model | Stanford HCI634G |
| Voltage | According to customers request |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 5000 |
| Dimensions (L x W x H) mm | 3600*1500*2010 |
| Optional | |
| | ATS (auto transfer switch) |
| | BatteryCharger |
| | Base Fuel Tank (for open type) |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
