Output Type:
AC Three Phase
Cooling Method:
Air Cooled
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Self-Starting Diesel Generator
Product Description

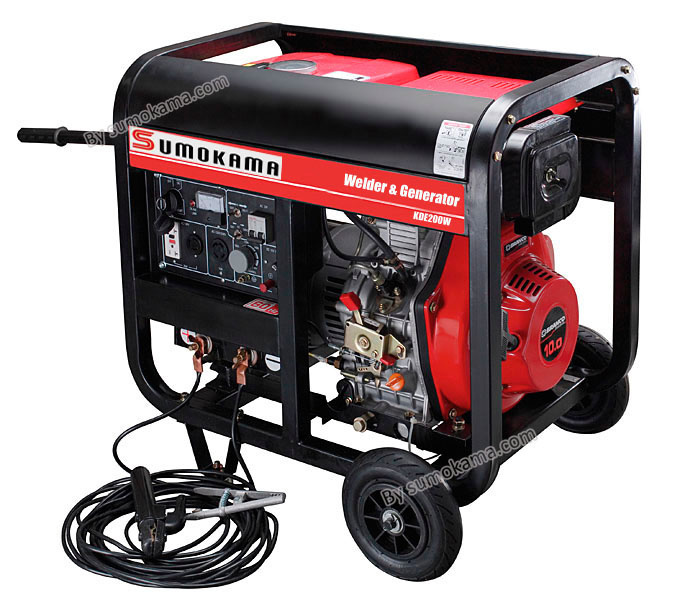

Diesel welding generator description
* One unit, dual function
* Simultaneous use
* Perfect welding
* Excellent electricity
* Easy maneuver ability
* Wide application
Model
KDE200W
Frequency (HZ)
50
60
Rated Output (KVA)
2.2
2.5
Rated Voltage (V)
230
240
Rated current (A)
8.7
9.2
Rated rotation speed (rpm)
3000
3600
No-load welding voltaged: V
65-67
Rated welding voltaged: V
26-30
Rated welding DC: A
160
Current adjusting extension
50-190
Welding Electrode φ (mm)
1.6-4.0
Welding load continuous ratio
50%
Phase No.
Single phase
Power Factor
COS=1
Excitation Mode
Self-excitation, 2 pole and constant voltage (AVR)
DC Output
12V. /8.3A , Connection Pole Output
Structure Type
Open frame type
Noise Level (7m) dB(A)
75-79
Engine Model
KM186FA
Engine type
Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm)
86× 72
Displacement (L)
0.418
Rated Power KW
5.7/3000
6.3/3600
Fuel comsumption Rate(g. kw/h)
275.1
281.5
Compression Ratio
19: 1
Lubrication System
Pressure Splashed
Starting System
Electric Start with 30Ah MF battery
Fuel Type
0#(summer), -10#(winter), diesel
Lube Oil Brand
SAE10W30 (above CD Grade)
Lube Capacity (L)
1.65
Fuel Tank Capacity (L)
12.5
Continuous Running Time (hr)
12
Overall Dimension: LxWxH (mm)
750 x 520 x 660
Dry Weight (Kg)
110
Quantity in 20FT
99 Pcs
We reserve the right to change specifications without notice
