| Prod Model: |
DJ800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
Jichai |
| Engine Model No.: |
8190zld |
| Alternator: |
Stamford, Simens, Marathon, Farady |
| Prime Power: |
700kw/875kVA |
| Dimension: |
5600*1750*2800mm |
| Weight: |
8008kg |
| Frequency: |
50/60Hz |
| Speed: |
1500/1800rpm |
| Standards: |
Jb/T 1403-1999, GB/T 12501-1990 |
| Warranty: |
1 Year or 1500 Running Hours |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description

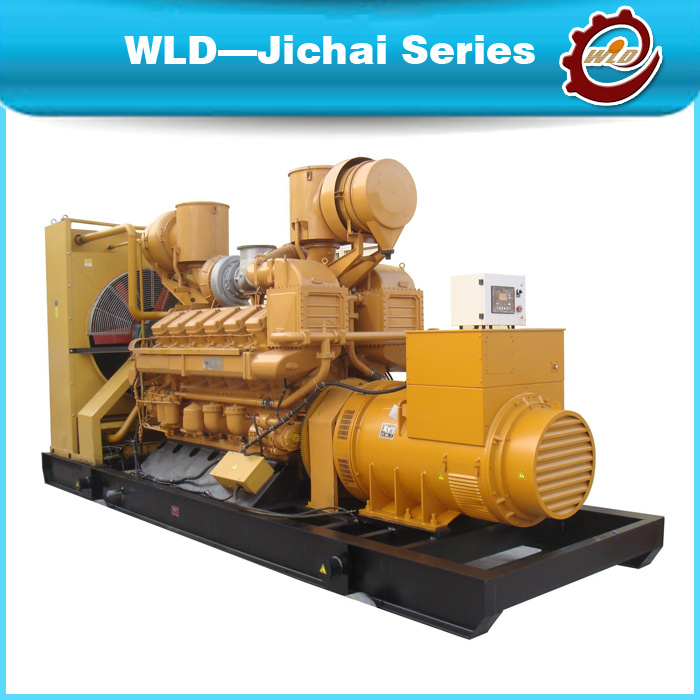

700KW/875kVA Jichai Diesel power Generators Parameter
Genset Specification:
Genset Modle: DJ700
Dimension: 5600*1750*2800mm
Weight: 8008kg
Prime Power: 700kw/875kVA
Rated current: 1260A
Rated Voltage(V): 400/230
Speed: 1500/1800rpm
Frequency: 50/60Hz
Output Type: AC Three Phase
Power factor (Cos Phi): 0.8
Altitude: ≤ 1000 m
Base Fuel Tank: Eight hours(Standard)
Standards: JB/T 1403-1999, GB/T 12501-1990
Warranty: 1 Year or 1500 running hours
Engine Specification:
Engine model: 4BT3.9-G2
Type of Governor: Electronic governor
Type: 8 cyclinder in line
Bore*Stroke(mm): 190× 210
Compression ratio: 17.3: 1
Voltage regulation: ± 0.5%
Fuel consumption rate: ≤ 205g/kw. H
Alternator Specification:
Brand: Stamford, Simens, Marathon, Farady at option
AVR model: R448 V50
Number of phase: 3
Overspeed: 2250RPM
Exciter type: AREP
Sustained short circuit current 300% (3 IN): 10s
Insulation class: H
Protection class IP22/IP23
Total harmonics (TGH/THC): < 3.5 %
Wave form NEMA = TIF: < 50
Wave form i. e. C. = THF: < 2%
Bearing: Single
Coupling: Direct
Control panel:
Automatic control panel(AMF), LED display.
Four protection systems
Emergency stop
DSE/COMAP/SMARTGEN/HARSON
Optional:
Trailer type
Soundproof / water proof
ATS(automatic transfer switch)
Water Heater
Parallel system
Remote system
Soundproof/Silent box:
Excellent ventilation
Fuel tank mounted on baseframe for 12 Hours working
Highly Corrosion Resistant construction
Excellent Access for Maintenance
Security and Safety
1m<80DBA / 7m<70DBA
