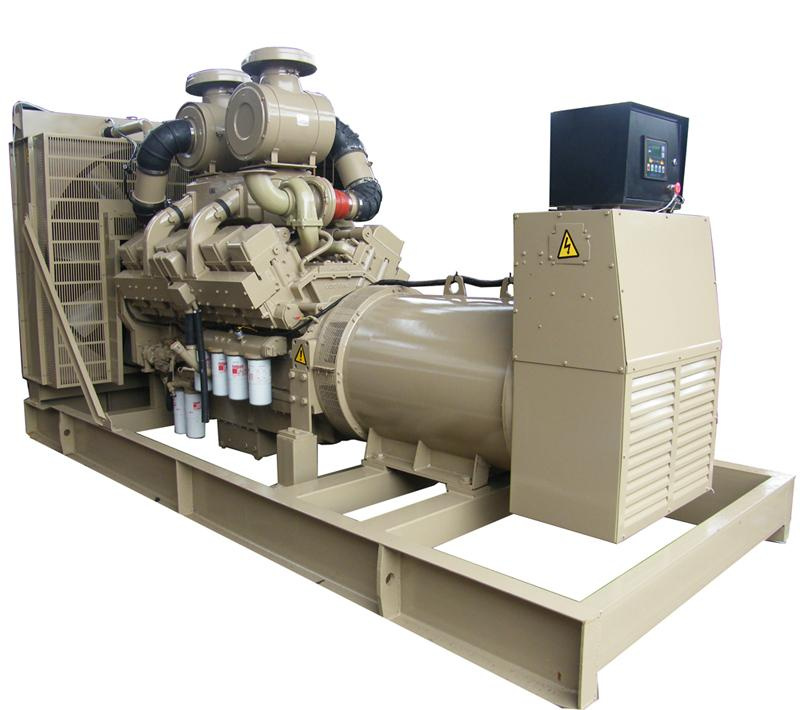

1000kVA Cummins diesel generator
1-Cummins powered generator
2-Cummins global guarrantee
3-Cummins OEM
New Cummins power diesel generating sets
Generator set:
Model: SFJ1100
Rated Power: 800KW/100kVA
Standby Power: 880KW/1100kVA
Rated speed: 1500 r/min
Noise Level: 70-75dB
Factor: COSΦ =0.8(lagging)
Phase/wire: 3 phase 4 wire
Rated Currency: 1520 AMPS
Protection: Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine of diesel generator set:
Brand: Cummins
Model: KTA38-G5
Origin: Manufactured by Chongqing Cummins Engine Co., Ltd
Cylinders: 12
Engine Power: 880kw/1100kVA
Start Model: DC24V electric start
Cylinders Layout: Line
Displacement: 38L
Speed-Governing: Electric
Steady Speed Droop: ≤ 1%
Alternator of diesel generator set:
Brand: Stamford
Model: HCI634J
Protection: IP23
Origin: Manufactured by Cummins Generator Technologies China
Rated Voltage: 220/380V(Adjustable)
Frequency regulation: ≤ ± 0.5 %(stable)
Voltage Control: AVR
Controller of generator set:
Brand: DEEPSEA Smartgen
Optional for diesel generator set:
1. ATS(Automatic Transfer switch), it can start generator set when the main power is off, once the main power comes back, the generator set will turn off automaticly.
And ATS have the function of AMF (automatic Main power failure)
2. MCCB(Molded case circuit breaker)
It can protect the loading machine and the diesel generator.
3. Battery charger(float charger)
When the generator hasn't been used for a long time, the batteries will be no power, in that way, you can't start the generator, but the battery charger can charge the batteries from the main power.
4. Extra daily fuel tank
It will be requested while the base fuel tank capacity is not enough for daily fuel consumption
5. Paralleling system
This system can make several generators work together and automatically distribute the load according to set.
6. Remote Control Panel
Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.
7. Water separate(additional cooling system)
If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.
8. Spare Parts of Cummins engine
All the spare parts of each Cummins engine are supplied at very competitive price.
