North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase

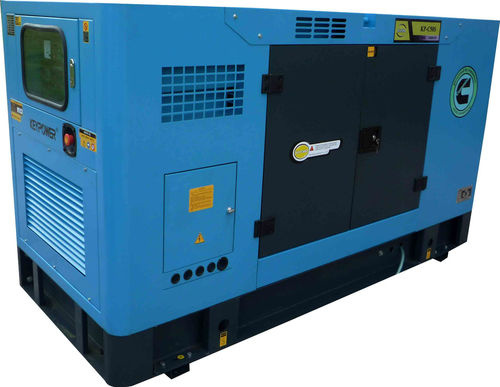

Product Description
Engine: PERKINS, 4006-23TAG2A
Charge alternator: 24V
Governor: Electrical
Generator: STAMFORD, LVI634B
Single bearing alternator IP 23
Insulation class H/H
Radiator 50 degree max with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
24V battery and cable
Industrial muffler
User's manual
GEN-Set
Dimension(L×W×H)
Weight
OpenType
3930mm×1670mm×1980mm
6278Kg
SilentType
9120mm×2438mm×2591mm
11778Kg
Voltage
Hz
Phase
Powerfactor
StandbyAMP
StandbyRating
(KVA/KW)
PrimeRating
(KVA/KW)
400/230
50
3
0.8
1156
800/640
725/580
Manufacturer/Model
PERKINS 4006-23TAG2A 4-cycle
Cylinder/Arrangement
6/ L
Displacement
22.921L
BoreandStroke
160mm×190mm
Compressionratio
13.6 :1
RatedRPM
1500RPM
Max.stand bypowerat rated RPM
711KW
Frequencyregulation,steadystate
± 0.25%
Governor:type
Electrical
Exhaustgasflow
180m³/min
Exhaust temperature
430 degree celsius
Maxbackpressure
610mmH2O
Radiator&enginecapacity
105L
Maxwatertemperature
98 degree celsius
Thermostat
71-85 degree celsius
Manufacturer/Type
STAMFORD LVI634B
Numberofphasepower
3
Factor(CosPhi)
0.8
Pole:number
4
Bearing:number
1
Coupling
Direct
Excitertype
PMG
lnsulation: class, temperature rise
H/H
protection
IP23
