Cooling Method:
Wind Cooling
Stroke:
Four Stroke
Installation Method:
Portable
Type:
Basic Diesel Generator
Product Description

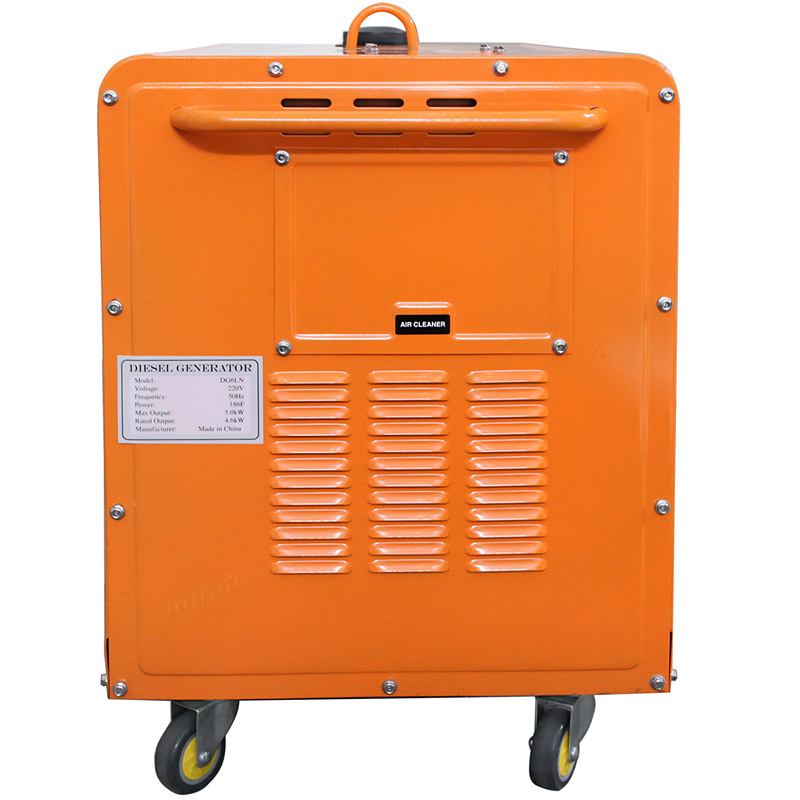

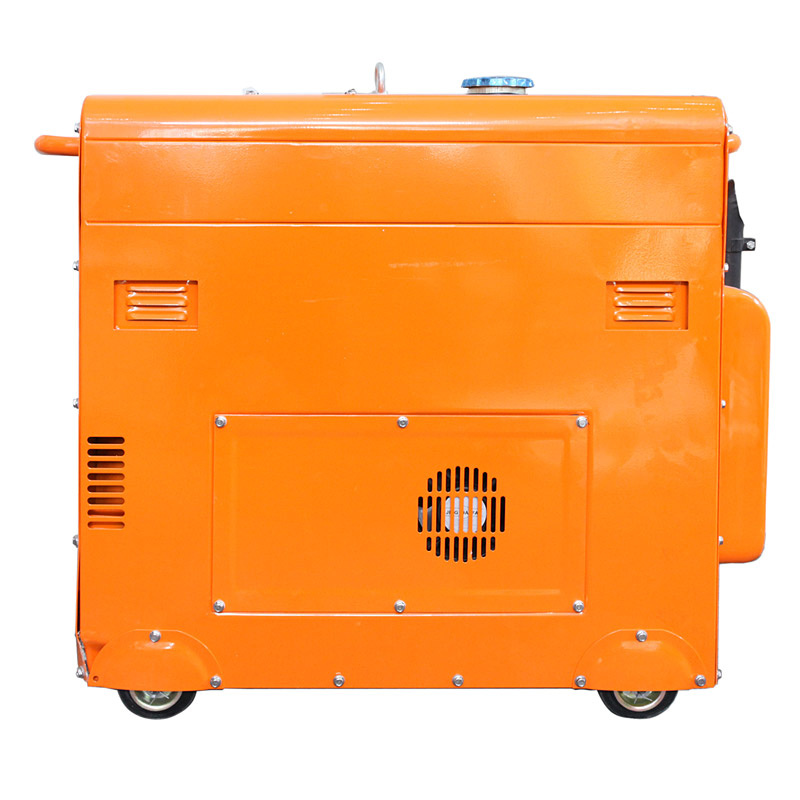

DIESEL GENERATOR SET
Introduction Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificate. Have steady quality and competitive price. Sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow!
Diesel Generator with CE andISO9001(DG6LN-3P) Diesel Generator: STANDARD FEATURES Voltmeter yes AC Output Socket: 2 AC circuit breaker: Yes Low Oil alert: Yes Timemeter: Yes Big Wheels: Yes
OPTIONAL FEATURES ATS optional Remote control optional Battery: Optional Heater: Optional Fan: Optional
Advantages 1. Diesel generator set with CE certificate 2. Skilled technicians and professional engineers 3. Every spart part supplier is chosen strictly based on excellent quality 4. Complete production procedures, strict test center, good package 5. Warranty: Running for one year 6. Standard operation / technical maintenance /manual/tool kits 7. Any questions. Pls do not hesitate to contact our salesperson
Model
DG6LN-3P
Frequency [HZ]
50/60
Rated voltage [V]
110/220/ 230/115
Rated output power [Kw]
4.5/50Hz, 4.8/60hz
Max output power [Kw]
5/50hz, 5.5/60hz
Rated rotation speed [rpm]
3000/3600
DC output
12v/8.3A
Phase number
Three
Noise level [dB(A)@7m]
72
Overall dimension(LxWxH)[MM]
965x565x725
Dry weight[kg]
160
Structure type
Silent
Excitation model
Self-excitation with brush, 2 poles
Engine Model
ETK186FAE
Engine Type
Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine
Cooling type
Force air-cooled
Bore x Stroke [MM]
86x72
Displacement[ml(cu. In)]
418(25.51)
Rated power[KW(hp)/rpm]
6.0(8.0)/3000 6.6(9.0)/3600
Max power[KW(hp)/rpm]
6.1(8.3)/3000, 6.8(9.3)/3600
Starting system
Electric start
Rotation direction(view from flywheel)
Clockwise
Fuel Tank Capacity [L]
15
Lube-oil Capacity [L]
1.65
