Product Description
STANDARD FEATURES
With Voltmeter
With AC Output Socket: 2
With AC circuit breaker
With Low Oil alert
With Timemeter
With Four Wheels
OPTIONAL FEATURES
ATS: Optional
Remote control: Optional
Battery: Optional
Heater: Optional
Fan: Optional
Product Description

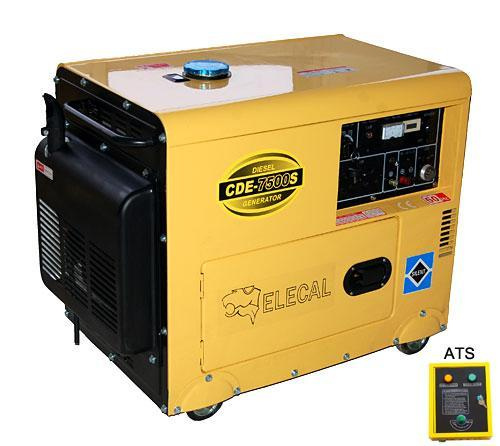

1. CE approved, powered by ELECAL advanced air-cooled diesel engine.
2. Noise-reducing enclosure, made of high-efficient noise-proof material.
3. Ideal for home emergency use or as standby power supply.
4. Large fuel tank, ensuring hours of continuous output.
5. Advanced direct fuel injection system.
6. Large silent muffler & air-cleaner, reducing exhaust and intake noise.
7. A variety of specially-designed control panels available for different markets.
| Model | CDE7500S |
| Frequency [HZ] | 50/60 |
| Rated voltage [V] | 110/220/ 230/115 |
| Rated output power [Kw] | 4.5/50Hz, 4.8/60hz |
| Max output power [Kw] | 5/50hz, 5.5/60hz |
| Rated rotation speed [rpm] | 3000/3600 |
| DC output | 12v/8.3A |
| Phase number | Three |
| Noise level [dB(A)@7m] | 72 |
| Overall dimension(LxWxH)[MM] | 965x565x725 |
| Dry weight[kg] | 160 |
| Structure type | Silent |
| Excitation model | Self-excitation with brush, 2 poles |
| Engine Model | CH186FAE |
| Engine Type | Single-cylinder, Vertical, 4-Stroke,
Direct injection, Air-cooled diesel engine |
| Cooling type | Force air-cooled |
| Bore x Stroke [MM] | 86x72 |
| Displacement[ml(cu. In)] | 418(25.51) |
| Rated power[KW(hp)/rpm] | 6.0(8.0)/3000 6.6(9.0)/3600 |
| Max power[KW(hp)/rpm] | 6.1(8.3)/3000,6.8(9.3)/3600 |
| Starting system | Electric start |
| Rotation direction(view from flywheel) | Clockwise |
| Fuel Tank Capacity [L] | 15 |
| Lube-oil Capacity [L] | 1.65 |
Fuzhou Changhua Power Machinery Co., Ltd. Is engaged in research, development, manufacture and selling in various kinds of alternator, engine, generator, water pump. The company with 8, 000 m2 workshop and employs more than 200 staff workers, among which 30 are engineers or technicians. It operates an advanced production line with whole set of inspection and testing equipment and a
Yearly capacity of 200, 000 sets of machines. The company put through EPA, CE, SONCAP and ISO9001, Certificate.
"Reputation is the first, Consumers are supreme"is our persistent working tenet. We have and will serve the consumers with high quality, reasonable price, perfect service and flexible working way.
