| Prod Model: |
kh-115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:T Jiangsu China: |
Brand Name:T Lingyu |
| Output Type:T AC Three Phase: |
Speed:T 1500/1800/3000/3600rpm |
| Frequency:T 50/60Hz: |
Rated Power:T 100-600kw |
| Rated Voltage:T 110~570V: |
Rated Current:T AMPS |
| Payment Terms:T T/T L/C Credit: |
Fan:T Aluminum Fan |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Six Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Single Phase |
Product Description

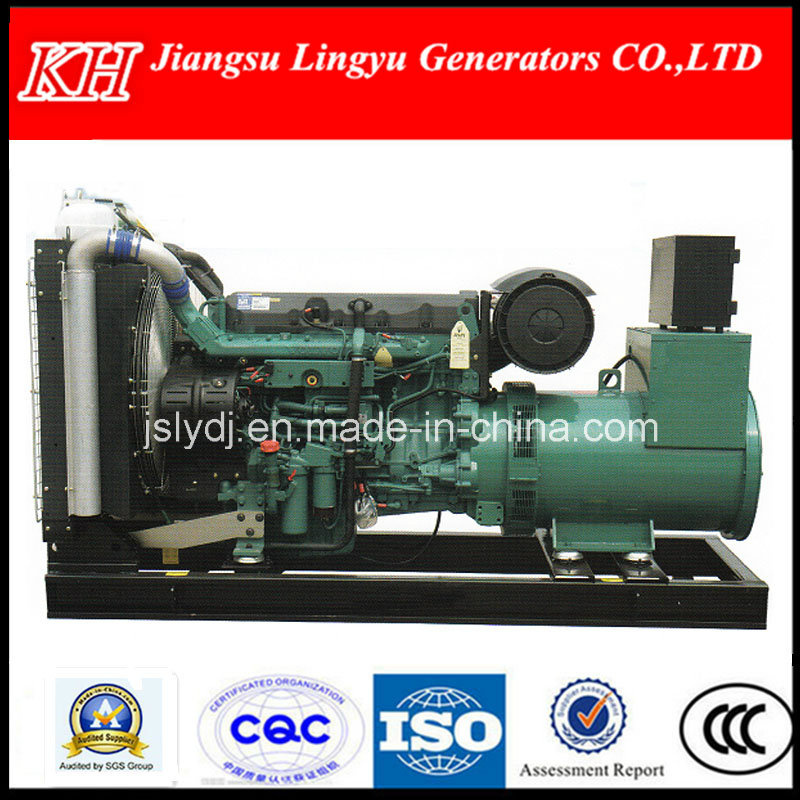

143.75KVA/115KW Volvo(Silent)Diesel Generator Set
1.Model: KHI115-14
2.Engine: TAD532GE
3.Prime Power: 115KW/143.75KVA
4.Standby Power: 120KW/150KVA
5.Frequency: 50HZ
6.Our Promise: All the products from our company are brand new and tested strictly
Technical Parameters of the Set:
Generating set | Prime power | 115KW/143.75KVA |
| Standby power | 120KW/150KVA |
| Rated rotate speed | 1500 RPM |
| Rated frequency | 50 Hz |
| Number of phase | 3 |
| Rated voltage | 400V |
| Noise dB(A) @7m | 70 |
| Outline dimension (mm) | 2250*866*1593 |
Alternator | Model of generator | KHI-115-1-4 |
| Voltage regulation rate | ≤±1% |
| Voltage change rate (steady state) | ≤±1% |
| Frequency regulation rate | ≤±5% |
| Frequency change rate (steady state) | ≤±0.5% |
| The transient voltage regulation rate | ≤15% |
| Transient frequency modulation rate | ≤5% |
| Frequency stability time | ≤3S |
| Voltage stability time | ≤3S |
| Starting the success rate | 100% |
Engine | Model of engine | TAD532GE |
| Number of cylinders | 6 |
| Speed governor | Mechanical control of motor speed |
| Cooling system | Water circulation cooling |
| Oil capacity | 20 |
| Fuel consumption | ≤218 |
| AC charger | DC24V |
Specifications:
A. CE certificate
B. ISO9001: 2000 certificate
C. OEM manufactory
D. Good quality and low price
Engine features:
*Engine and alternator shall be mounted on a frame steel skid.
*Built-in rubber damper for anti-vibration.
*Small size, low weight, easy to operating, installation and maintence.
*World famous brand AC alternator, Stamford, Marathon, Leroy Somer.
*Advanced and reliable controll module: Auto start, remote control by PC.
*Full range protect function and alarm shutdown feature.
Alternator features:
*Brushless, 4 poles, rotation magnet.
*IP21-23(NEMA1) enclosure is standard for all industrial alternators.
*The insulation system is Class H.
*Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
*Standard 2/3 pitch windings avoid excessive neutral currents.
*AVR auto voltage regulator, auto exciter, auto adjustment.
*Wide range of flange adaptors and single bearing disc coupling.
Soundproof/Silent Box:
I. Excellent ventilation
II. Oil tank mounted on base frame for 12 Hours working.
III. Highly Corrosion Resistant construction
IV. Excellent Access for Maintenance
V. Security and Safety
VI. 1m<80DBA / 7m<70DBA
Control Panel:
I. Automatic control panel (AMF), LCD display
II. Four protection systems
III. Emergency stop
Optional:
I. Trailer type
II. Soundproof / water proof
III. ATS (automatic transfer switch)
IV. Parallel system
V. Remote system
Commercial Conditions:
. Port of loading: Shanghai port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality.
To know more details, please feel free to contact us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
