Product Description

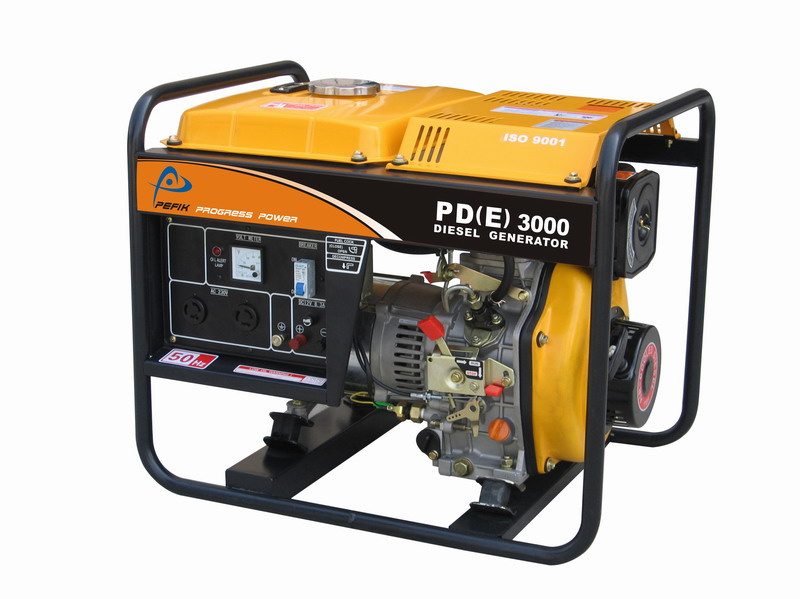

MODEL PD(E)3000
Rated frequency (Hz) 50 60
Rated output (kW) 2. 8 3. 3
Max output (kW) 3 3. 6
DC output 12V-8. 3A
Power factor cosφ 1
Phase number Single-phase
Fuel tank capacity(L) 12. 5
Overall dimension [mm ](L*W*H) 640*480*530
Packing dimension [mm ](L*W*H) 655*495*550
Net weight (kg) 67(73)
Gross weight (kg) 71(77)
Starter system Recoil starter ( electric starter )
Engine model PD178FG(E)
Engine type Single cylinder, 4-stroke, air-cooled,
Vertical, diesel engine
Bore * stroke (mm) 78*62
Displacement (cc) 296
Rated rotation speed (rpm) 3000 3600
We are one of the manufacturers and exporters in China Fuzhou.
Main product is diesel and gasoline engine series, generator set, water pump series, generator and welding set, sound proof type of generator set.
With years of experience in industry and high technic, we have expertise to provide you good quality and low price system.
Saving energy; Easy to operate; High security; Long stable runing time; Light weight; Low noise is our permanent target. All of our products have passed CE and ISO9001: 2000 approved and highly accepted in Europe, Africa, South America and Southeast Asia countries.
