Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase

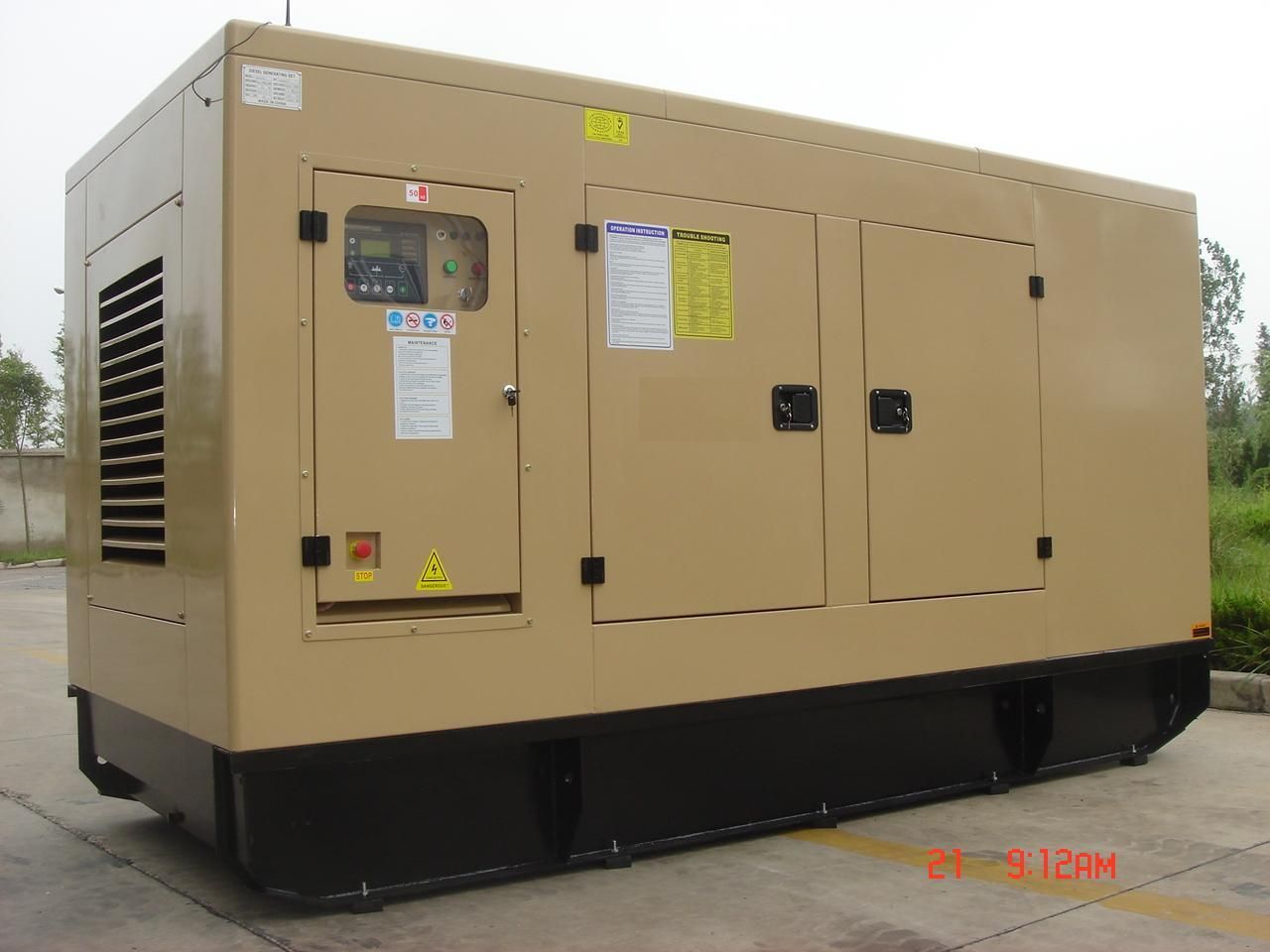

Product Description
Standby power: 2250kVA/1800KW
Prime power: 2058kVA/1646KW
Engine: PERKINS, 4016TAG2A
Charge alternator: 24V
Governor: Electrical
Generator: STAMFORD, PI734F
Single bearing alternator IP 23
Insulation class H/H
Radiator 50 degree max with coolant cap
Skid and vibration isolators
Dry type air filter
Main line circuit breaker
24V battery and cable
Industrial muffler
User's manual
GEN-Set
Dimension(L×W×H)
Weight
OpenType
5650mm×2780mm×3600mm
14361Kg
SilentType
12192mm×3100mm×4000mm
21861Kg
Voltage
Hz
Phase
Powerfactor
StandbyAMP
StandbyRating
(KVA/KW)
PrimeRating
(KVA/KW)
400/230
50
3
0.8
3247
2250/1800
2058/1644
Manufacturer/Model
PERKINS 4016TAG2A 4-cycle
Cylinder/Arrangement
16/V
Displacement
61.123L
BoreandStroke
160mm×190mm
Compressionratio
13.6 :1
RatedRPM
1500RPM
Max.standbypoweratratedRPM
1937KW
Frequencyregulation,steadystate
± 0.25%
Governor:type
Electrical
Exhaustgasflow
387m³/min
Exhaust temperature
493 degree
Maxbackpressure
673mmH20
Manufacturer/Type
STAMFORD PI734F
Numberofphasepower
3
Factor(CosPhi)
0.8
Pole:number
4
Bearing:number
1
Coupling
Direct
Excitertype
PMG
lnsulation: class, temperature rise
H/H
protection
IP23
