| Prod Model: |
SG2500, SG3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
Product Description

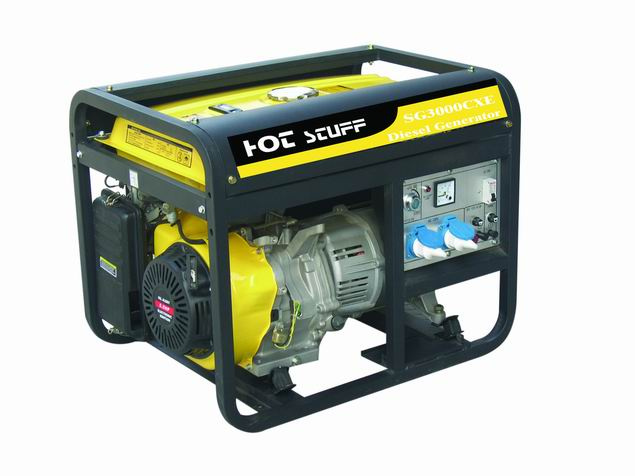

2kw, 3kw, air-cooled diesel generator. With voltmeter, AC output socket, AC air breaker, oil warning lamp, oil alert. Optional functions: DC air breaker, timermeter, three phase voltage, current meter, ATS, remote control, welding.
|
Model no: |
SG2500 |
|
Rated frequency(Hz) |
50 60 |
|
Rated voltage(V) |
230 240/120 |
|
Rated current(A) |
7.4 8.3/16.7 |
|
Rated output power(KW) |
1.7 2.0 |
|
Rated rotation speed(rpm) |
3000 3600 |
|
DC output |
12V 8.3A |
|
Power factor(cos) |
1 |
|
Phase number |
Single phase |
|
Noise level[dB(A)@ 7m ] |
72-77 |
|
Overall dimension(L× W× H)[mm(in)] |
575× 400× 530(22.64× 15.75× 20.87) |
|
Dry weight[kg(lbs. )] |
60(132) |
|
Structure type |
Open-frame type |
|
Coupling mode |
Rigid cooping by rotor drive shaft |
|
Engine model |
SR170F |
|
Engine type |
Single cylinder, 4-stroke, air-cooled, |
|
direct injection, diesel engine |
|
|
|
Displacement[ml(cu. in)] |
211(12.88) |
|
Compression ratio |
20: 01 |
|
Rated power[kW(Hp)/rpm] |
2.5(3.4)/3600 |
|
Starting system |
X: recoil starter E: electric starter |
|
Rotation direction(View from flywheel) |
Clockwise |
|
Fuel |
0#(summer)-10#(winter) light diesel oil |
|
Lube |
SAE10W30(above CC grade) |
|
Low oil pressure alert system |
With |
|
Model no: |
SG3000 |
|
Rated frequency(Hz) |
50 60 |
|
Rated voltage(V) |
230 240/120 |
|
Rated current(A) |
12.2 13.8/27.5 |
|
Rated output power(KW) |
2.8 3.3 |
|
Rated rotation speed(rpm) |
3000 3600 |
|
DC output |
12V 8.3A |
|
Power factor(cos) |
1 |
|
Phase number |
Single phase |
|
Noise level[dB(A)@ 7m ] |
72-77 |
|
Overall dimension(L × W × H)[mm(in)] |
575 × 400 × 530 (22.64 × 15.75 × 20.87) |
|
Dry weight[kg(lbs. )] |
65(143) |
|
Structure type |
Open-frame type |
|
Coupling mode |
Rigid coupling by rotor drive shaft |
|
Engine model |
SR178F |
|
Engine type |
Single cylinder, 4-stroke, air-cooled, |
|
direct injection, diesel engine |
|
|
|
Displacement[ml(cu. in)] |
296(18.06) |
|
Compression ratio |
20: 01 |
|
Rated power[kW(Hp)/rpm] |
3.7(5.03)/3000 |
|
Starting system |
X: recoil starter E: electric starter |
|
Rotation direction(View from flywheel) |
Clockwise |
|
Fuel |
0#(summer)-10#(winter) light diesel oil |
|
Lube |
SAE10W30(above CC grade) |
|
Low oil pressure alert system |
With |
As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
