Prod Model: |
AC206 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Alternator: |
Leroy Somer, Stamford, Marathon |
Speed: |
1500rpm, 1800rpm |
Frequency: |
50Hz, 60Hz |
Rated Voltage: |
220/380V, 230/400V, 110/220V, 240/416V, |
Controller: |
Deepsea, Woodward, Deif, Comap, Smartgen |
Quality Control: |
ISO9001, ISO14000, CE, Soncap |
Governor: |
Electrical Governor |
Breaker: |
MCCB, Acb |
Stroke: |
Four Stroke |
Type: |
Self-Starting Diesel Generator |
Cooling Method: |
Water Cooling |
Installation Method: |
Portable |
Output Type: |
AC Three Phase |
Product Description

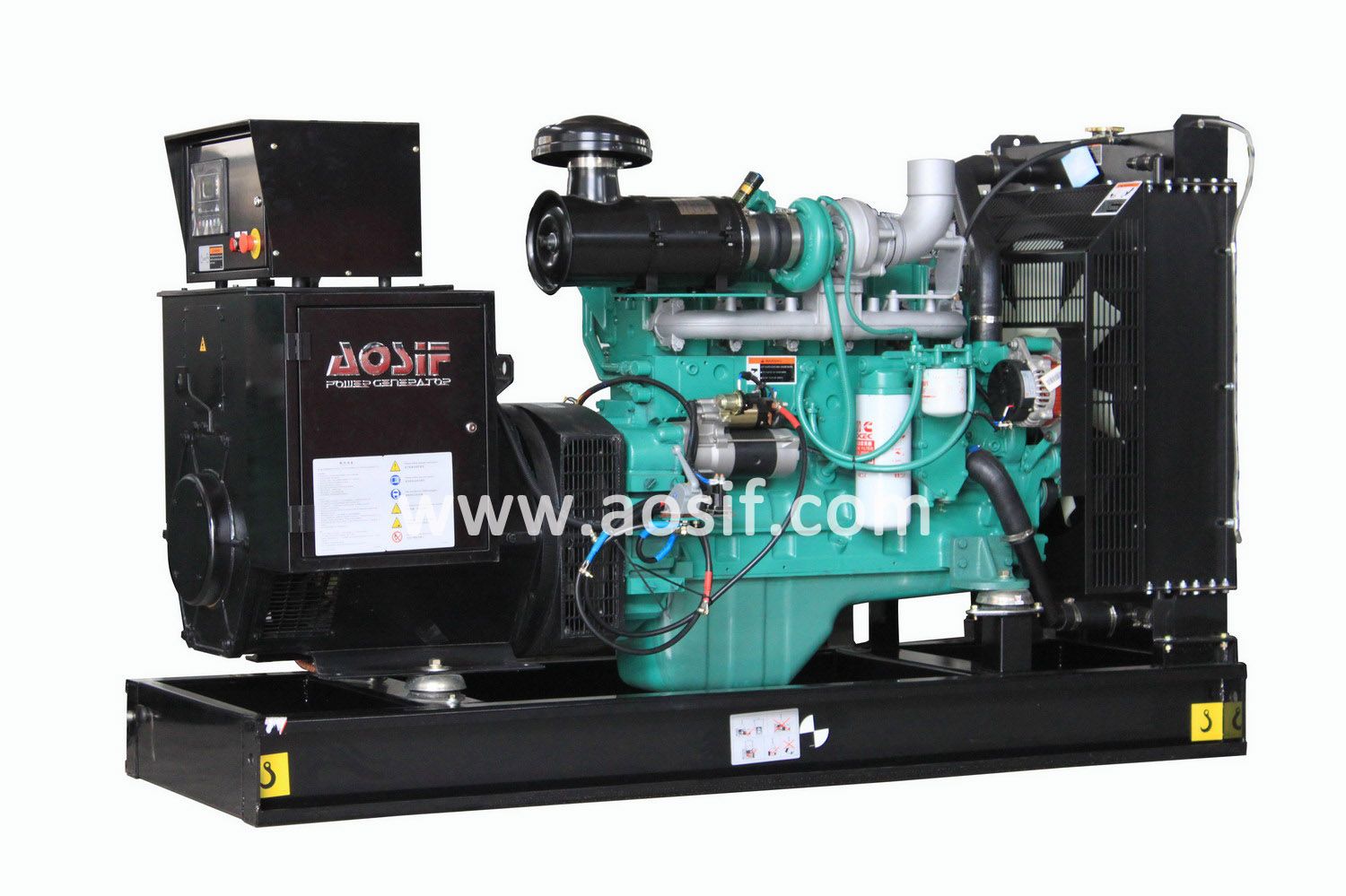

Diesel cummins engine 4 stroke small generators
Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram.
Alternator:
1. Bearing: Single
2. Insulation Class: H
3. Phase: 3 Phase 4 wires
4. Protection Degree: IP 23
5. Excitation way: Brushless excitationing
6. Leroy somer, Stamford, Marathon for you choose
Other Optional part:
Silent canopy, movable trailer, ATS, synchronization system, etc.
Manufacturer | Dongfeng Cummins Engine Co. Ltd. |
Model | 6CTA8.3-G2 |
Engine speed | 1500rpm |
Engine power | |
--------------------Standby power | 180kw / 241HP |
--------------------Prime power | 163kw / 219 HP |
Type | 4 cycle, In-line, 6-cylinder |
Aspiration | Turbocharged and Aftercooled |
Governor | electrical |
Bore * Stroke | 114*135 mm |
Displacement | 8.3L |
Idle speed | 750-850 rpm |
Piston speed | 6.8 m/s |
Friction horsepower | 17kw(60HP) |
Manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model | LSA44.2 M95 |
Output power | 120KW |
AVR model | R250 |
Number of phase | 3 |
Power factor (Cos Phi) | 0.8 |
Altitude | ≤ 1000 m |
Overspeed | 2250RPM |
Number of Pole | 4 |
Exciter type | Shunt |
Insulation class | H |
Voltage regulation | ±0.5% |
Sustained short circuit current | 300% (3 IN) : 10s |
Total harmonics (TGH/THC) | < 4 % |
Wave form : NEMA = TIF | < 50 |
Wave form : I.E.C. = THF | < 2% |
Bearing | single |
Coupling | Direct |
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
