Prod Model: |
GF1 -100KW |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gf1-100kw: |
100kw |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Eight Stroke |
Cooling Method: |
Water Cooling |
Product Description

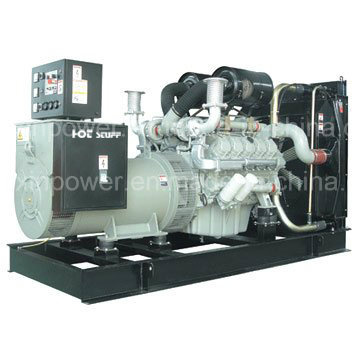

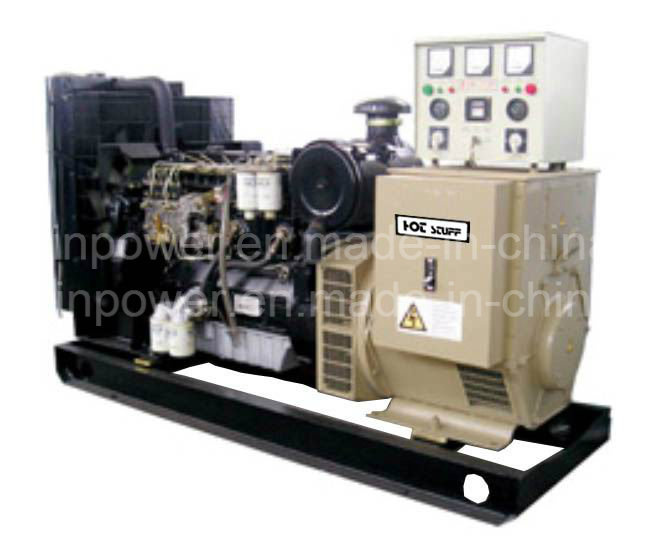

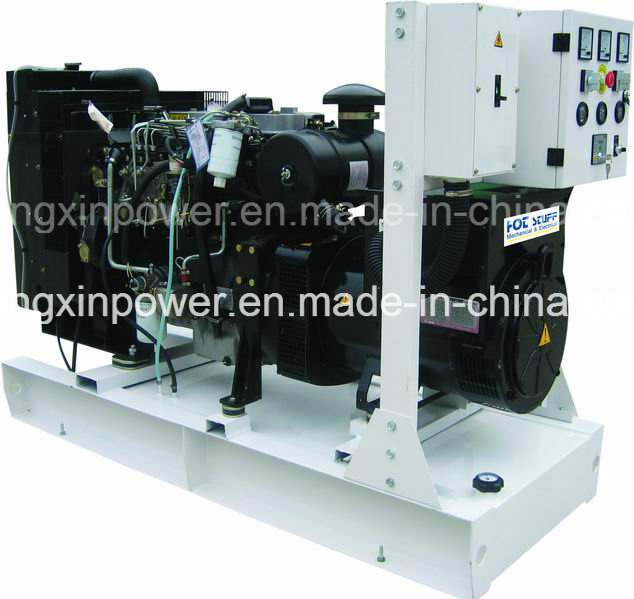

Big power generator brushles open type perkins, deutz, wei chai, cummins engine
Stable performance overload protection
Rated power 8kw -500kw speed 1500rpm/1800rpm
Frquency: 50Hz/60Hz rated voltage: 230V/400V
Rated current 14.4A-900A
Motor: Brushless stamford or leory somer
Color: Yellow, orange green, white blue
Output type: AC three phase
Deutz Diesel Generating Set - Model: GF1-100KW/125kva
MODEL | GF1-100KW/125kva |
Powered by Deutz Engine |
Continuous Power (50HZ/60HZ) | 100KW/125KVA |
Standby Power (50HZ/60HZ) | 112KW/140KVA |
Engine Model | TBD226B-6D |
Engine Power (50HZ) | 120KW/150KVA |
Speed | 1500rpm/1800rpm |
Fuel Consumption | 198 g/kw.h |
Cooling Method | Water - cooled |
Starting Method | 24V DC electrical start |
Alternator Model | Stamford copy 274E |
Alternator Power | 112KW/140KVA |
Voltage | 380/220V |
Electric Current | 187.2A |
Power Factor | 0.8 |
Phase | 3-phases |
Brush/Brushless | Brushless |
G.W/N.W | 2100 KGS |
Overall Size | 2820x1230x1660 MM |
20FT | 4 PCS |
OPTIONAL | ATS(AUTO TRANFORE SWITCH) |
| Auto Battery Charger |
| Base fuel tank (for open type) |

As a manufacturer, we specialize in producing big water cooled diesel generator from 8KW to 500kw above. Air cooled gasoline/ diesel engine, small air cooled gasoline/diesel generator set, gasoline/diesel water pump sets, concrete cutter, plate compactor, light tower, high pressure washer and so on products. Have about 10 year experience. Punctual delivery, good quality, competitive price.
If you are interested in any our products, pls let me know. We promise to supply you good quality and service you at first time!
Welcome your any enquiry! Hopefully, we can develop best with your cooperation!
