| Prod Model: |
QSDY-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| Cylinder No.: |
6 |
| Rated Rpm: |
1500/1800 |
| Rated Voltage: |
230/400V |
| Fuel Tank: |
8hours |
| Rated Current: |
540A |
| Certificate: |
ISO9001 |
| Dimensions(mm): |
3560*1430*2010 |
| Net Weight(Kg): |
3900 |
| Protection Class: |
IP22 |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |

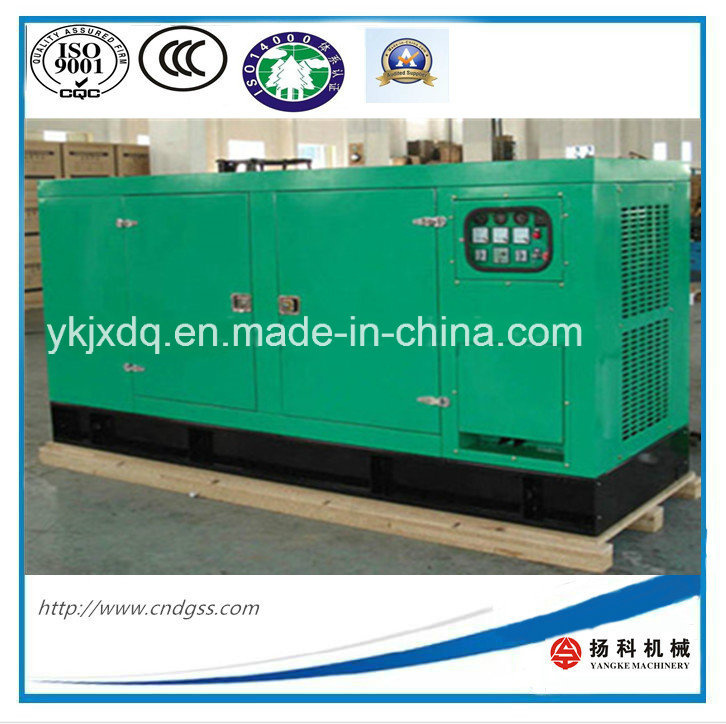

Product Description
1. Low Noise
2. Low Fuel Consumption
3. With CE/ISO
4. 1 year/1500 running hours warranty
5. Diesel generator
Main Technical Parameters:
rated power(kw/kva): 300/375
rated current(A): 540
rated voltage(V): 400/230
rated frequent(Hz): 50/60
rated speed(r/min): 1500/1800
rated speed factor: 0.8LAG
phase arrangement: 3P4W
dimensions(mm)(L*W*H): 3560*1430*2010
net weight(kg) : 3900
control unit type:integral type control box(split type can be chosen)
Deutz Engine
type: WP13D385E200
rated power(kw): 350
standby power output (kw) : 385
cylinder quantity: 6 cylinder diameter:128 piston stroke:140
low fuel consumption(L/kwh):58
good starting performance :electrical starting DC24V
speed mode :electrical
Marathon Alternator
type:MP-300-4
excitation mode: pure copper brushless with AVR(brush mode can be chosen)
insulation class: H(temperature rise limit:125K)
protection class: IP22
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
