| Prod Model: |
DP1800CX-DP6500CX |
Product Description

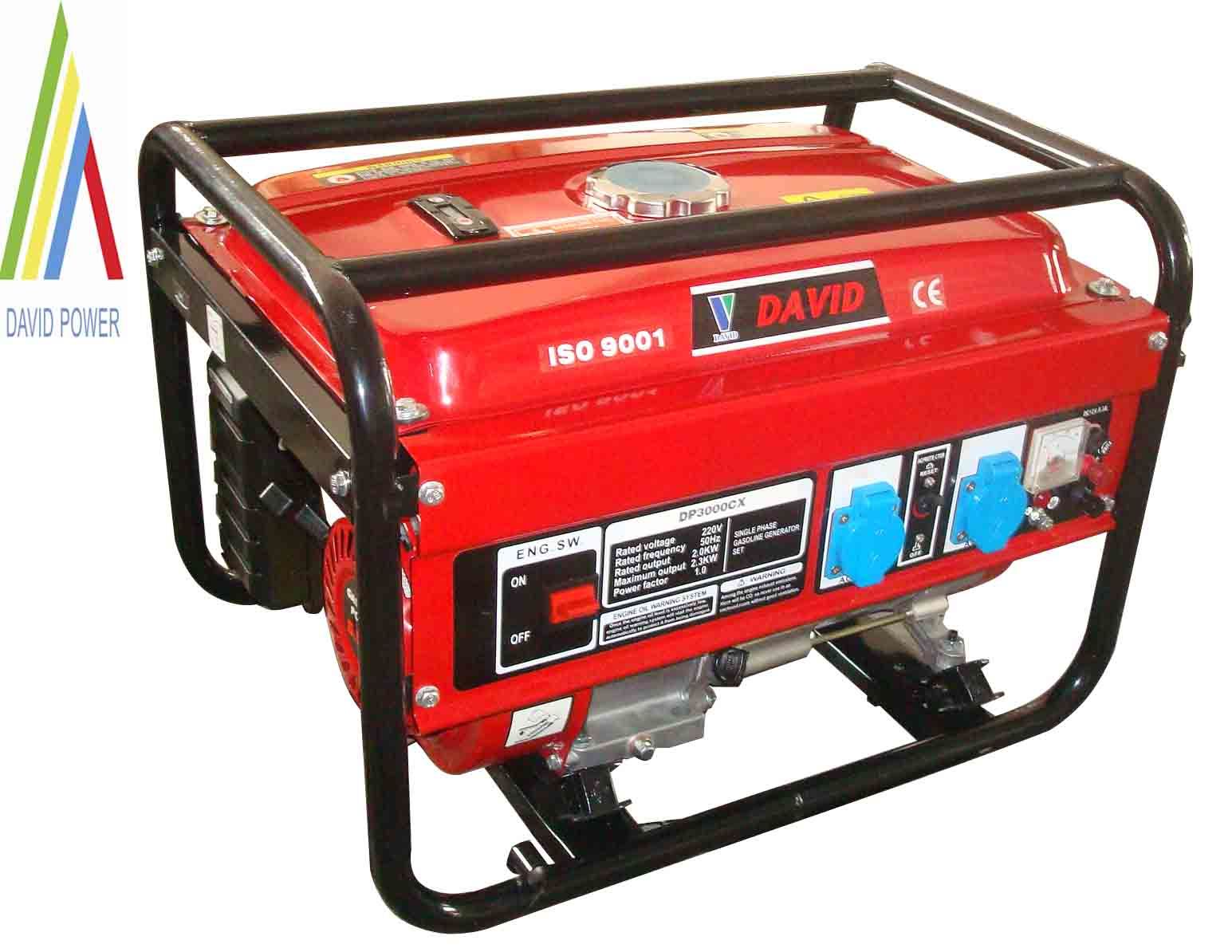

Deluxe Gasoline Generator Honda
Good Quality and Good Price
| Model | DP1800CX | DP2500CX | DP3000CX | DP3800CX | DP5000CX | DP6500CX |
| Generator | Type | Revolving Magnetic Field, Self-excitating, 2 Poles, Single-phase (or 3-phase) |
| Frequency Hz | 50 / 60 |
| Rate AC Output kW | 1.3 / 1.5 | 2.0 / 2.3 | 2.5 / 2.7 | 3.0 / 3.3 | 4.0 / 4.5 | 5.0 / 5.5 |
| Max.AC Output kW | 1.5 / 1.8 | 2.2 / 2.5 | 2.8 / 3.0 | 3.3 / 3.8 | 4.5 / 5.0 | 5.5 / 6.5 |
| Voltage V | 110,115,120; 220,230,240; 110/220,115/230,120/240, (Single Phase) 380,400, 380/230, 400/230 (3 Phase) |
| Voltage Regulator | Auto Regulating System |
| Power Factor | 1.0 (Single Phase) 0.8 (3-Phase) |
| Engine | Model | DP160 | DP200 | DP240 | DP340 | DP390 |
| Type | Air-cooled, Single-cylinder, OHV, 4-stroke, Gasoline Engine |
| Bore×Stroke mm | 68x45 | 68x54 | 73x58 | 82x64 | 88x64 |
| Displacement cc. | 163 | 196 | 242 | 337 | 337389 |
| Max. Power hp/rpm | 5.5/3600 | 5.5/3600 | 6.5/3600 | 8.0/3600 | 11.0/3600 | 13.0/3600 |
| Ignition System | TCI |
| Recommended Fuel | Gasoline Fuel |
| Lube Oil | SAE 10-30W |
| Engine Oil Capacity L | 0.6 | 1.1 | 1.6 |
| Start Mode | Recoil or Electric/Recoil |
| Set | Fuel tank capacity L | 15 | 25 |
| Operating Hour for 1 Tank Fuel Hrs | 25 | 18 | 16 | 13 | 10 | 8 |
| Noise level (7m) dB(A) | 66-68 | 68-70 |
| Packing Dimension L×W×H mm | 620×465×545 | 715x515x585 |
| Gross Weight/Net Weight kg | 36/34 | 40/38 | 42/40 | 70/68 | 83/81 | 88/85 |
| 20’ Container Load units | 180 | 128 |
| 40’ Container Load units | 380 | 268 |
| Standard Features | Oil Alert | Y | Y | Y | Y | Y | Y |
| Fuel Gauge | Y | Y | Y | Y | Y | Y |
| AC Voltmeter | Y | Y | Y | Y | Y | Y |
| Indicator Light | Y | Y | Y | Y | Y | Y |
| AC Circuit Breaker | Y | Y | Y | Y | Y | Y |
| AC Socket | Y | Y | Y | Y | Y | Y |
| Engine Switch | Y | Y | Y | Y | Y | Y |
| DC Output (12V/8.3A) | Y | Y | Y | Y | Y | Y |
| DC Fuse | Y | Y | Y | Y | Y | Y |
| |
| Optional Features | Electric Start | N | N | N | N | N | N |
| Battery | N | N | N | N | N | N |
| Dual Voltage with Voltage Switch | N | N | N | N | N | N |
| Timer | N | N | N | N | N | N |
| 3-Phase | | N | N | N | N | N |
| 4-Wheels | N | N | N | N | N | N |
| AC Socket | Optional for any type of Socket |
| Any other specail require | |
| Note: Optional Items need to plus at prices |
Ningbo David Power Co., Ltd. is a leading manufacture specialized in engine, generator, engine pump and other power product.
It located at Ningbo City, near ShangHai in Zhejiang proveince. DAVID POWER reaches an annual production capability more than 200, 000sets of engine product.
David Power manage to deliver the superior quality products and service to every customer and company.
At DAVID we bring together technology and engineing to create solutions for the benefit of our customers.
