Brand:
Yarmax or OEM
Pack:
Iron Bracket / Veneer Case
Original:
Changzhou Jiangsu Province
Color:
Red/Yellow or Others as Requested
Noise Level:
65dB
Fuel Type:
Diesel
Fuel Tank Capacity:
8 Hours Continue Running
Phase No.:
Three Phases or Single Phase as Requested
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm
Excitation Mode:
Self Exciter
Product Description

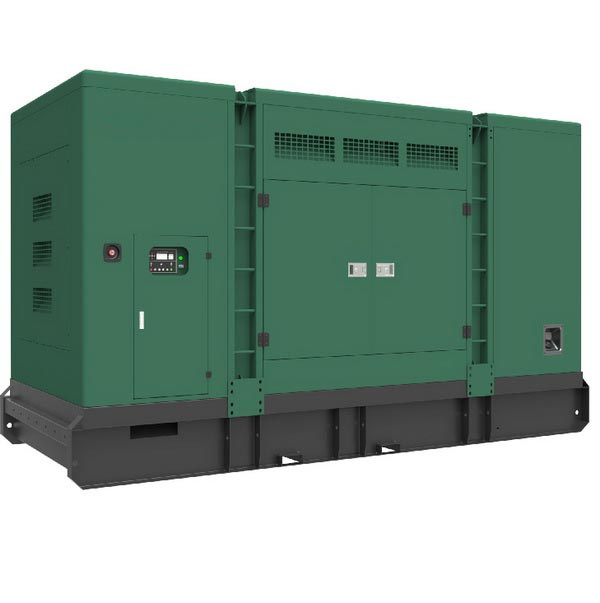

24KW/30kVA Cummins Soundproof Diesel Generator Set (YMC-16)
1. 20KVA~2250KVA Generator / Diesel Generator / Silent Generator 2. Powered by Cummins Engine 3. With Stamford / Leroy Somer / Marathon Alternator 4. With CHINT / ABB MCCB & Electronic Components 5. Electric Start with Battery 6. Base Integrated Fuel Tank 7. ATS, Deepsea / ComAp / Smartgen Controller 8. Comply with ISO8528/GB2820
Cummins series diesel generators power from 20kVA up to 2250kVA, with compacted structure and best configuration.
OEM cummins powered diesel generator sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of army, transportation engineering system and mine industries. Established in 1919, headquartered in columbus, indiana, (USA) cummins inc. Serves customers in more than 160 countries and territories through its network of 680 company-owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, cummins possess chongqing cummins engine Co., Ltd (produce m, n, k series engine) and dongfeng cummins engine Co., Ltd (produce b, c, l series engine ) and produce cummins engines with globally uniform quality standards.
Engine
Heavy duty diesel engine Four stroke, water cooled 12V and 24V stater and charge alternator Cooling radiator and fan Maintenance free battery including ract and cable Flexible fuel connection hoses and manual oil sump drain valve Exhaust silencer
Alternator
Brushless, single bearing, flexible disc Insulation class: H Protection class: IP23 Self-exciting and Self-regulation
Soundproof Canopy
All canopy designed with modular principles All metal canopy parts painted by electrostatic polyester power paint Soundproof design ensure that the noise level be controlled in small scope Convenient to lift and move Easy to maintenance and operate
Base Frame
Base frame including position for forklift and crane Integral fuel tank Daily fuel tank continuously supply for 8-24 hours Fuel tank easy to maintain and clean Anti-vibration pads are flexed between engine and alternator.
Control System Control, monitor and protect the Generator Set including:
High water temperature Low oil pressure Over and under speed Over current Under/Over generator voltage Start and stop failure Low and high battery voltage Charge fail Emergency stop
Company
Specification
Cummins Generators 50HZ
Genset Model
Standby / Prime Power
Engine Model
No. of Cylinder
Displacement (L)
Oil Capacity (L)
Coolant Capacity (L)
Genset Size (mm)
Weight (KG)
KVA
KW
Cummins
L
W
H
YMC-20
30/25
24/20
4B3.9-G2
4
3.9
11
17
1470
650
1145
650
YMC-30
40/37.5
32/30
4BT3.9-G2
4
3.9
11
17
1685
650
1145
700
YMC-40
62/50
50/40
4BTA3.9-G2
4
3.9
11
18
1800
670
1190
830
YMC-50
70/62.5
56/50
4BTA3.9-G3
4
3.9
11
18
1900
670
1190
850
YMC-64
90/80
72/64
6BT5.9-G2
6
5.9
16
29
2100
790
1320
1050
YMC-80
110/100
88/80
6BT5.9-G2
6
5.9
16
29
2100
790
1400
1080
YMC-90
125/113
100/90
6BTA5.9-G2
6
5.9
16
29
2200
790
1450
1150
YMC-108
150/135
120/108
6BTAA5.9-G2
6
5.9
16
29
2400
840
1450
1200
YMC-128
175/160
140/128
6CTA8.3-G2
6
5.9
16
30
2480
860
1450
1400
YMC-144
200/180
160/144
6CTA8.3-G2
6
8.3
24
35
2480
860
1460
1650
YMC-160
220/200
176/160
6CTAA8.3-G2
6
8.3
24
39
2700
950
1460
1650
YMC-180
250/225
200/180
6LTAA8.9-G2
6
8.9
24
47
2700
960
1500
1800
YMC-200
275/250
220/200
6LTAA8.9-G2
6
8.9
24
47
2700
960
1500
1900
YMC-220
300/275
240/220
6LTAA8.9-G3
6
8.9
24
47
2700
960
1500
2050
YMC-280
375/330
300/264
QSM11-G2
6
11
38
62
3110
1200
1745
2880
YMC-320
450/400
360/320
NTAA855-G7A
6
14
37
65
3300
1250
1720
3050
YMC-360
500/450
400/360
KTA19-G3
6
19
50
99
3310
1290
1720
3100
YMC-420
575/525
460/420
KTA19-G4
6
19
50
99
3600
1290
1900
3750
YMC-500
688/625
550/500
KTAA19-G6A
6
19
50
195
3800
1500
1980
4500
YMC-620
850/775
680/620
KTA38-G2
12
38
135
265
3860
1600
2195
6000
YMC-720
1000/900
800/720
KTA38-G2A
12
38
135
303
3860
1600
2195
7000
YMC-820
1125/1025
900/820
KTA38-G5
12
38
135
309
5300
1950
2500
8500
YMC-1020
1400/1275
1120/1020
KTA50-G3
16
50
177
349
5300
2150
2520
9950
YMC-1200
1675/1500
1340/1200
KTA50-G8
16
50
204
349
5300
2200
2550
10500
Cummins Generators 60HZ
Genset Model
Standby / Prime Power
Engine Model
No. of Cylinder
Displacement (L)
Oil Capacity (L)
Coolant Capacity (L)
Genset Size (mm)
Weight (KG)
KVA
KW
Cummins
L
W
H
YMC-20
30/25
24/20
4B3.9-G2
4
3.9
11
17
1470
650
1145
650
YMC-25
36/31
29/25
4B3.9-G2
4
3.9
11
17
1550
650
1145
670
YMC-36
50/45
40/36
4BT3.9-G2
4
3.9
11
17
1685
650
1145
700
YMC-40
62/50
50/40
4BTA3.9-G2
4
3.9
11
18
1800
670
1190
830
YMC-50
70/62.5
56/50
4BTA3.9-G3
4
3.9
11
18
1900
670
1190
850
YMC-64
90/80
72/64
6BT5.9-G2
6
5.9
16
29
2100
790
1320
1050
YMC-72
100/90
80/72
6BT5.9-G2
6
5.9
16
29
2100
790
1400
1080
YMC-90
125/113
100/90
6BT5.9-G2
6
5.9
16
29
2200
790
1450
1150
YMC-108
150/135
120/108
6BTA5.9-G2
6
5.9
16
29
2400
840
1450
1200
YMC-120
165/150
132/120
6BTAA5.9-G2
6
5.9
16
30
2480
860
1450
1400
YMC-144
200/180
160/144
6CTA8.3-G2
6
8.3
24
35
2480
860
1460
1650
YMC-160
220/200
176/160
6CTA8.3-G2
6
8.3
24
39
2700
950
1460
1650
YMC-180
250/225
200/180
6CTAA8.3-G2
6
8.3
24
47
2700
960
1500
1800
YMC-200
275/250
220/200
6LTAA8.9-G2
6
8.9
24
47
2700
960
1500
1900
YMC-220
300/275
240/220
6LTAA8.9-G3
6
8.9
24
47
2700
960
1500
2050
YMC-280
400/350
320/280
NTA855-G2
6
14
39
65
3110
1000
1745
2880
YMC-360
500/450
400/360
KTA19-G2
6
19
50
99
3310
1290
1720
3100
YMC-420
575/525
460/420
KTA19-G3
6
19
50
99
3600
1290
1900
3750
YMC-500
688/625
550/500
KTAA19-G5
6
19
50
99
3800
1500
1980
4500
YMC-620
850/775
680/620
KT38-G
12
38
135
265
3860
1600
2195
6000
YMC-720
1000/900
800/720
KTA38-G2
12
38
135
265
3860
1600
2195
7000
YMC-928
1275/1160
1020/928
KTA38-G4
12
38
135
265
5300
1950
2500
8500

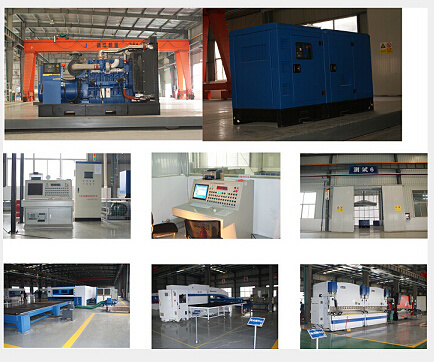

Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
