| Prod Model: |
KTA38-DM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Manufacturer: |
Ccec |
| Package: |
Plywood Crate |
| Engine Voltage: |
24V |
| Speed Governor: |
Mechanical/Efi |
| Starting Method: |
Electric |
| Overall Dimension: |
2535*1442*2330mm |
| Net Weight: |
4384kg |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

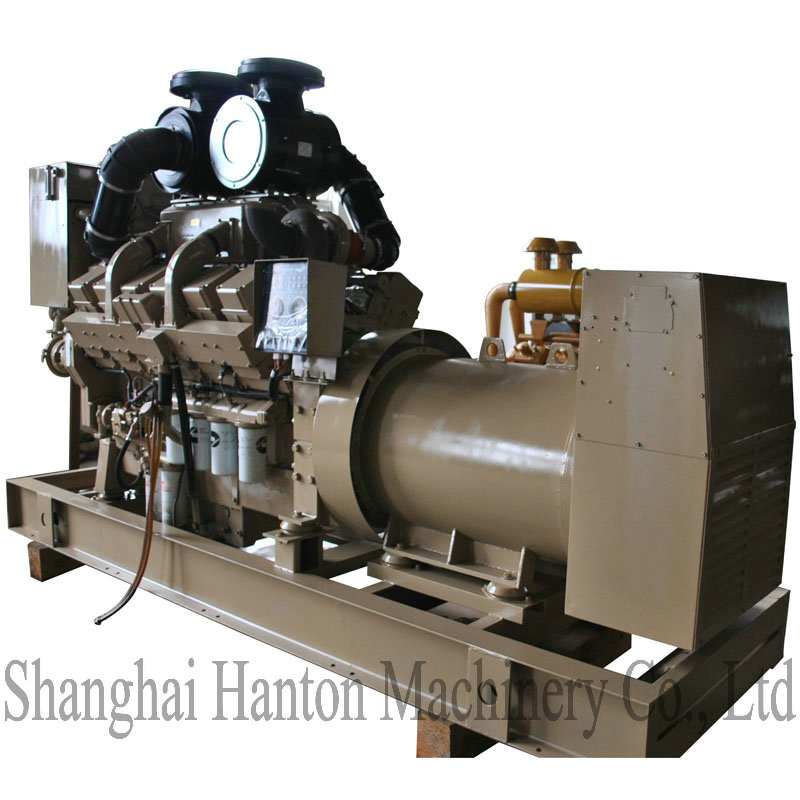

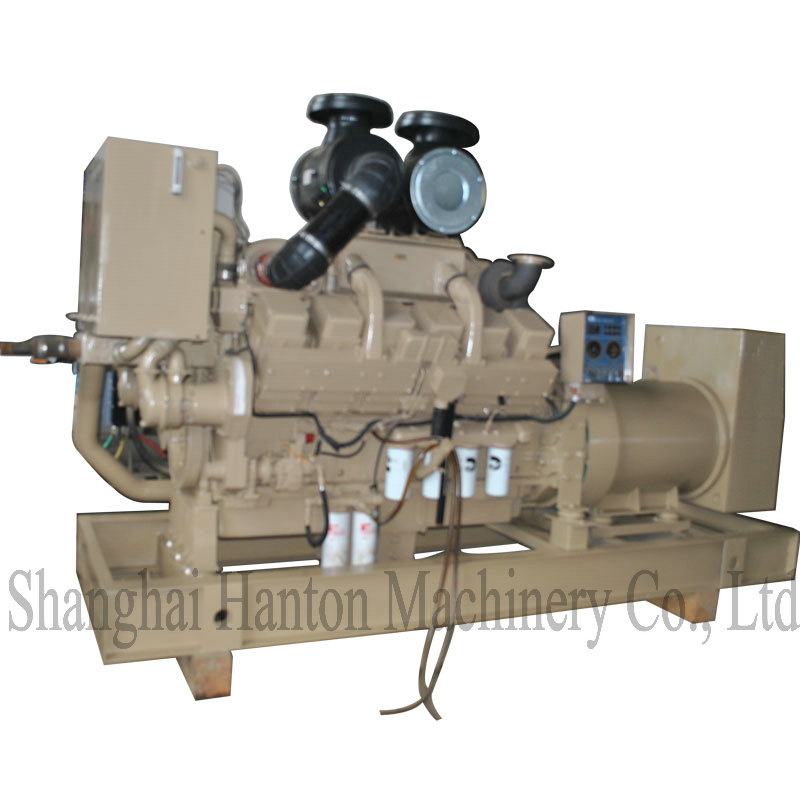

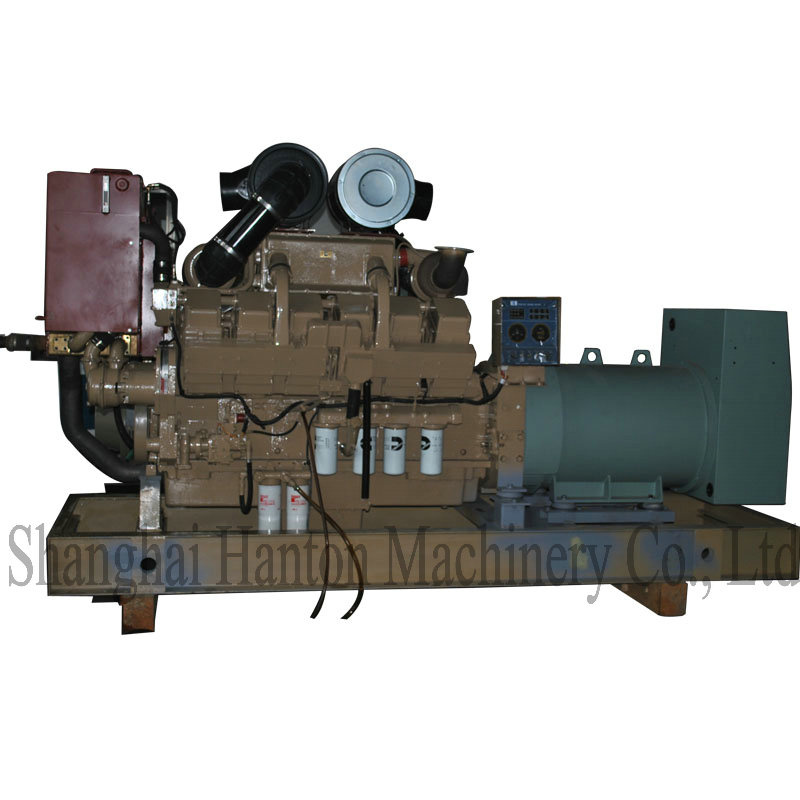

Cummins KTA38-DM marine diesel generator set, with KTA38-DM engine whose power:
| Brand | Model | Liter | KW/RPM | N.m/rpm |
| Cummins | KT38-DM | 38 | 560/1500 | auxiliary |
| Cummins | KT38-DM | 38 | 679/1800 | auxiliary |
| Cummins | KTA38-DM | 38 | 664/1500 | auxiliary |
| Cummins | KTA38-DM | 38 | 809/1800 | auxiliary |
| Cummins | KTA38-DM | 38 | 813/1500 | auxiliary |
| Cummins | KTA38-DM | 38 | 880/1500 | auxiliary |
| Cummins | KTA38-DM | 38 | 1007/1800 | auxiliary |
| Cummins | KTA50-DM | 50 | 1097/1500 | auxiliary |
| Cummins | KTA50-DM | 50 | 1291/1800 | auxiliary |
12 cylinders V type, turbocharged, aftercooled, mechanical fuel system, 38L, manufactured by CCEC (Chongqing Cummins Engine Company), joint venture of US Cummins in Chongqing of China. We also sell other Cummins models, including 4BT3.9, 6BT5.9, 6CT8.3, 6LT8.9, ISZ13, M11, NT855, KT19, KT38, KT50, ISBe4.5, ISBe6.7, ISF2.8, ISF3.8, ISMe11, etc, for stationary generator set, water pump set, fire pump set, construction and engineering machinery, automobile, marine propulsion, marine generator set, etc.
Besides, we also sell other parts, including cylinder head, cylinder head gasket, cylinder block, cylinder liner, piston, piston ring, main bearing, conrod bearing, injector, oil pan gasket, overhaul gasket, upper gasket kit, lower gasket kit, oil pan, cylinder head cover, fuel injection pump, fuel transfer pump, water pump, oil pump, oil filter, fuel filter, fuel water separator, air filter, etc, as well as other brands, such as Deutz, Isuzu, Fiat Iveco, VM, CAT, Toyota, Nissan, Suzuki, Yuchai, Weichai, Changchai, etc.
