Prod Model: |
QSC-360GF |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
50Hz |
Rated Voltage: |
230/400V |
Rated Current: |
720A |
Certificate: |
ISO9001/SGS/CE/3c |
Rated Rpm: |
1500/1800 |
Cylinder No.: |
6 |
Power Factor: |
0.8 |
Displacement: |
18.9L |
Total Oil Capacity: |
50L |
Compression Ratio: |
14.5:1 |
Type: |
Basic Diesel Generator |
Installation Method: |
Portable |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Product Description
1. International Warranty Service2. Short delivery time, as we always have Cummins engine in stock3. With ISO9001 & CE certification4. Spare parts are easy to get from worldwide market with much cheaper price5. Coupled with Stamford alternator or Chinese alternator(Mecc,Leory-Somer,Marthon as optional)6. Perfect after-service network7. Both 50Hz and 60Hz8. Rigorous test including 50% load,75% load,100% load and 110% loadStandard configuration diesel generators by Cummins engine:1) Cummins engine2) Mecc alternator(Stamford,Leory-Somer & China alternator for option)3) Deepsea DSE7320 or ComAq control panel with AMF fuction,ATS for option4) Chint circuit breaker5) 8 Working Hours Base Fuel Tank(for the genset≤650kVA prime, only Base Frame for other models)6) Anti-Vibration Mounted System7) Battery and battery charger8) Industrial silencer and flexible exhaust hoseiesel Generator | QSC-360GF |
Standby Power(50Hz) | 500KVA |
Prime Power(50Hz) | 450KVA |
ENGINE DATA |
Brand/Model: | Cummins KTA19-G4 |
Air Intake System: | Turbo, Water/Air cooling |
Fuel System: | PT type fuel pump, EFC |
Cylinder Arrangement: | 6 in line |
Displacement: | 18.9L |
Bore and Stroke: | 159×159(mm) |
Compression Ratio: | 14.5:1 |
Rated RPM: | 1500rpm |
Max. Standby Power at Rated RPM: | 504KW/684HP |
Governor Type: | Electronic |
Exhaust System |
Exhaust Gas Flow: | 1604L/s |
Exhaust Temperature: | 557°C |
Max Back Pressure: | 10kPa |
Air Intake System |
Max Intake Restriction: | 6.23kPa |
Burning Capacity: | 579L/s |
Fuel System |
100%(Prime Power) Load Consumption: | 203 g/Kw.h |
75%(Prime Power) Load Consumption: | 207 g/Kw.h |
50%(Prime Power) Load Consumption: | 216 g/Kw.h |
Oil System |
Total Oil Capacity: | 50L |
Oil Consumption: | ≤4g/kwh |
Cooling System |
Total Coolant Capacity: | 91L |
Thermostat: | 82-93°C |
Max Water Temperature: | 104°C |
| | | | | | | | |
ALTERNATOR DATA |
Brand/Model: | Mecc Alte ECO40-3S/4 (Italy Brand) |
Prime Power: | 500 KVA |
Frequency and Speed: | 50Hz and 1500RPM |
Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
Power Factor: | 0.8 |
Protection Grade: | IP23 |
Altitude: | ≤1000m |
Exciter Type: | Brushless, self-exciting, with AVR |
Insulation Class, Temperature Rise: | H/H |
| | | | | | | | |
GENERATING SET DATA |
Voltage Regulation: | ≥±5% |
Voltage Regulation, Stead State: | ≤±1% |
Sudden VoltS Warp(100%): | ≤+25% |
Sudden Voltage Warp(Sudden Increase): | ≤-20% |
Voltage Stable Time: | ≤6S |
Frequency Regulation, Stead State: | ≤5% |
Frequency Waving: | ≤0.5% |
Sudden Frequency Warp(100%): | ≤+12% |
Sudden Frequency Warp(Sudden Increase): | ≤-10% |
Frequency Recovery Time: | ≤5S |
Open Type Size: | 3450(mm)*1350(mm)*1980(mm) |
Open Type Weight: | 4130 kg |

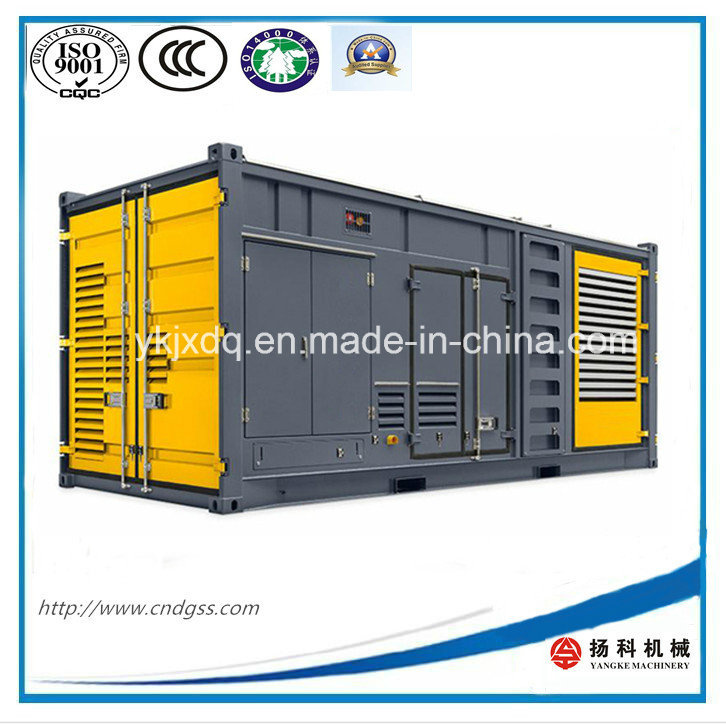

Container Type Size: | Standard 20ft Container |
Container Type Weight: | 6430kg |
Control Panel: | ComAp MRS10 automatic contol panel |
Packaging & Delivery
Packaging Detail: | generator standard exporting package |
Delivery Detail: | within 5-25working days after the deposit |
Company Information Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
