Size(Mm):
2200*1000*1450
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Micro-Computer Control Automatic Diesel Generator
Output Type:
AC Three Phase
Product Description

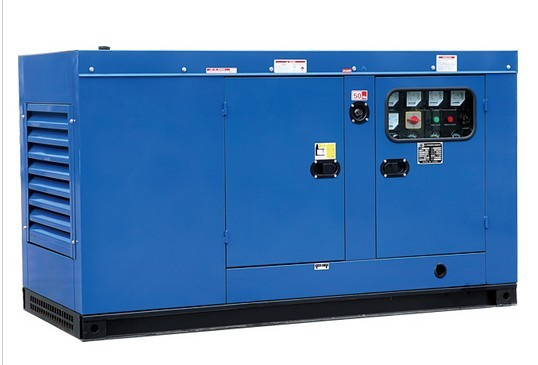

Cummins 25kVA silent diesel generators
WD C20 Diesel Gen-set
Cummins Engine + Faraday Alternator
Prime power 25kVA
50Hz/1500RPM/400V
Prime power: Continuous running at variable load for unlimited periods with 10% overload available for 1hour in any 12 hours. In accordance with GB/T2820-2009.
Standby power: Continuous running at variable load for duration of an emergency.
No overload is permitted on these ratings.
Generator set Data
Engine Data
Brand
WANDI
Brand
CUMMINS
Model
WD C20
Model
4B3.9-G
Prime power
KVA/KW
25/20
Rated power(net)
KVA
30
Standby power
KVA/KW
28/22
Rated power(net)
KW
24
Frequency
Hz
50
No. of cylinder
4
Rated voltage
V
400/230
Cycle type
4
Rated current
A
36
Cylinder arrangement
Vertical in line
Power factor
COS Φ
0.8(lag)
Aspiration type
Turbocharged
Combustion system
water cooled
Alternator Data
Bore
mm
102
Brand
FARADAY
Stroke
mm
120
Model
FD1F
Displacement
L
3.9
Connecting type
3 phase and 4 wires
Compression ratio
16.1:1
Excitation type
brushless, self excited
Engine oil capacity
L
9.5
Steady voltage regulation
≤1%
Max back pressure
kpa
10
Transient voltage regulation
≤±25%
Total coolant capacity
L
19
Frequency recovery time
≤5s
Fuel consumption
L/H
5.5
Protection
IP23
Lubrication consumption
L/H
0.038
Insulation
Class H
Cooling max water temperature
ºC
104
Overload capacity
≤10%
Governor type
Electronic
Start mode
Electronic
Faraday alternator Feature
Emission standards
Europe stage II
Compact, low noise, high reliability.
Class H insulation, IP23 protection.
Engine Features
Small voltage harmonic distortion of non-linear load.
CUMMINS engine.
2/3 pitch winding effectively removes the third harmonic voltage.
Compact design, easy start & maintenance.
Damper winding excitation.
Low fuel consumption, low vibration & low noise.
Strong cold start, adaptable to different working conditions.
Comap control module
Low emissions-compliant with Europe stageII.
Microprocessor based Intelligent controller.
Global service network for excellent after-market service.
Real-time display of engine and alternator operating parameters.
Monitor engine and alternator running status.
Dimension/weight
Gen-set alarming and performance message.
Dimension(L*W*H)
mm
1775*705*1130
Manual and Automatic mode.
Net weight
kg
660
LCD display, LED indicator.
Standard Configuration:
Optional Configuration:
System
Description
System
Description
Engine
Cummins
Cooling sys
Radiator(50ºC)
Aspiration sys
Air filter
Jacket water heater
Air restriction indicator
Anti-condensation heater
Cooling sys
Radiator(40ºC)
Exhaust sys
Residential silencer
Fan & belt
Alternator
Stamford alternator
Exhaust sys
Industrial silencer
Engga alternator
Fuel sys
Fuel-water separator filter
Marathon alternator
Fuel filter
Control module
DSE series
Fuel hose
HGM series
Lubrication sys
Oil filter
Circuit breaker
ABB
Alternator
Faraday
ATS
Hanguang(WHK)
Control module
Comap MRS10
Aisikai (STK)
Circuit breaker
Suzhou
Other
battery charger
Battery
maintenance-free
laminated wood packaging
Other
24V start motor
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
