| Prod Model: |
CHP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Natural Gas |
Product Description

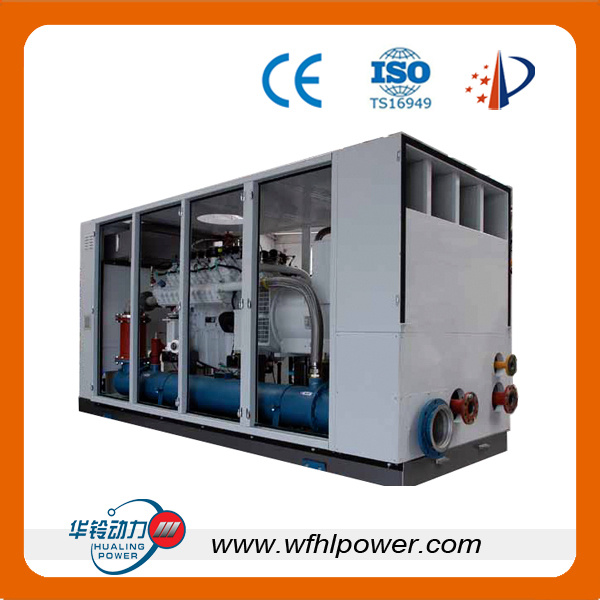

CHP
1. Gas Engine Cogeneration
2. Good quality, competitive price
3. Low operation cost, high profit
4. Easy to operate and maintenance
|
Cogeneration Unit Specifitions |
|
|
Type of cogeneration unit |
CHP50GF |
|
Nominal electrical power output (kW) |
50 |
|
Nominal heating power output (kW) |
55 |
|
Nominal voltage |
400 V |
|
Frequency |
50 Hz |
|
Nominal power factor |
1 |
|
Operating power factor |
0,8 – 1,0 |
|
Operating pressure of gas on the inlet gas train |
2-5 kPa |
|
Temperature gradient of heating system |
90/70 °C |
|
Water flow of secondary circuit |
1,73 L/s |
|
Exhaust temperature behind exhaust boiler |
125-185 °C |
|
Capacity of central oil tank (option) |
250 L |
|
Voltage Stability |
≤±2% |
|
Voltage transient |
≤±10% |
|
Voltage Stable time |
≤1 |
|
Heat consumption |
≤9.8mj/kw.h |
|
Lubricant consumption |
≤1.0g/kw.h |
|
Noise pressure level of unit at distance 10m from generator |
75 +- 3 dB/A/ |
|
Total recommended air exchange |
3600 m /h |
|
Installed power load |
5,1 kW |
|
Average operating power load (without emergency cooling) |
3,4 kW |
|
Transportation |
2800 x 2350 x 2500 mm |
|
Operational |
2800 x 2350 x 3500 mm |

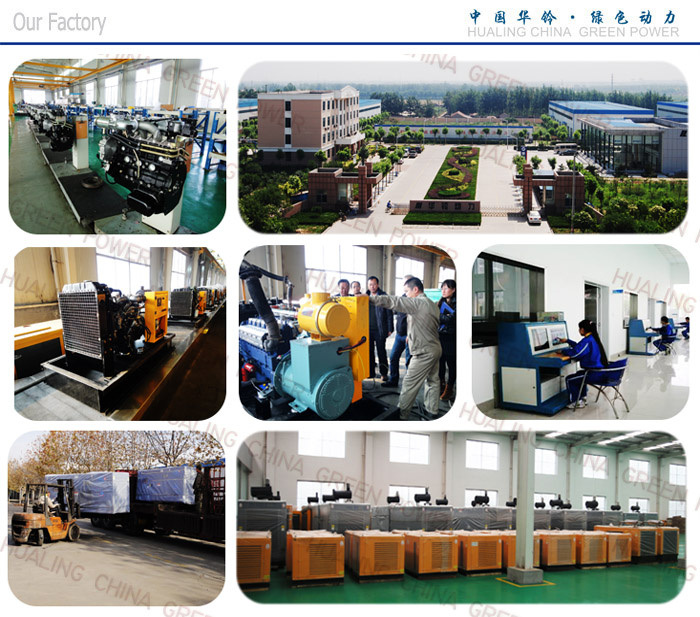

Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

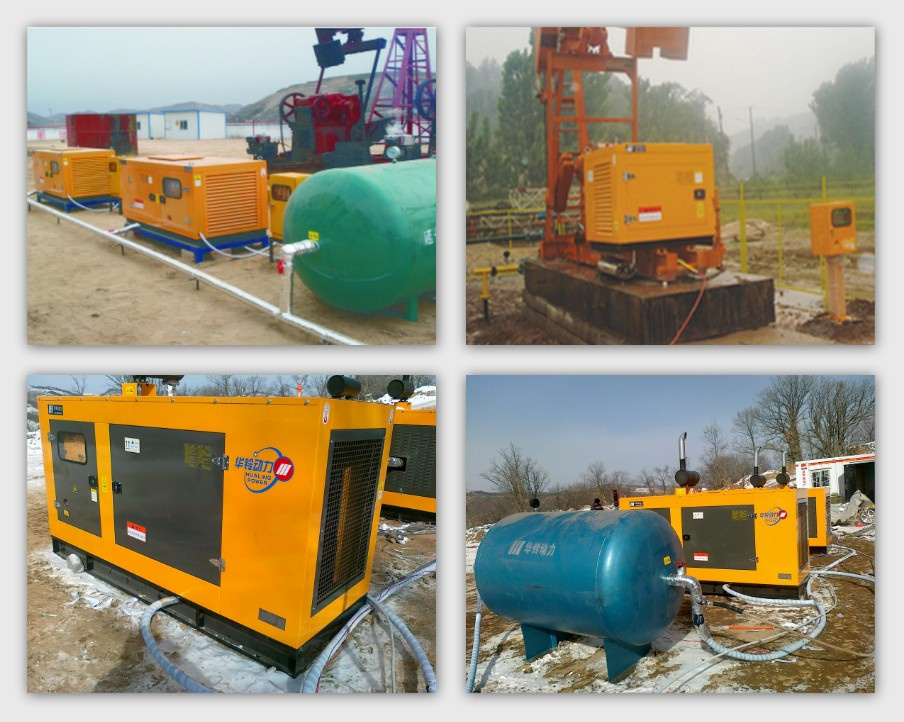

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
