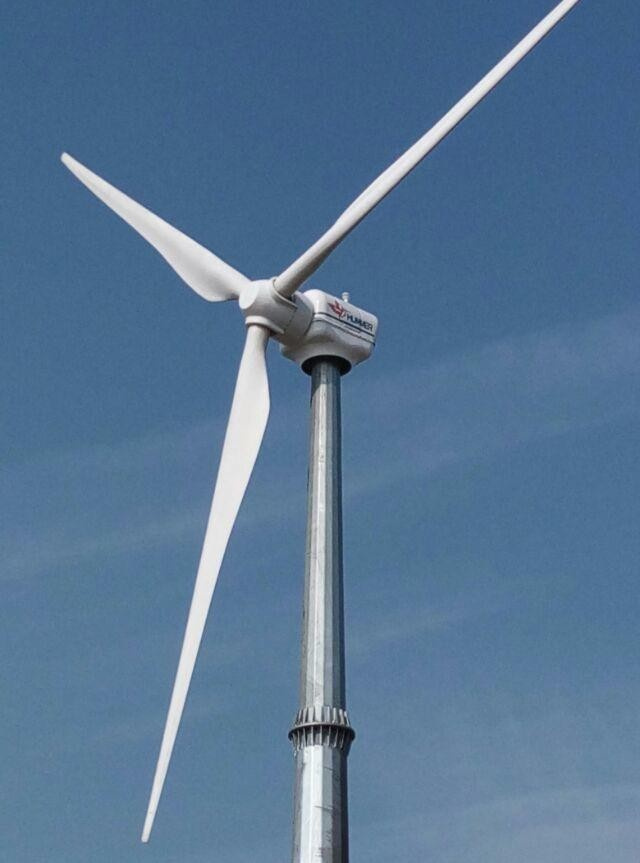

Parts for 100kw wind generator 100kw wind power generator:
1. Generator extremely small and light, low in sound, swift in startup, quick in dissipation, high in efficiency.
2. Yaw shaft with the slip ring to ensure the rotation at 270 to -270 degree.
3. Tower is made of galvanized steel, it is anti acid, salt proof, UV- proof.
4. Wind vane and anemometer indicating wind direction and measuring wind speed, transmitting wind signal to PLC controller.
5. Siemens PLC controller of 100KW wind turbine receiving wind signal and operation signal, quick reaction and intelligent control.
6. Grid feed inverter adopting MPPT and IGBT technologies, with high power generating capacity, wide AC voltage range.
7. Dumping load metal dumping box, heat dissipation by air convection, without the fan and the controlling box in 100kw Wind Power Generator
8. Rectifier rectifying and controlling the dumping load for Wind Power Generator
| Rated power(W) | 100000 |
| Maximum output power (W) | 100000 |
| Charging voltage (V) | DC 480 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter | 20.8m |
| Start-up wind speed (mph) | 3m/s |
| Rated wind speed (mph) | 11m/s |
| Wind energy utilizing ratio (Cp) | 0.42 |
| Generator output | Frequency conversion AC |
| Generator efficiency | >0.93 |
| Free standing tower diameter (in.) | 53.1*20.9 (1350×530mm) |
| Tower height | 24m |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
