| Prod Model: |
GDYD10*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Yangdong Brand, Perkins, Doosan, Deutz Is Optional |
| Alternator: |
Stamford, Marathon, Engga, Leroy Somer |
| Controller: |
Dse 7320, Smartgen Hgm6110, Hgm6120 Is Optional |
| Material: |
100% Famous Material |
| Certificate: |
CE, ISO |
| Voltage Range: |
110V-690V |
| Test Load: |
25%, 50%, 75%, 100%, 110% |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

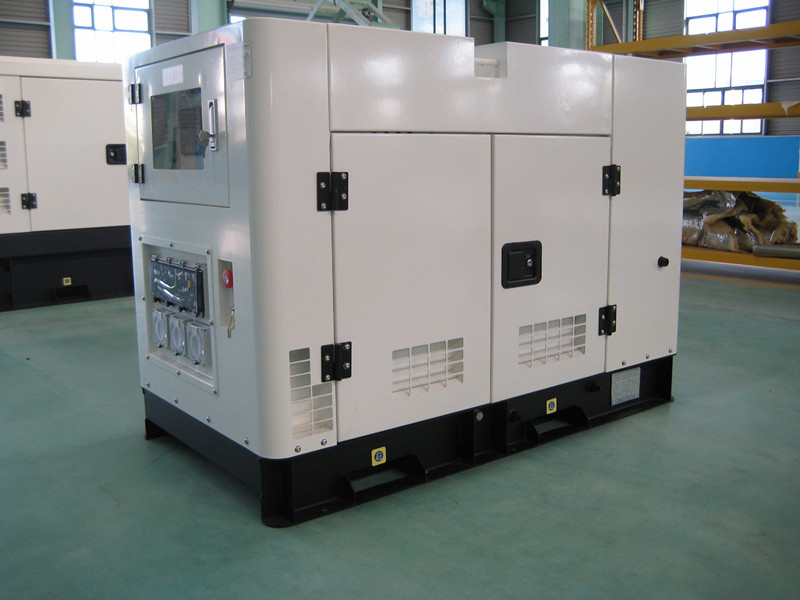

CE, ISO factory Soundproof 10kVA generator for sale
Specifications
1) Power range: 10kVA /8kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
| Diesel generator set technology parameters |
| Type | JDC10*S | Power of output(KVA) | 10 |
| Frequency(Hz)/Speed (rpm) | 50 / 1500 | Output Voltage(V) | 400 / 230 |
| Phase Number / Connection Mode | Three-phase four wire / "Y" type winding | Maximum continuous output current(A) | 18 |
| Startup mode | DC24V Electric start | Noise LP7m (dB) | 80 |
| Dimensions for set(LXBXH)(mm) | 1322*556*1260 | Weight for set(KG) | 396 |
| Diesel engine technology parameters |
| Brand | Perkins | Type | 403A-15G1 |
| Power of output(KVA) | 16 | Rated speed(rpm) | 1500 |
| Air discharge (L) | 1.5 | Boke*Stroke(mm) | 84*90 |
| Number of cylinder | 3 | Compression | 22.5:1 |
| Cooling mode | Water-air Intercool; cooling water tank/Fan | Speed regulation mode | Electronic |
|
| Startup mode | DC24Vstart | Volume of lub.oil (L) | 6 |
YANGDONG configuration and technical data
50HZ, 3 Phase, 400/230V |
| No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Weight |
Dimensions
(L*W*H, mm) |
Fuel Cons. |
Prime
KVA |
Prime
KW |
Standby
KVA |
standby
KW |
YANGDONG | GODLIKE | KGS | Silent type | (lir/hr) |
| 1 | GDYD11*S | 11 | 9 | 13 | 10 | YD380D | JDG164B | 613 | 1800*850*1112 | 3 |
| 2 | GDYD13*S | 13 | 10 | 14 | 11 | YD385D | JDG164C | 624.5 | 1800*850*1112 | 3.36 |
| 3 | GDYD16*S | 16 | 13 | 18 | 14 | YD480D | JDG164D | 670 | 2000*950*1150 | 3.39 |
| 4 | GDYD19*S | 19 | 16 | 21 | 17 | YND485D | JDG184E | 747 | 2000*950*1150 | 4.7 |
| 5 | GDYD24*S | 24 | 19 | 26 | 21 | YSD490D | JDG184E | 706 | 2100*1000*1250 | 6 |
| 6 | GDYD28*S | 28 | 22 | 30 | 24 | Y490D | JDG184F | 736 | 2100*1000*1250 | 9 |
| 7 | GDYD31*S | 31 | 25 | 34 | 27 | Y495D | JDG184G | / | 2100*1000*1250 | 9.8 |
| 8 | GDYD34*S | 34 | 27 | 38 | 30 | Y4100D | JDG184H | 748.4 | 2300*1000*1250 | 10.2 |
| 9 | GDYD38*S | 38 | 30 | 41 | 33 | Y4102D | JDG184H | 938 | 2300*1000*1250 | 11.4 |
| 10 | GDYD44*S | 44 | 35 | 48 | 38 | Y4105D | JDG184J | 968 | 2300*1000*1250 | 13.2 |
| 11 | GDYD55*S | 55 | 44 | 60 | 48 | Y4102ZLD | JDG224ES | / | / | / |
| 12 | GDYD63*S | 63 | 50 | 69 | 55 | Y4105ZLD | JDG224E | / | / | /
|
