| Prod Model: |
GDD250*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
100% Famous Material |
| Engine: |
Deutz Brand, Cummis, Perkins, Volvo Is Optiona; |
| Alternator: |
Stamford, Marathon, Engga |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
CE, ISO Approved Soundproof Type 200kw/ 250kVA Deutz Diesel Generator (GDD250*S)
Standard Silent Type Gensets
Specifications
1. noise performance is conforming to international standard 65-75dBA at 1m distance.
2. 3C good ventilation system and heat radiation handling can protect gensets working in any ambient temperature all the time.
3. base tank designed can assure gensets running continuously about 8-10hours.
4. newly developed noise-absorbing material adopted, and anti-damping between base fram and gensets body can further reduce noise.
5. with design of 3 doors and 1 observation windows.
6.Excellent engines and alternators featured with strong power,high torque,quick start,easy maintenance and operation.
7.Compact structure,small size,and longer service life.
8.The canopies are made of high quality steel and powder coated.The paint is highly endurable against erosion and scratch,and strongly rustproof.
9.The control panel,service doors and canopy board adopt waterproof design and effectively stop rain and dust intrusion.
10.All movable devices are fixed firmly,and therefore help reduce vibration.
General main specifications:
| Genset ' s Data |
| Genset Model | GDD250*S |
| Prime Power | 250KVA/200KW |
Standby Power |
275KVA/220KW |
Rated Voltage |
400/230V (Adjustble) |
Frequency |
50Hz |
Radiator |
50°C suitable for tropical weather |
Charge Alternator |
24V |
Dimension(L*W*H) (mm) |
2900*1200*2150 (Open genset ) |
Dimension(L*W*H) (mm) |
4270*1810*2540 (Silent genset) |
Net Weight (kg) |
2340KG/3500KG with canopy |
Base Fuel Tank Capacity |
Enough for Genset 8-10 Hours Continuous Running |
| Diesel Engine Data |
Brand |
Deutz |
Model |
BF6M1015C-LAG1A |
Governor Type |
Electrical |
Rotating Speed |
1500 rpm |
Engine Cooling Method |
Water-cooled |
Cylinder Nos. |
6 |
Fuel consumption |
35.41L/h @75% full load |
| Alternator Data |
Brand |
Leroy Somer / Stamford / Leroy Somer / Marathon / ENGG |
Model |
LSA46.2L6 |
Power Factor(COS Phi) |
0.8 |
Excite Type |
Brushless SHUNT |
Connecting Type |
3 Phase & 4 Wires |
Insulation Degree |
H |
Enclosure Degree |
IP23 |
AVR voltage regulation rate |
≤±0.5% |

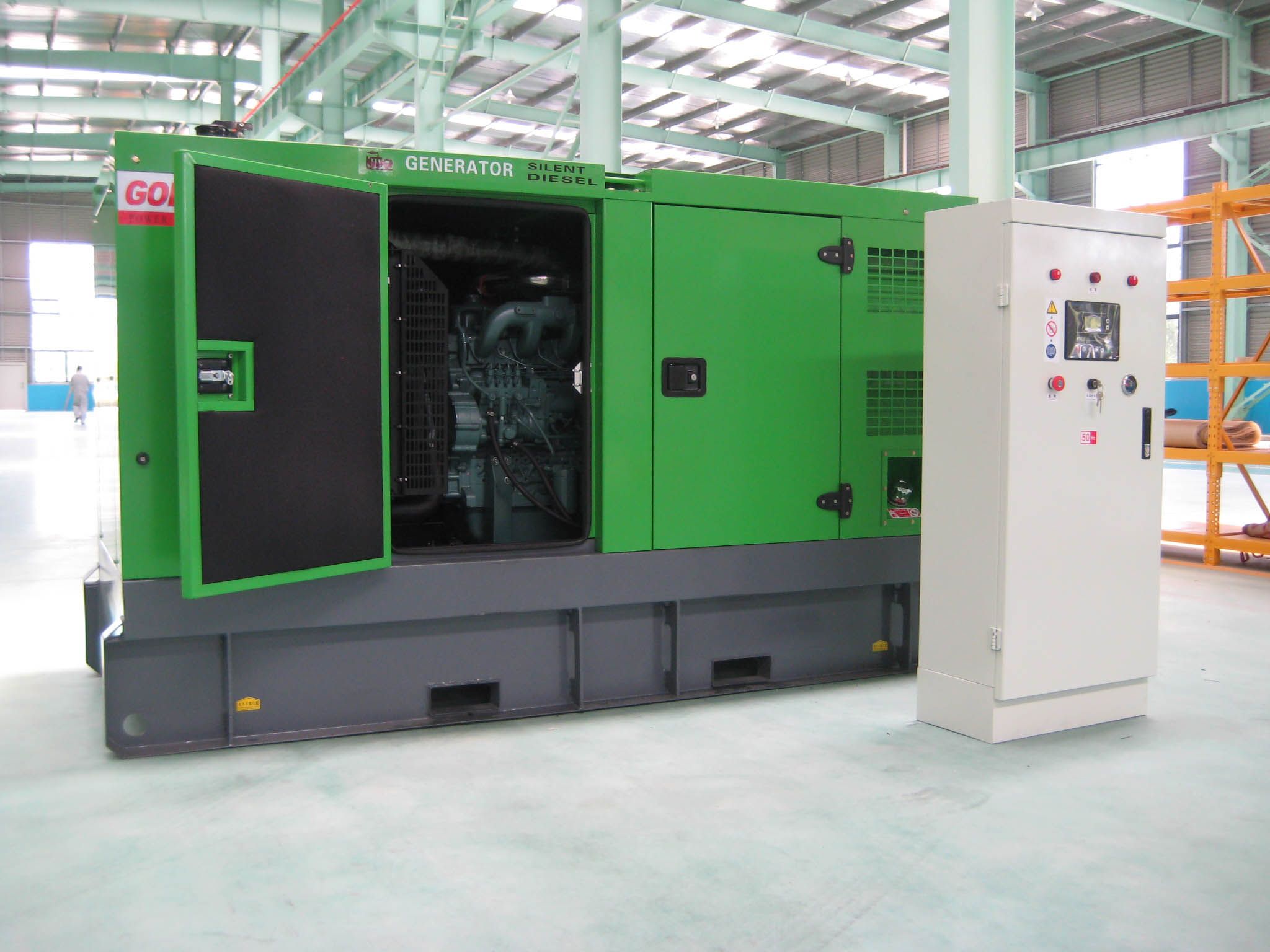

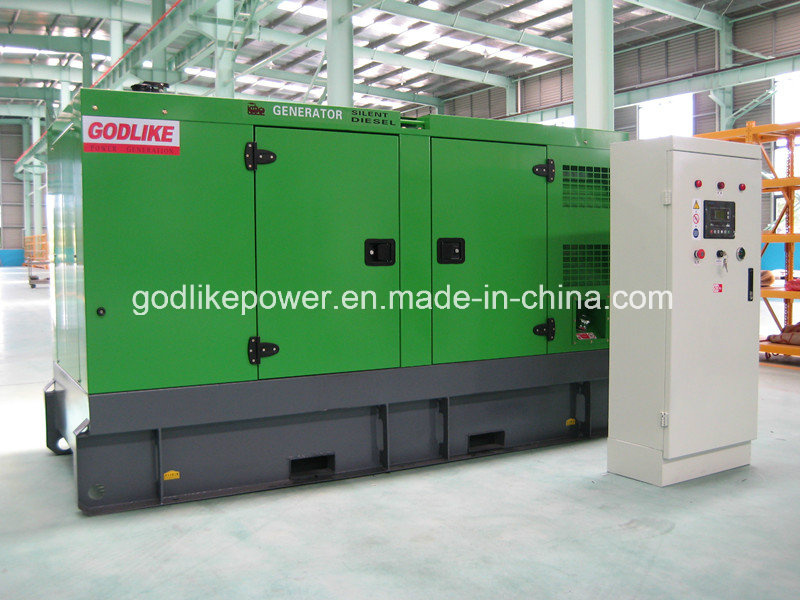

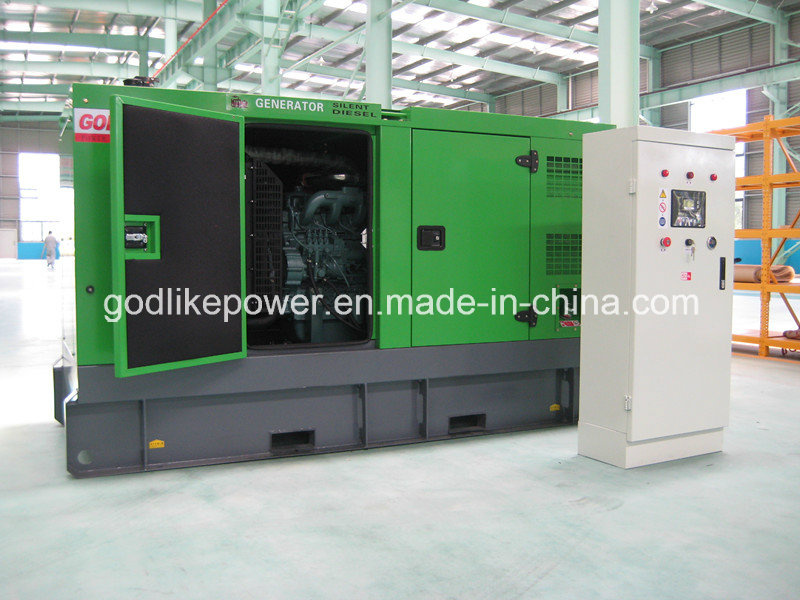

Generator photos:
