| Prod Model: |
H10.0-30KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator Type: |
Premanent Magnet Alternator |
| Generator Efficiency: |
>0.92 |
| Generator Weight(Kg): |
800 |
| Rated Power(W): |
30000 |
| Maximum Output Power(W): |
45000 |
| Start-up Wind Speed(M/S): |
2.5 |
| Rated Wind Speed(M/S): |
11 |
| Working Wind Speed(M/S): |
3-25 |
| Speed Regulation Method: |
Yawing+Electromagnetism Braking+Hydraulic Braking |
| Certificate: |
CE,UL, ISO |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Resistance |
| Phase: |
Three Phase |
Product Description

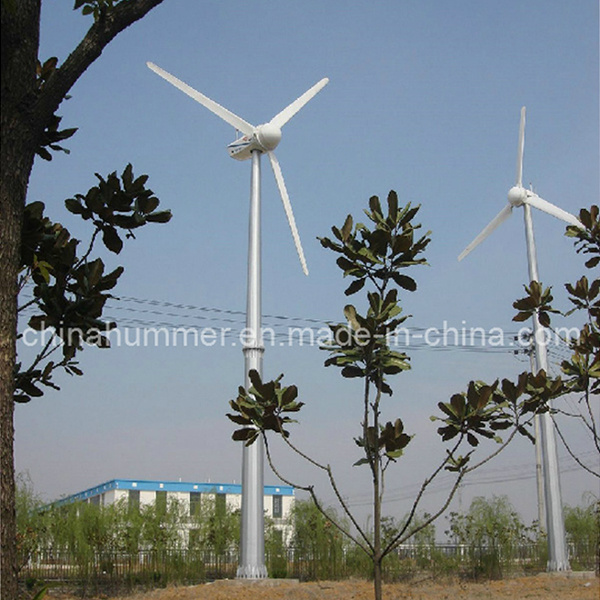

Hummer H10.0-30KW wind generator
Structure and component parts:
1. Generator Part
It is composed of the patented SCF generator, the nose cone, and the protection cover. Hummer adopts the state-of-the-art SCF supercritcial generator, which is installed in the hub, easy to radiate heat and reduce wind resistance.
2. Nose Cone & Protection Cover
Both of them are made of the reinforced aluminum alloy. Nose cone is fixed in front of the rotor blades to reduce the wind resistance and radiate the heat produced by the generator. While the protection cover between the rotor blades and the nose cone to provide extra protection to the generator.
3. NSK Bearings
The NSK bearings ensure the reliablity the longevity of our generator. And it can greatly reduce the maintenance costs.
4. Flange & Blades
The flange is made of fine steel, used to fix the blades to the rotor. The blades are made of glass reinforced plastic, efficiently turn the wind energy into the mechanical energy. Every set of the three blades has passed the strict balance test before the shipping.
5. Yaw Shaft
It is made of fine steel and used to connect the generator and the blades to the tower. Powered with a 24V motor and integrated with a gear box, which are able to regulate the direction of the generator.
6. Dogvane & Anemometer
They receive the signals of the wind direction and the wind speed.
7. Off-grid Inverter & On-grid Inverter
Hummer off-grid inverter adopts SPWM technology, is able to invert DC with higer efficiency into AC with stable frequency and voltage, filters the noise as well.
Hummer on-grid inverter adopts MPPT technology and IGBT, is able to invert DC with a high power producing capacity and a wider AC voltage output range.
8. Siemens Module PLC
Hummer PLC adopts the Siemens controlling module and is equiped with a touch screen. It can alarm and adjust the abnormal running status of the wind turbine automatically. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
9. Rectifier/Dump Load Controller & Dump Load Box
The controller controls the process of which the alternative current produced by wind turbine into direct current and eventually charges the battery bank with DC.
Metal box design of the dump load radiates the heat of the resistance inside quickly via the air convection. So there is no need for an extra fan.
| Power Output of Hummer 30KW Wind Generator at Different Wind Speed |
| Wind speed(m/s) | Wind speed(mph) | Power Output(Watts) | Annual Power Output(KWh) |
| 3 | 6.7 | 700 | 6,132 |
| 4 | 8.9 | 1,900 | 16,644 |
| 5 | 11.1 | 4,500 | 39,420 |
| 6 | 13.4 | 7,600 | 66,576 |
| 7 | 15.6 | 10,500 | 91,980 |
| 8 | 17.8 | 14,000 | 122,640 |
| 9 | 20.1 | 18,800 | 164,688 |
| 10 | 22.3 | 24,000 | 210,240 |
| 11 | 24.6 | 30,000 | 262,800 |
| 12 | 26.8 | 35,000 | 306,600 |
| 13 | 29.0 | 39,000 | 341,640 |
| 14 | 31.3 | 43,000 | 376,680 |
| 15 | 33.5 | 45,000 | 394,200 |
| 16 | 35.7 | 43,000 | 376,680 |
| 17 | 38.0 | 40,000 | 350,400 |
| 18 | 40.2 | 37,000 | 324,120 |
| 19 | 42.5 | 33,500 | 293,460 |
| 20 | 44.7 | 29,900 | 261,924 |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
