| Prod Model: |
GDC19*S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Cummins Brand, Perkins, Mtu, Deutz Is Optional |
| Alternator: |
Stamford, Marathon, Engga |
| Wire: |
100% Pure Copper Wire |
| Test Load: |
25%, 50%, 75%, 100%, 110% |
| Function: |
ATS/Amf, Synchronised Panel |
| Frequency: |
50Hz/60Hz Is Optional |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

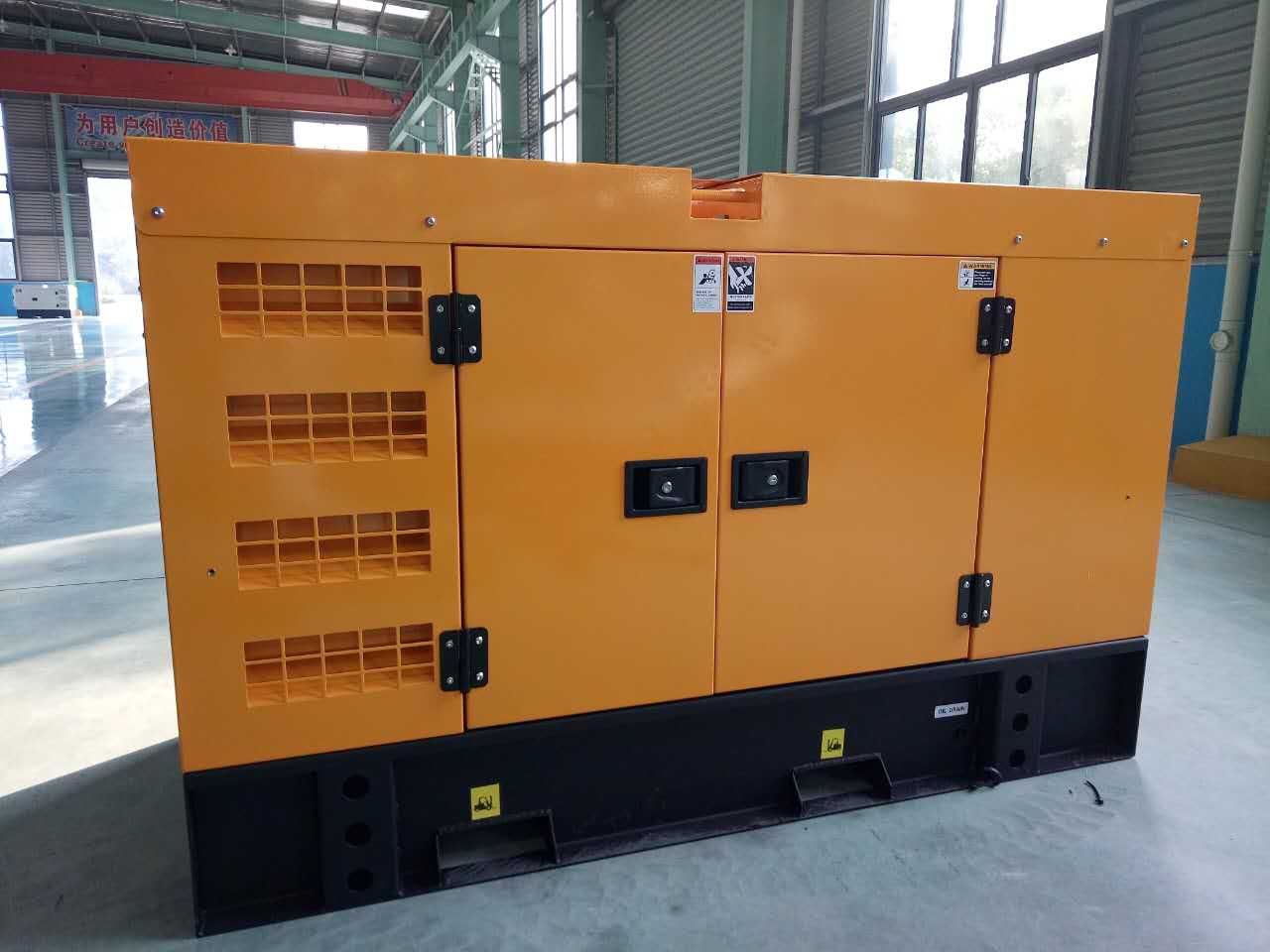

CE Approved Factory Silent 19kVA/15kw Diesel Generator Price (GDC19*S)
Specifications
1) Power range: 19kVA /15kW
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
| Model | | GDC19*S |
| Rated Frequency | HZ | 50 | 60 |
| Rated output | KVA | 15 | 16 |
| Max. output | KVA | 16 | 17 |
| Rated voltage | V | 115/230 | 120/240 |
| Rated current | A | 130/62.5 | 133/66.7 |
| Rated rotation speed | r/min | 1500 | 1800 |
| Motor type | | 184E |
| Pole number | | 4 |
| circuits way | | Single three circuits |
| Excitation mode | | self-excitation and constant voltage(AVR) |
| Power factor | cos θ | 1 |
| Insulation grade | | H |
| Engine Model | | C490 |
| Engine tyoe | | 4-sylinder,direct injection,4-stroke |
| Cylinder NO.-bore×stroke | mm | 88x90 |
| Displacement | L | 2.19 |
| Compression ratio | | 18.2:1 |
| Rated power | kw | 16.4 | 19.6 |
| Cooling water capacity | L | 2.29 |
| Radiator Water capacity | L | 3.7 |
| Lubrication system | | Pressure splashed |
| Lube oil brand | | SAE10W-30,15W-40 |
| Starting system | | 12V electric starter 12V |
| Starting motor capacity | V-kw | 12V | 1.4kw |
| Charging generator capacity | (V-A) | 14V | 20A |
| Battery capacity | (V-Ah) | 12V | 65Ah |
| Fuel type | | 0#(summer)-10#(winter)-20#(chillness)diesel |
| Fuel consumption | g/KW@h | <340 |
| Panel Type | | General panel |
| Output | Voltage V | 115/230 | 120/240 |
| Receptacle | Two single phase receptacles | |
| Connection pole | With |
| Noise level(7m) | | 53 |
| Structure type | | Super silent |
| Fuel tank capacity | L | 65 |
| Contionous running time | h | 10 | 9 |
| Overall dimension:L×W×H | mm | 1570×780×1050 |
| Dry weight | kg | 720 |
| We reserve the right to modify the parameter information. |
