| Prod Model: |
TMS 160-200CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
150~250KW |
| Airfilter: |
toolbox |
| Marathon Alternator: |
Stamford Alternator |
| Speed: |
1500/1800 rpm |
| Frequency: |
50 /60Hz |
| Brand Name: |
SDEC |
| Rated Current: |
270-450 amps |
| Rated Voltage: |
230 / 400 |
Product Description

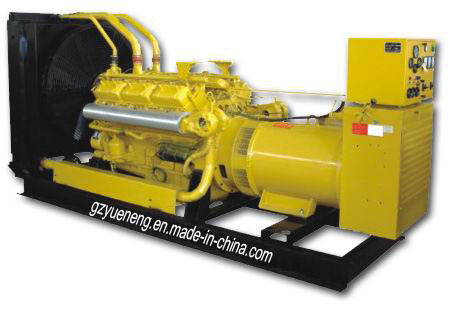

CAT Generator Set 150~250KW (TMS 160-200CT)
150-250kW generator sets which adopts the American CAT 121 series diesel engine, equipped with some famous brushless excitation alternators(Marathon, Stamford, etc. ) and control panels.
The diesel generator set has auto protective device, it can control and protect the water temperature, oil temperature, oil pressure, and the speed.
It has many advantages such as automatic speed regulation, automatic voltage regulation, good dynamic performance, stable fluctuation form of voltage, high efficiency, excellent reliability, long service life, etc.
The machine can be combined as power station group with automatic starting units and ATS, etc. With the customer's request.
Genset
Model | Engine
Model | Alternator
Model | Power Output | Cylinders |
Bore x Stroke (mm) | Fuel Consumption
(L/h) | Lubricant Capability
(L) | Dimension
(mm) | Net Weight
(kg) |
| 50Hz | L | W | H |
| kW | kVA |
| TMS-160CT | C6121ZLD01 | MP-160-4 | 160 | 200 | 6 | 121x150 | <41 | 40 | 2722 | 800 | 1500 | 2045 |
| TMS-180CT | C6121ZLD11 | MP-180-4 | 180 | 225 | 6 | 121x150 | <47 | 40 | 2800 | 800 | 1500 | 2200 |
| TMS-200CT | C6121ZLD12 | MP-200-4 | 200 | 250 | 6 | 121X150 | <52 | 40 | 2950 | 1220 | 1500 | 2200 |
