Head:
6.0-15m
Discharge:
46.1-97.8 M3/S
Power:
3400-10650 Kw
Regulation Work:
7000-18000 Kgm
Size:
Medium &Small
Bearing Support:
Thin Oil Lubrication Cylindrical or Split Type
Product Description

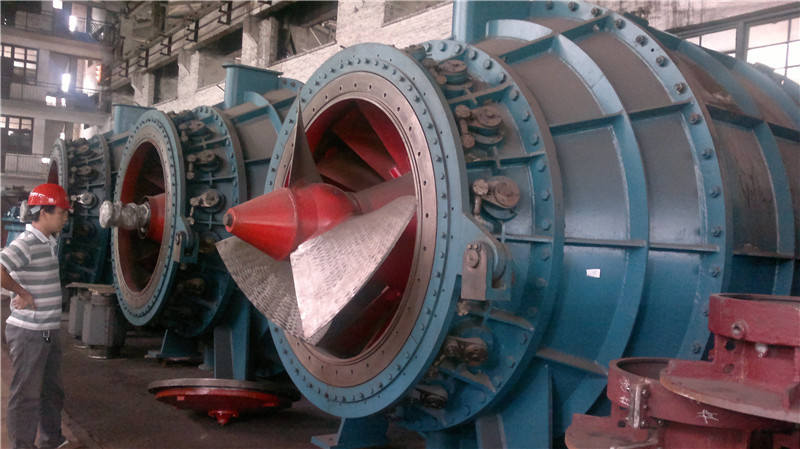

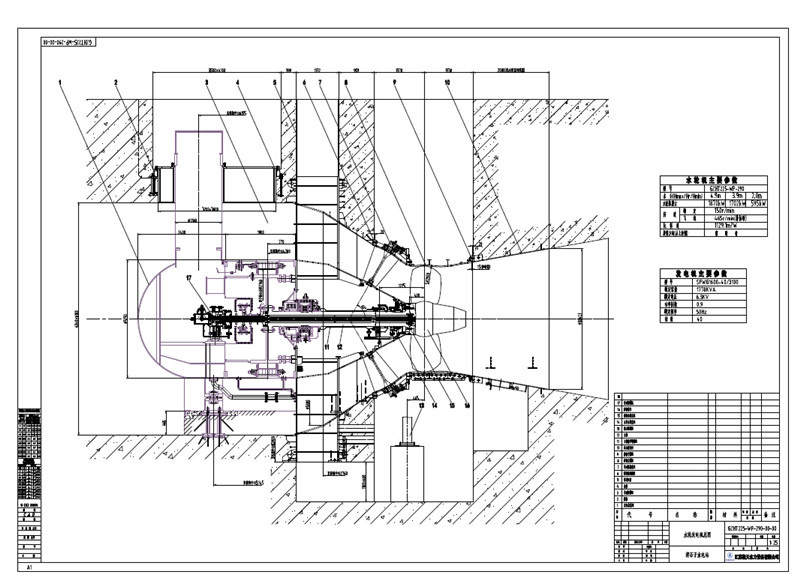

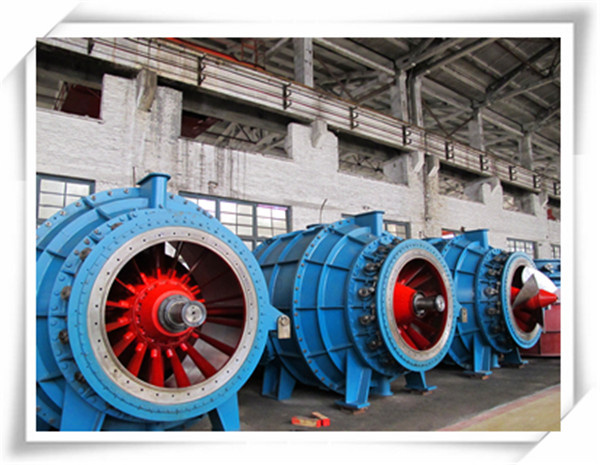

Bulb turbine is one kind of units that fits for low-head and middle-large-Capacityconditions. The unit has high efficiency and compact structure. We can provide the turbine units with diameter of runner≥3m.
Bulb type turbine reference
Governor
Transmission
Type
Head(m)
Discharge (m3/s)
Speed(rpm)
Power(kW)
Regulation Work (kgm)
1250a
GZ1250a-WP-300
3.0-10
39.6-80.84
136.36-187.5
1319-5297
5000-12000
Directly coupling
GZ1250a-WP-330
3.0-10
46.5-101.2
115.4-150
1699-6745
5500-15000
Directly coupling
GZ1250a-WP-350
3.0-10
58.6-113
107.1-150
2140-7506
7000-18000
Directly coupling
GZ1250a-WP-370
3.0-10
69.5-128.5
100-150
2663-8489
8500-21000
Directly coupling
GZ1250a-WP-410
3.0-10
68.5-156.2
100-136.4
3399-10584
12000-26000
Directly coupling
GZ1250a-WP-450
3.0-10
111.2-1899
88.2-125
4238-12955
15000-33000
Directly coupling
995
GZ995-WP-300
6.0-15
46.1-97.8
150-214.3
3400-10650
7000-18000
Directly coupling
GZ995-WP-330
6.0-15
57.8-122
150-187.5
4264-13242
10000-23000
Directly coupling
GZ995-WP-350
6.0-15
72.5-142
125-187.5
5348-16020
12000-29000
Directly coupling
GZ995-WP-370
6.0-15
92.4-151
125-166.7
6744-17035
16000-31000
Directly coupling
GZ995-WP-410
6.0-15
110-188
115.4-166.7
8576-21209
20000-40000
Directly coupling
GZ995-WP-450
6.0-15
137.3-230.9
107.1-150
10705-26049
26000-52000
Directly coupling
GZ995-WP-600
6.0-15
150-298
60-125
12500-36000
32000-65000
Directly coupling
Jiangsu Aerospace Hydraulic Equipments Co., Ltd. (formerly State-owned Gaoyou Water Pump Factory), a state grade II enterprise and the state high-tech enterprise, is the professional manufacturer of large-scale water pump and hydro turbine unit, designated by the former ministry of machinery industry; And a key enterprise of Jiangsu province machinery industry. Now it becomes the enterprise under the No. 6 Institute of China Aerospace Science and Technology Group, with strong supports of the application technology of aerospace fluid technology and materials. Our company is the domestic large production base with the first class comprehensive ability for design and manufacturing of medium and large pump, hydro-equipments.
The main products of the company: Medium-sized and large series axial flow pump and mixed flow pump (full adjustable, semi-regulation); Medium and large series of axial flow, mixed flow, tubular Hydro Generating Units; Open series centrifugal pump, mixed flow pump, the mobile pumping station and other industrial, municipal pumps.
The company covers an area of 20 hectares, has the modern industrial workshops of 45, 000 square meters, equipped with large-scale manufacturing and CNC processing center at the leading position among the same field in China. The Company has Hydraulic Machinery Research Institute and the hydraulic test center, for research and developing on high quality complete sets of hydraulic machinery. The quality system passed the ISO9002 international quality certification. The company has is qualified of import and export business. Large scale pump and turbine generator units, has received the awards of the National Science Conference, the pump research award of the National South-North Water Diversion Project, and national and provincial science and technology progress awards.
The company is located in Economic Development Zone of Gaoyou City, Jiangsu Province, China, close to the Beijing-Shanghai Expressway, Beijing- Shanghai High-speed Railway, Yangzhou Airports, the traffic is convenient. Warmly welcome friends from home and abroad to visit and instruct us.
