Product Description

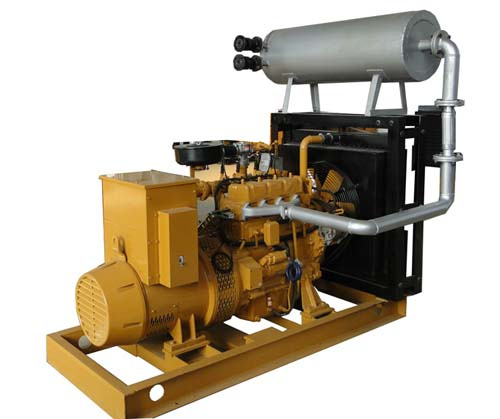

Biomass Genset Details :
Model Number (Engine Type)
LH-12v135
LH-6190
LH-12v190
LH-12v190T
Brand Name
LVHUAN
LVHUAN
LVHUAN
LVHUAN
Prime power/Standby power
100-200KVA
200-350KVA
350-400KVA
450-600KVA
Rated Speed
1500r/min
1000r/min
1000r/min
1000r/min
Rated Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
Rated Voltage
400V/230V
400V/230V
400V/230V
400V/230V
Phase
AC 3-Phase, 4 wire
AC 3-Phase, 4 wire
AC 3-Phase, 4 wire
AC 3-Phase, 4 wire
Voltage Stability
≤±2%
≤±2%
≤±2%
≤±2%
Voltage transient
≤±10%
≤±10%
≤±10%
≤±10%
Voltage Stable time
≤1
≤1
≤1
≤1
Heat consumption
≤9.8mj/kw.h
≤9.8mj/kw.h
≤9.8mj/kw.h
≤9.8mj/kw.h
Lubricant consumption
≤1.63g/kw.h
≤1.63g/kw.h
≤1.63g/kw.h
≤1.63g/kw.h
Engine Capacity
25.8 L
32 L
71.4 L
71.4 L
Cylinder Number
12v
6
12v
12v
Cylinder Bore
135mm
190mm
190mm
190mm
Stroke
150mm
210mm
210mm
210mm
Starting System
DC 24V electic motor
DC 24V electic motor
DC 24V electic motor
DC 24V electic motor
Cooling method
water cooler
water cooler
water cooler
water cooler
Lubricant method
Passive and flying lubricant
Passive and flying lubricant
Passive and flying lubricant
Passive and flying lubricant
Isolation class
H
H
H
H
Protection
IP23
IP23
IP23
IP23
Alternator
ENGGA
Siemens
Siemens
Siemens
Power Factor
0.8 lagging
0.8 lagging
0.8 lagging
0.8 lagging
Exciting method
brushless
brushless
brushless
brushless
Certificates
ISO 9001:2008, CE
ISO 9001:2008, CE
ISO 9001:2008, CE
ISO 9001:2008, CE
Warranty
1 year or 1500 running hours
1 year or 1500 running hours
1 year or 1500 running hours
1 year or 1500 running hours
